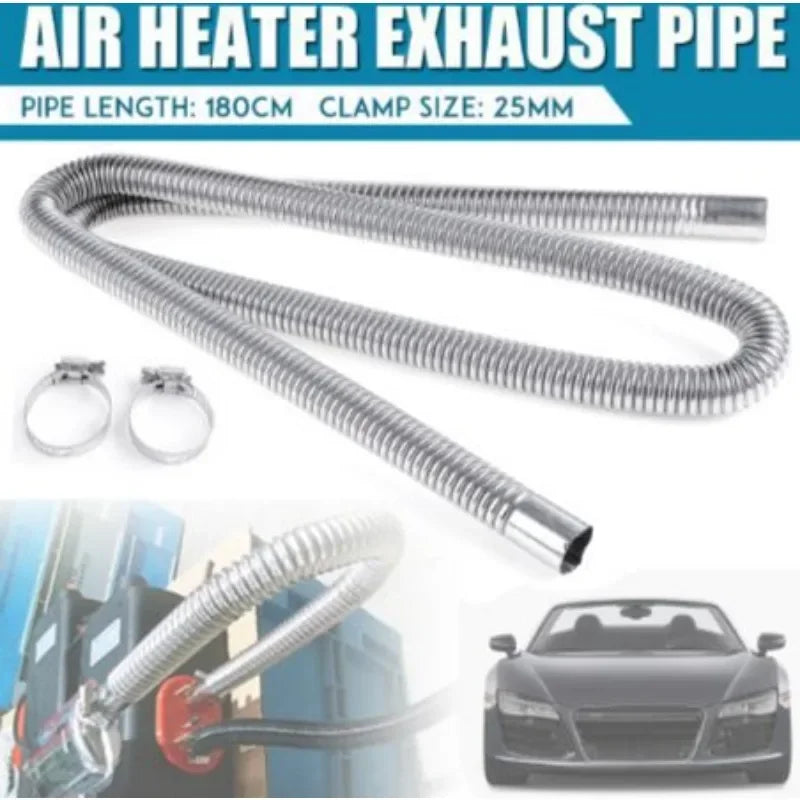

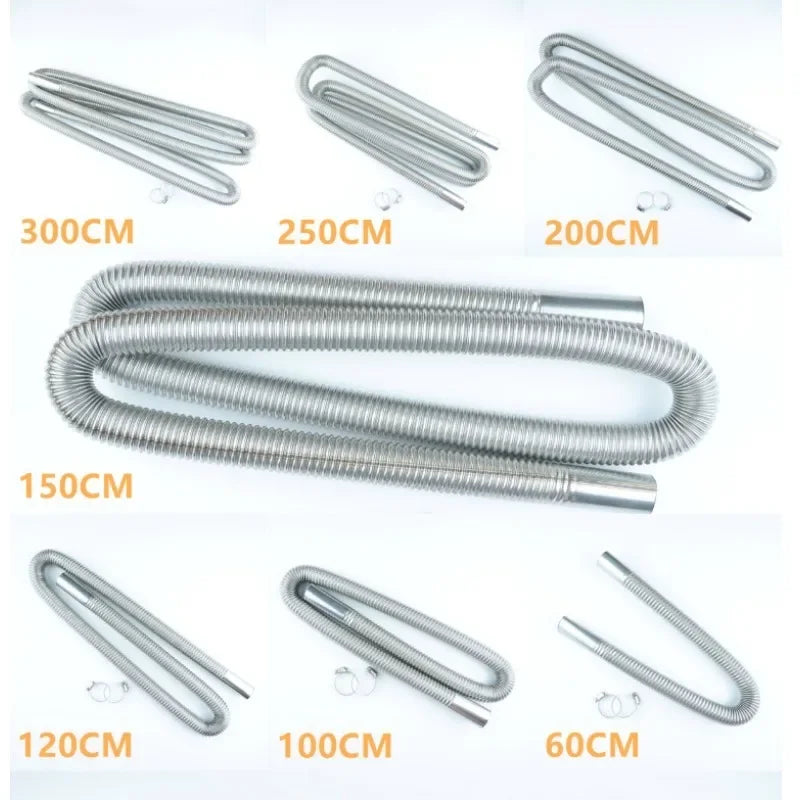

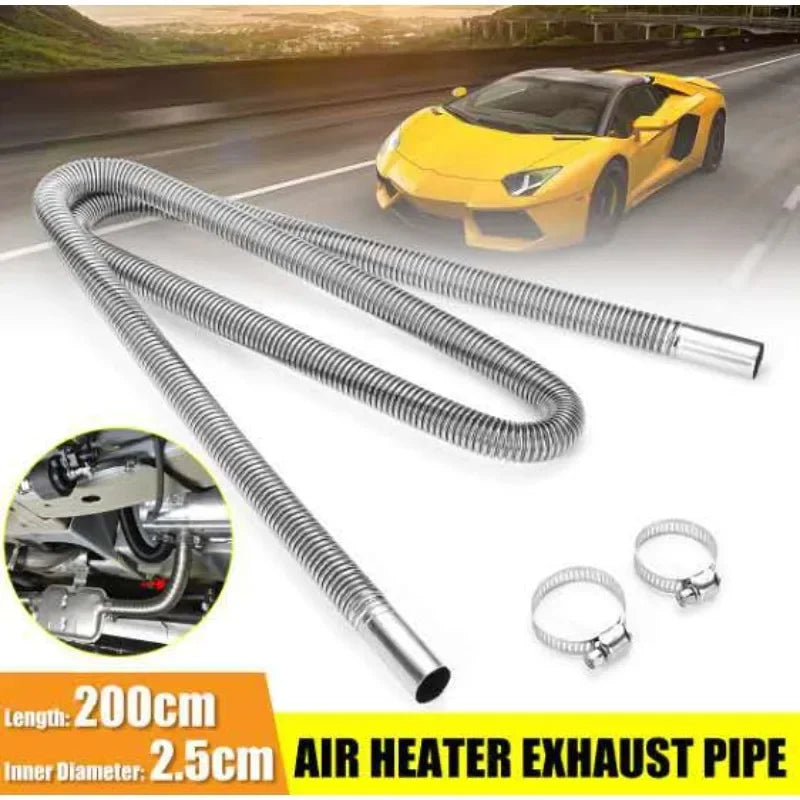

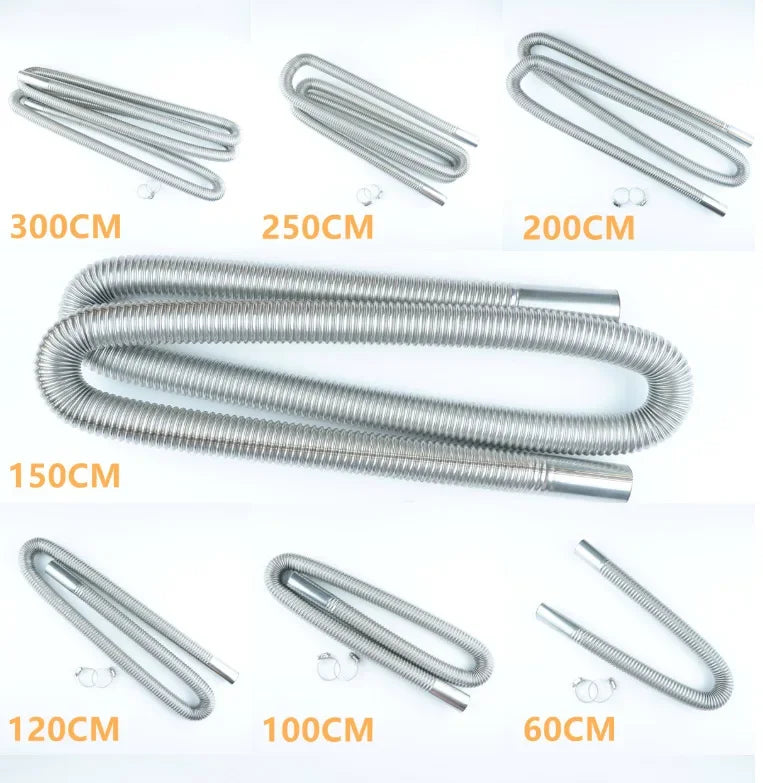

installation instruction:
Installation location
Use the four screws on the heater guide to fix the heater to the underside of the vehicle or the outer wall of the vehicle. When installing the heater, pay attention to leaving enough operating space for the air inlet hole and removing the ignition plug and controller.
Installation location in truck
In trucks, heaters are mainly installed in the cab. If it cannot be installed in the cab, the heater can also be installed in the tool box or loading box. (1. The heater is located at the passenger's footrest ⒉. The heater is located on the rear wall of the cab 3. The heater is located under the driver's seat backrest 4. The heater is located in the tool box)
Installation location in sedan/large sedan
In sedans/large sedans, the heater is mainly installed in the passenger compartment or trunk of the vehicle. If it cannot be installed in the passenger compartment or trunk, the heater can also be fixed under the vehicle floor, but attention should be paid to waterproofing splashes. (1. The heater is located in front of the passenger 2. The heater is located between the driver and the passenger 3. The heater is located under the floor 4. The heater is located under the rear seat 5. The heater is located in the trunk)
Installation location in RV
In an RV, the heater is mainly installed in the room or in the trunk. The heater can also be fixed to the underside of the vehicle, but it should be waterproof against splashes. (1. The heater is located in front of the passenger ⒉ The heater is located between the driver and the passenger 3. The heater is located under the bottom 4. The heater is located under the cargo container 5. The heater is located in the trunk)
Installation angle and fixation
Permissible mounting angles
Heaters should be installed at normal angles. Depending on the installation conditions, the heater can be installed tilted up to 30 degrees (flow direction downwards) or rotated around its long axis up to 90 degrees (exhaust pipe positioned horizontally, ignition bay upwards).
Assembling and fixing
Make the holes for exhaust gas, combustion air and fuel oil pipes according to the holes in the mounting plate.
The surface on which the heater feet are placed must be flat. (1. Be sure to leave enough space between the heater and the bottom of the vehicle, and check whether the ventilation wheel operates freely ⒉ The assembly surface must be flat 3. The sealing gasket must be equipped 4. The vehicle wall must be flat)
