SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: None

Origin: Mainland China

Theory: Optical Sensor

Description:

This switch with PIR Infrared Motion sensor detector, can be used in corridors, bathrooms, basements, warehouses, garages and other places to achieve automatic control functions. High and stable sensitivity, effectively save energy and money for you.

Features:

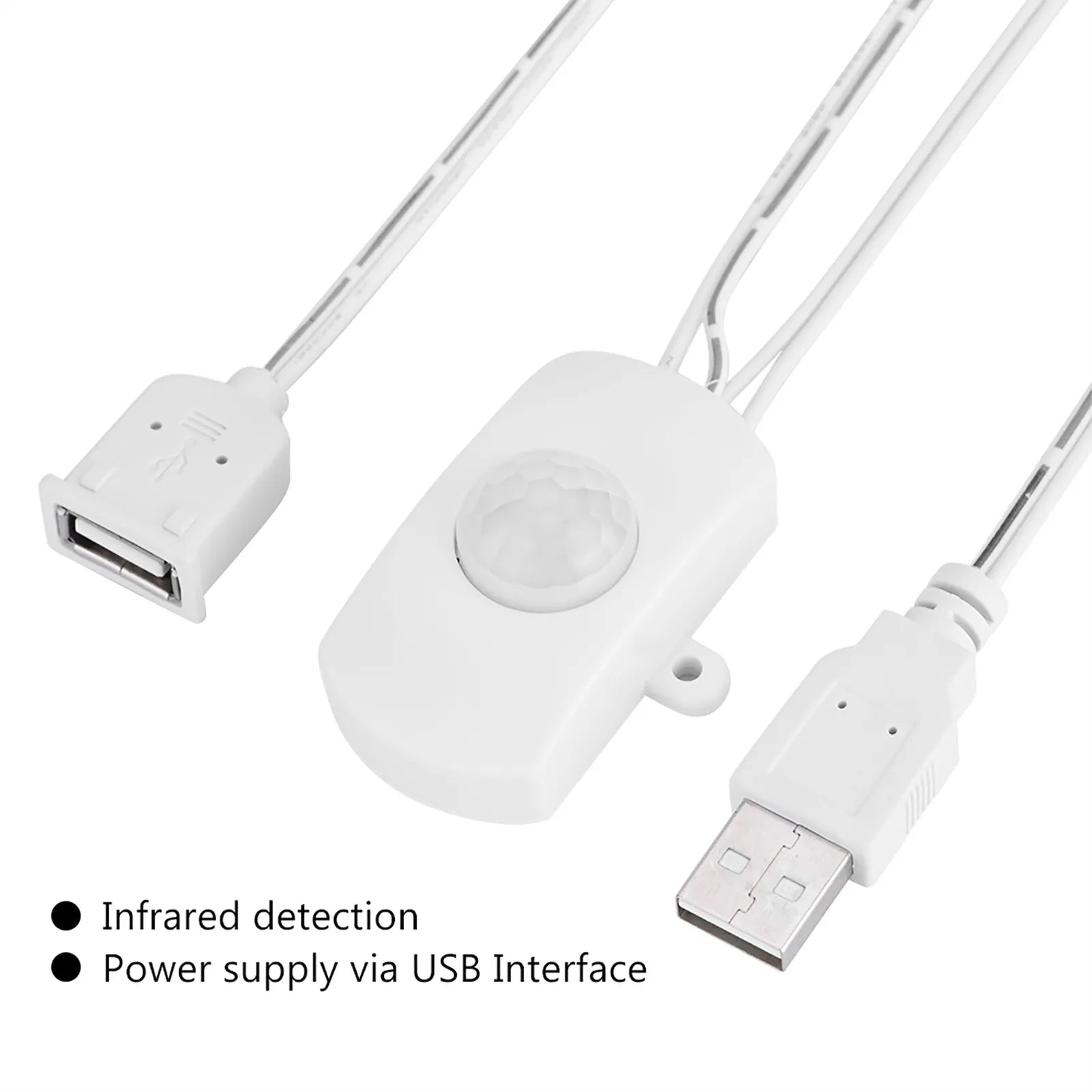

· With PIR motion sensor, it can detect human movement by detecting infrared ray emitted by human body.

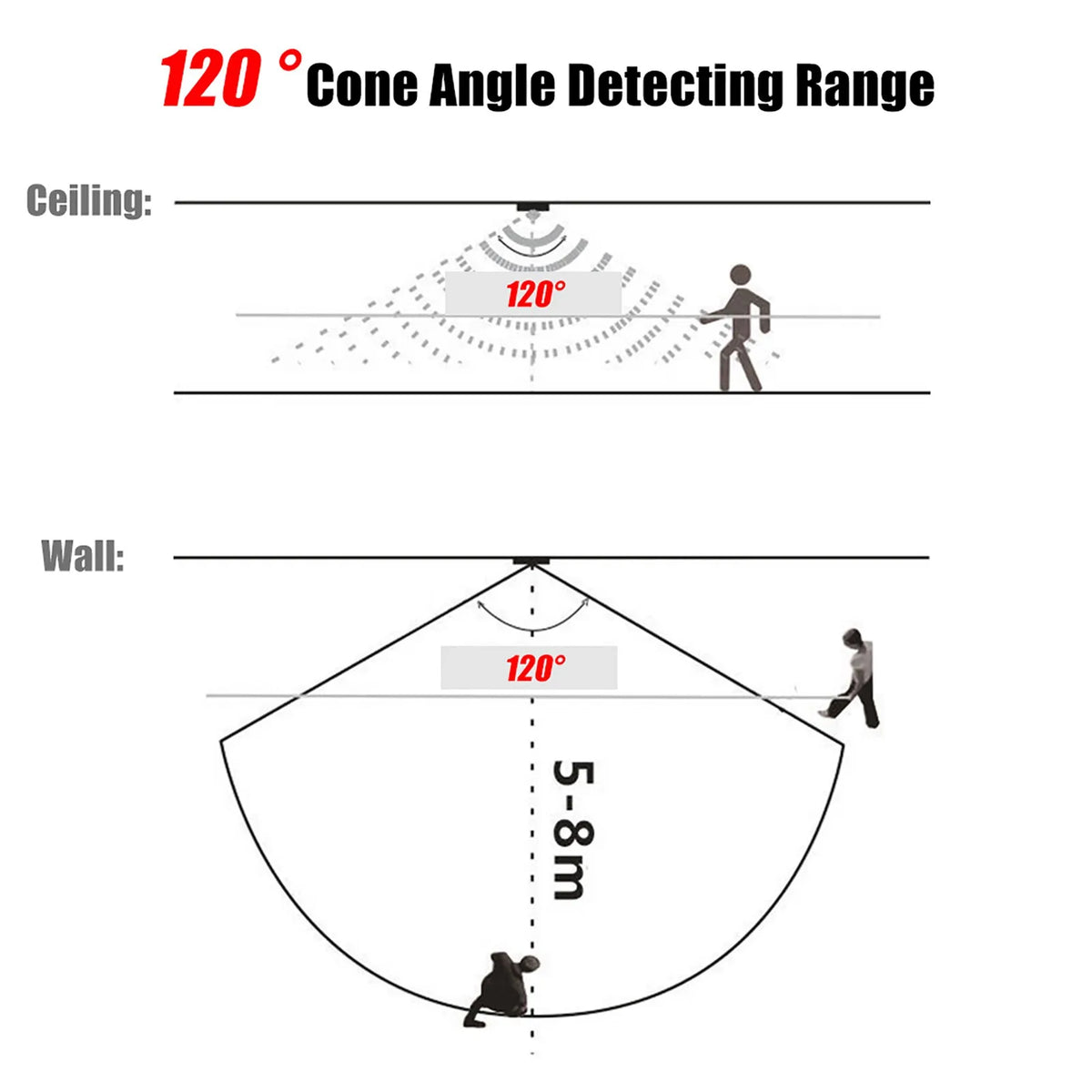

· 120 degrees cone angle detecting range. High and stable sensitivity, effectively save energy and improve efficiency.

· Intelligent sensing, it will automatically delay to shut down after the person leaves.

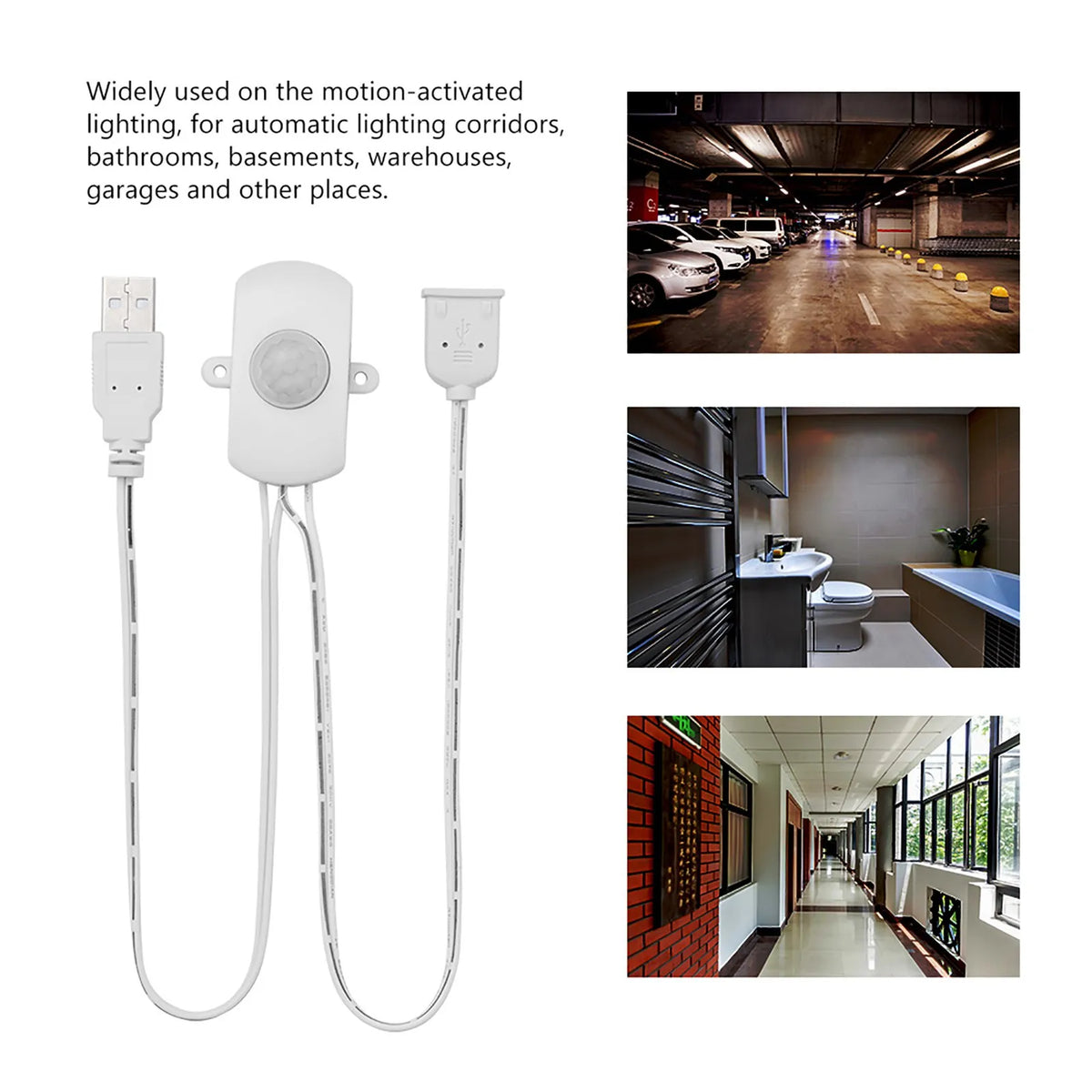

· Widely used on the motion-activated lighting, for automatic lighting corridors, bathrooms, basements, warehouses,garages and other places.

· USB port make it convenient and simple to standby. Power supply via mobile phone, charging bank or other devices with USB port, Output voltage is equal to input voltage, low power consumption.

· Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.

Specifications:

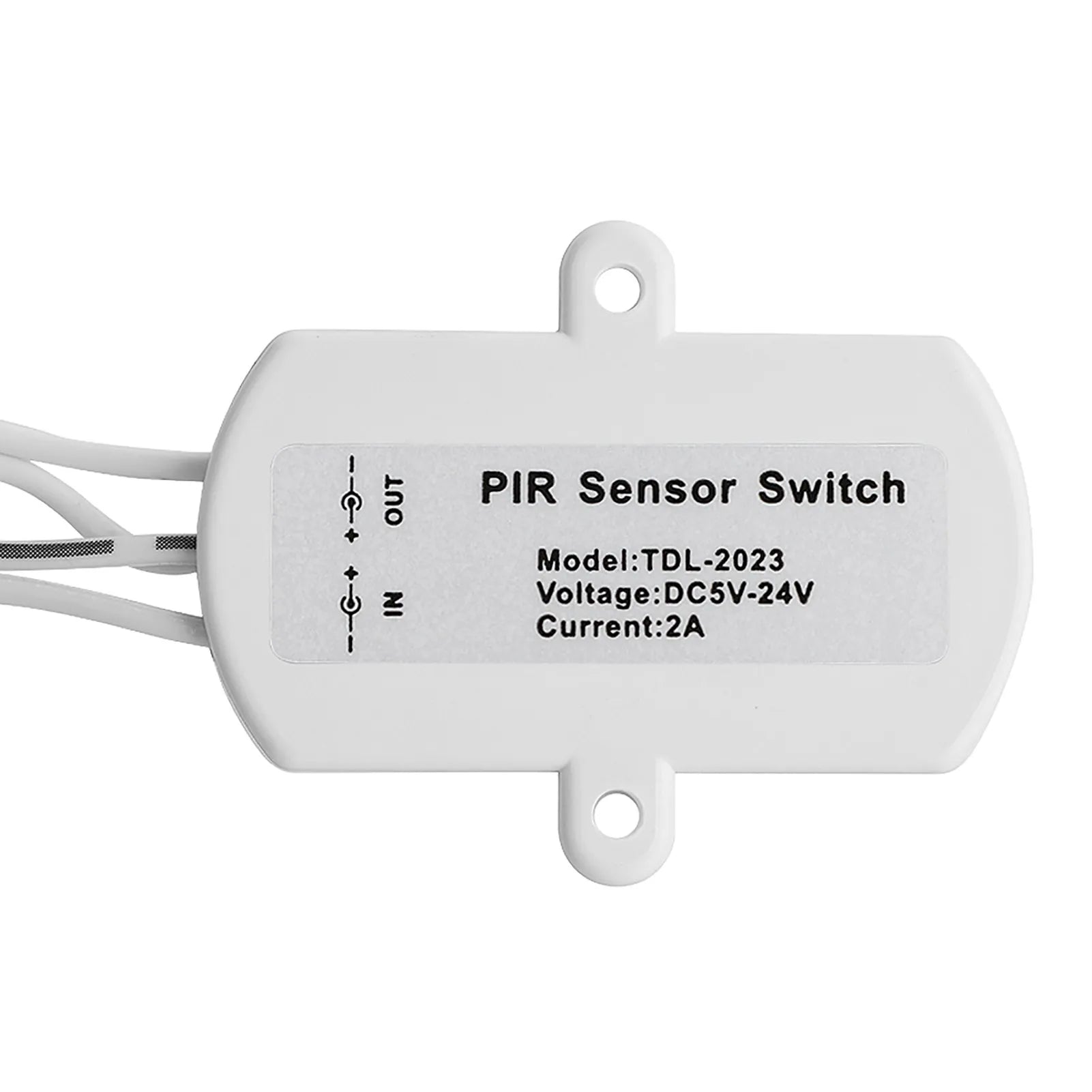

Operating voltage: 5V-24 DC

Output current: 2A

Working temperature: -15°C~38°C

Function: Infrared human body sensor switch

Quiescent current: <50uA

Trigger mode: Continuous trigger

Output Mode: Inductive Output

Sensing distance: 5-7m

Sensing angle: 120 degrees

Induction mode: Passive

Time Range: Default setting 15s, Adjustable

Product size: Approx. 5 x 2.6 x 2.2cm/1.97 x 1.02 x 0.87inch

Power supply: by mobile phone charging, by charging bank, by computer, by notebook

Color: Black, White (Optional)

Package List:

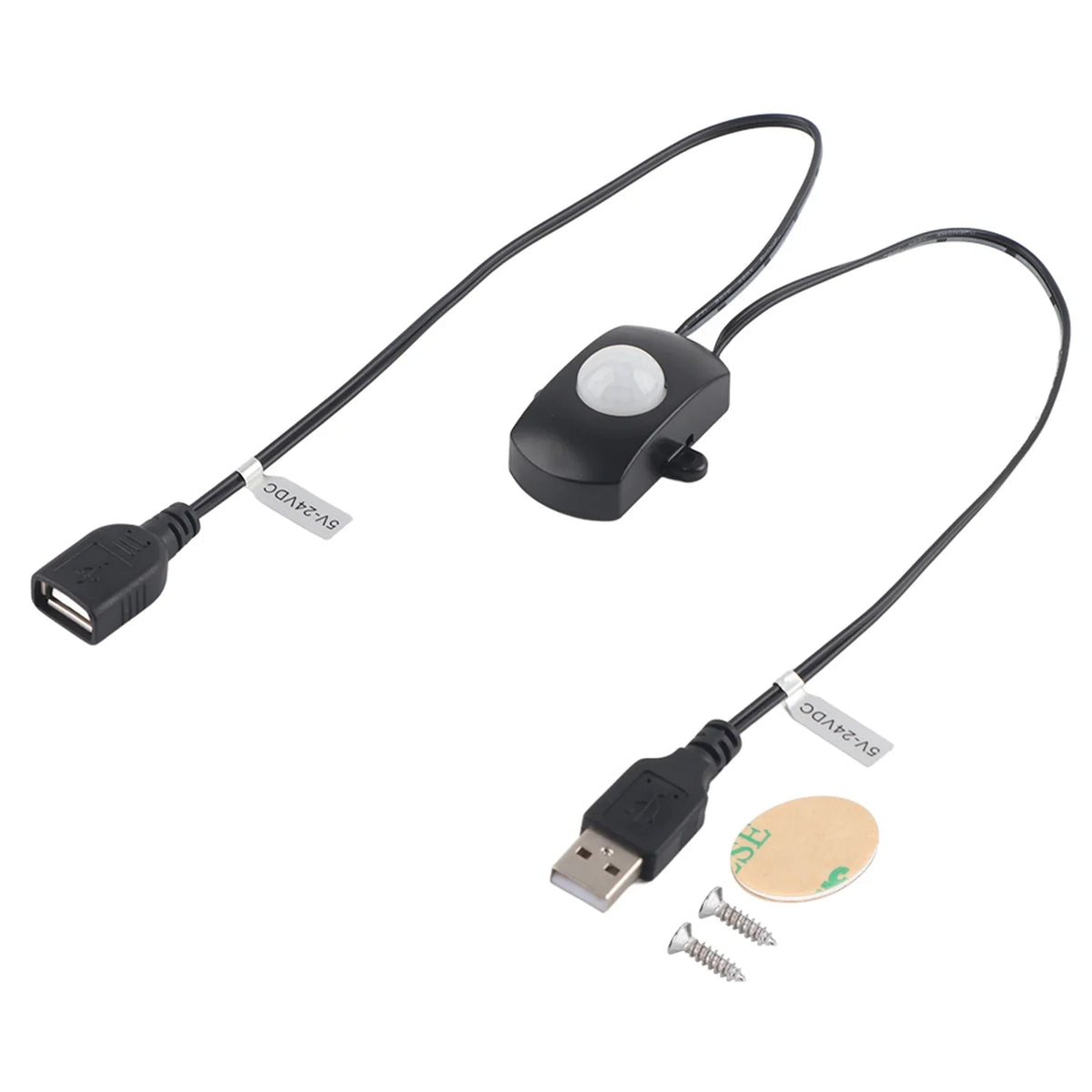

1 x PIR Motion Sensor Switch

1 x Screws

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
