80kg Payload Automatic 4WD Wheeled Robot Delivery Vehicle, Unmanned UGV Platform for Autonomous Logistics

$33,154.00

SPECIFICATIONS

After Warranty Service: Online Video Technical Support

Application: Developable Moblie Platform

Brand Name: NONE

Certification: CE

Color: Customized Color

Dimensions: Sludge Cleaning Robot

Material: Aluminum Alloy

Model: UGV-8

Model Number: Dredging Robot

Origin: Mainland China

Packing: wooden case

Payload: 80kg

Place of Origin: China

Product name: wheeled robot car chassis unmanned inspection vehicle UGV-5

Speed: 5km/h

Warranty: 1 Year

Weight: Underwater Dredging Robot

is_customized: Yes

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Rowan WhatsApp:+86 18711086945 Email:qianrui678@gmail.com

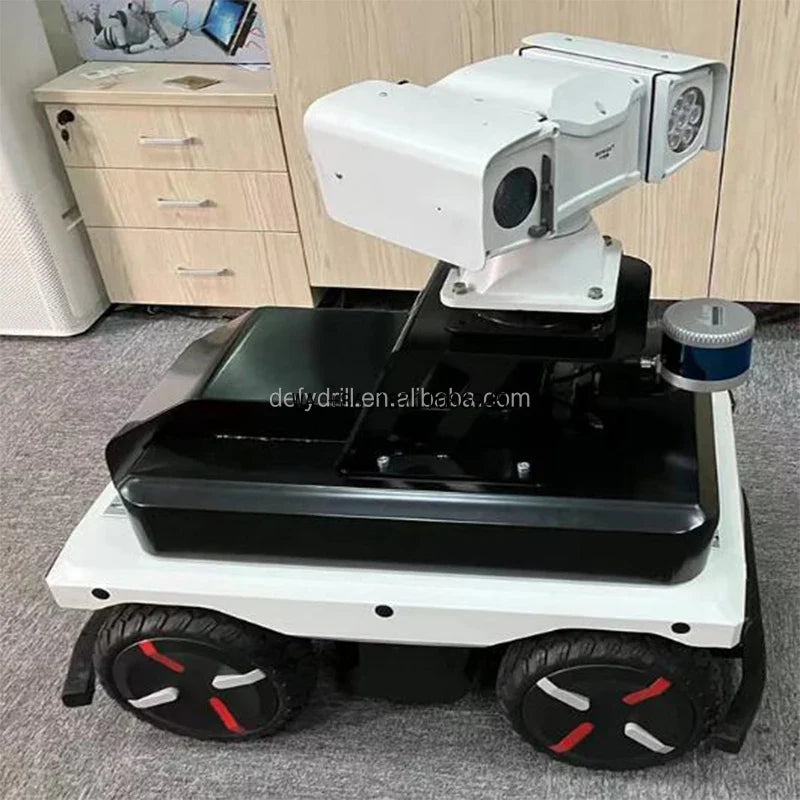

80kg payload cheap delivery robot AGV platform UGV wheeled robot with robot arm and PTZ

Product Description

1. Introduction:

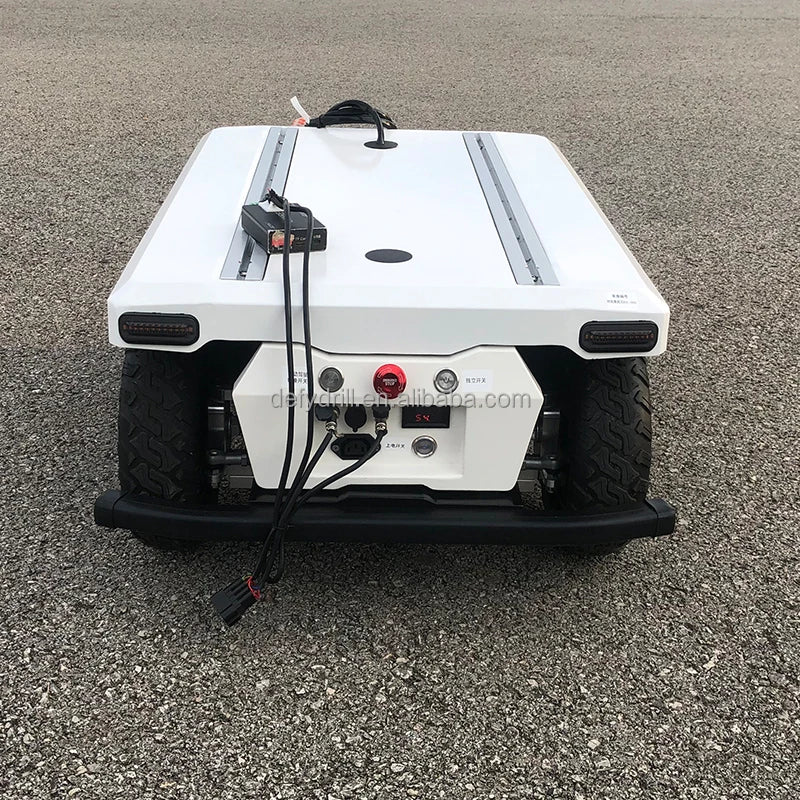

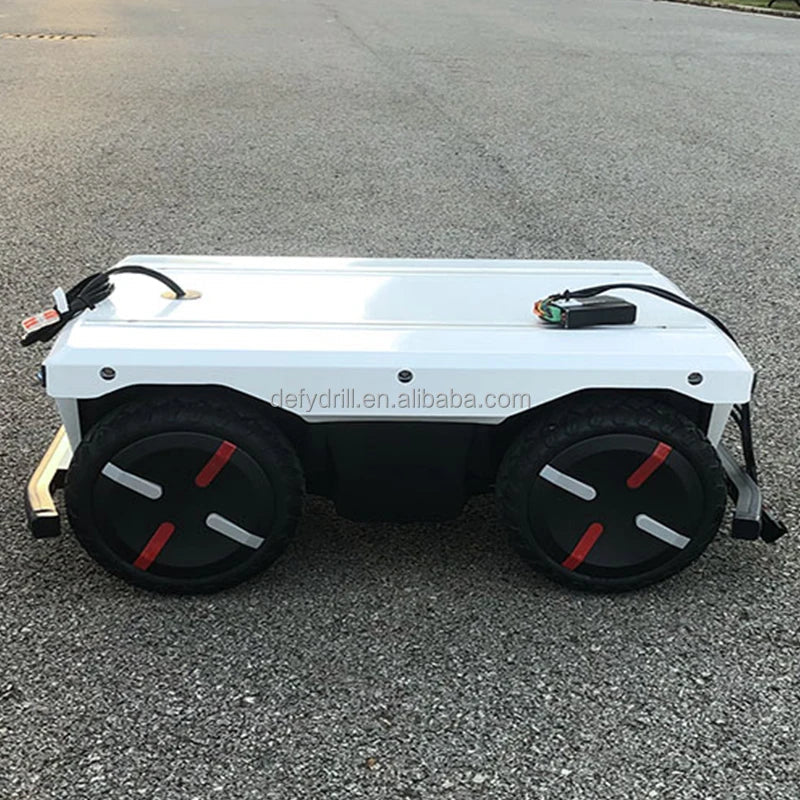

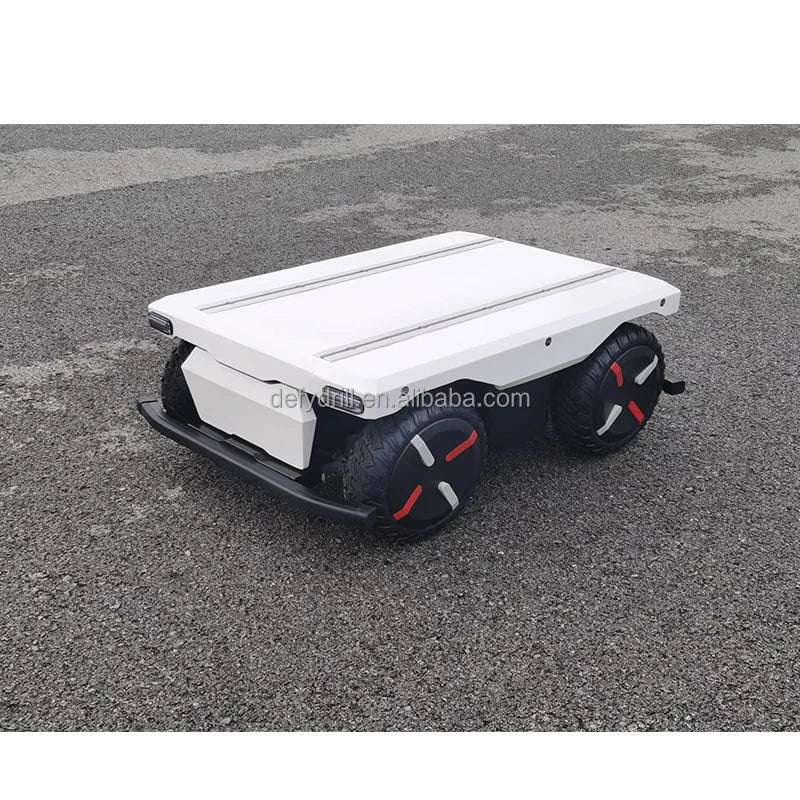

UGV-8 is a small robot chassis, using lightweight, modular, intelligent design concept to create a mobile robot development platform. It has strong load capacity, stable control performance, a wide range of applications, can be flexible movement on all kinds of typical pavement. Stereo , radar, GPS, IMU, manipulator and other equipment can choose to be installed on the chassis as an extension application, can be applied to scientific research, distribution, logistics and other fields.

2. Application:

1. Scientific research or education.

2. Food delivery vehicle.

3. Disinfecting robot

4. Unmanned service robot
5. Unmanned inspection vehicle

6. Advertising vehicle.

3. Advantage:

1. Simple and easy to operate.

2. High configuration core hardware.

3. The four 300W high power wheel hub motor enjoys independent driving of each wheel, so it is easily implemented by four-wheel drive.

4. Vehicle-grade drive by wire chassis control unit(VCU).

5. Electronic control logic design more suitable for autonomous driving needs.

6. Reading parameters, coordinating power output, intelligent body system.

4. Specification:

Specification of the Entire Vehicle
Item	Data
LWH	820572310mm
Min. Ground clearance	87mm
Overall weight	About 43kg
Rated load	80kg
Chassis and Performance
Item	Data
Steering	Front wheel Differential steering
Brake form	Anti-drag braking
Tire outer diameter	266mm
Running speed	≤5km/h
Driving range	5-10km
Braking distance	0.4m
Turning radius	0.5m
Climbing angle	≤15°
Obstacle passing	8cm
Safety protection	Touch stop bar; Emergency brake button
Electric drive
Item	Data
Motor type	Wheel hub motor (Permanent Magnet Synchronous Motor with encoder)
Motor Power	300W*4
Battery parameters	48V/20Ah battery
Battery working temperature	-10~60℃
Charger	AC220V independent charger
Charging time	≤3h (Quick charging can be customized)
Protection class	IP35 (IP66 can be customized)
Other
Communication protocol	Open underlying CAN protocol
Motion control	VCU control
Sensor type	Steering feedback sensor Walking wheel speed sensor Front and rear brake feedback sensor
