AEM Electronics X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge

Name: AEM Electronics X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge
Brand: FR SPORT
SKU: 173HV
Price: 299.95 USD
Availability: InStock

$299.95 $337.95

AEM ELECTRONICS 30-0334 - X-SERIES WIDEBAND UEGO AFR SENSOR CONTROLLER GAUGE WITH OBDII CONNECTIVITY
(Replaces part #30-0333)

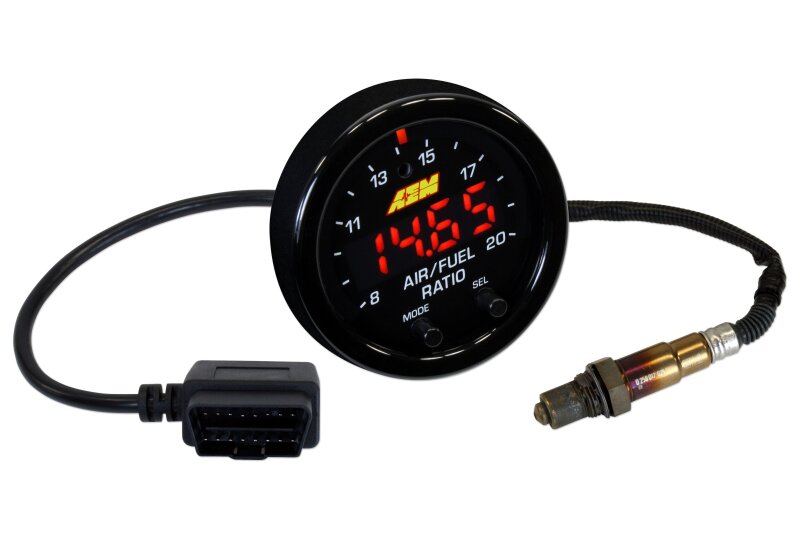

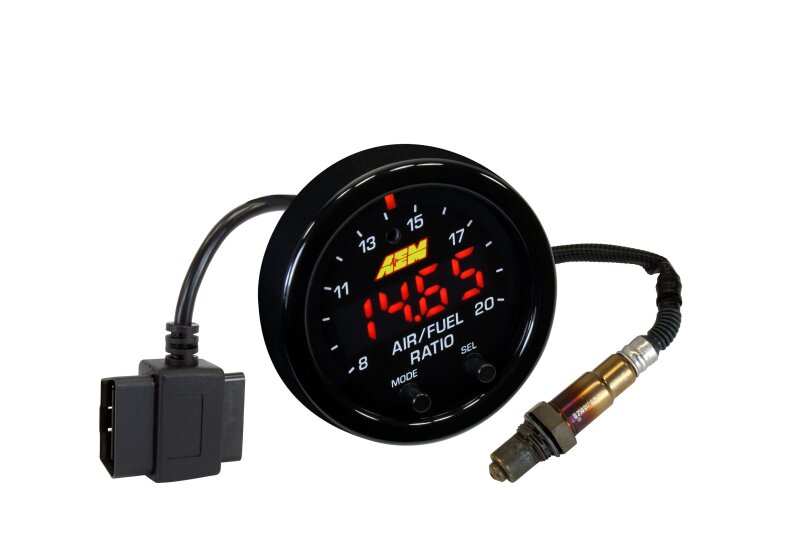

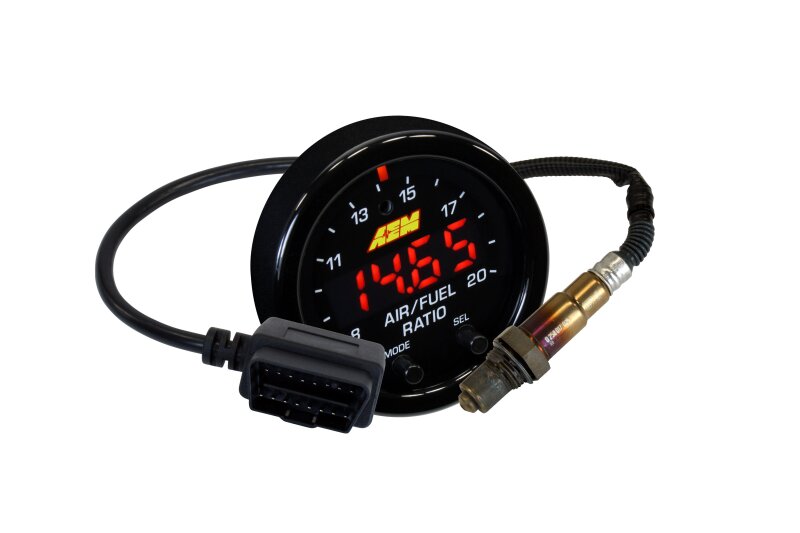

AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune. The 30-0334 X-Series OBDII Wideband Gauge is validated to work with EFILive, HPTuners and DashDaq software.

The X-Series Wideband AFR OBDII Gauge includes an OBDII pass-through connector and Bosch 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration. Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.

X-SERIES WIDEBAND UEGO CONTROLLER FEATURES:

Patented X-Digital Technology makes it the Fastest Responding Wideband AFR Controller (Patent # 9,575,030)

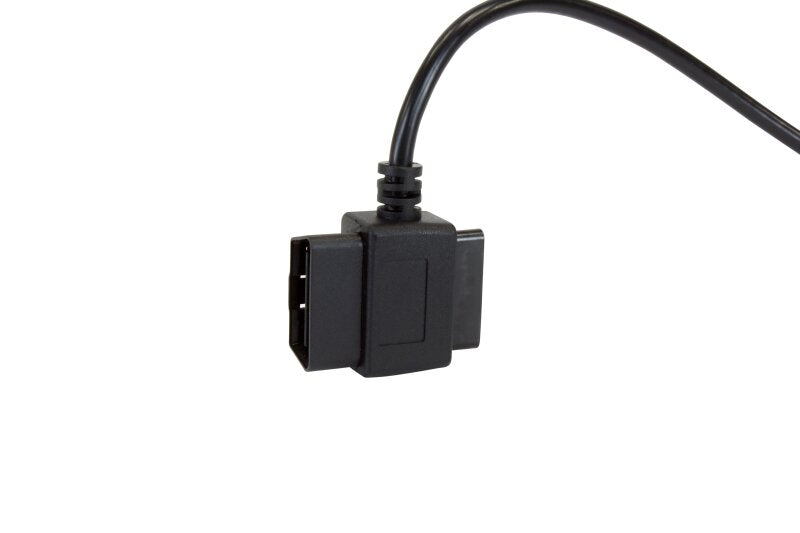

OBDII pass-through provides AFR readings through the factory ECU CAN-bus - Ideal for users with piggyback programmers or open source tuning software

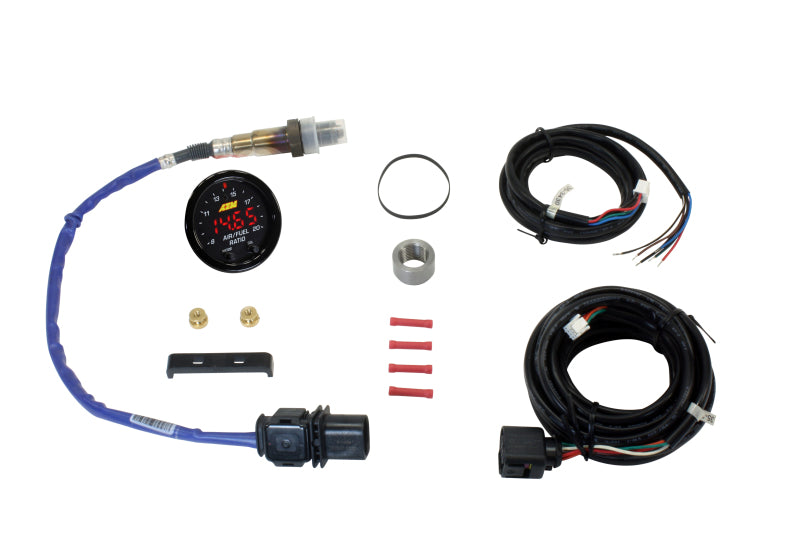

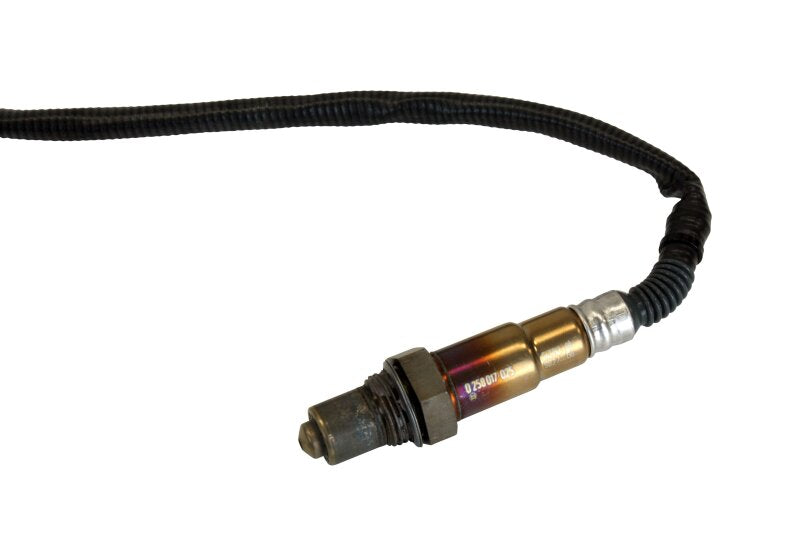

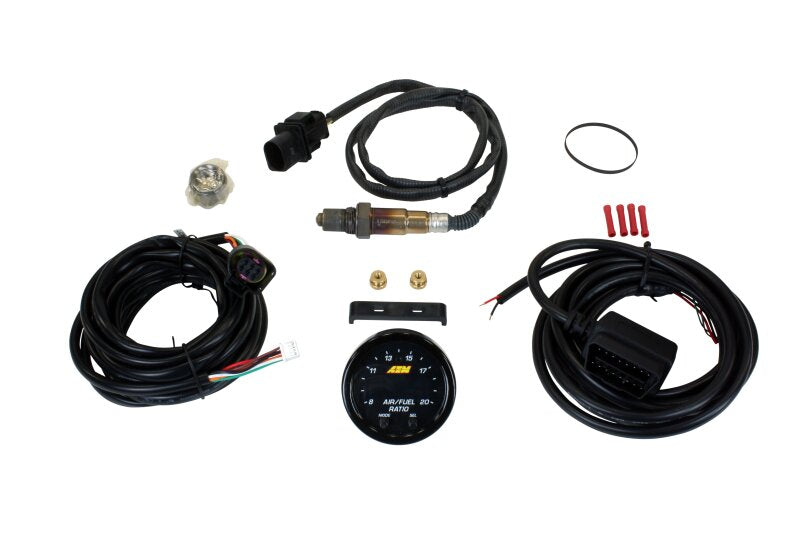

Includes Bosch 4.9LSU wideband UEGO sensor and OBDII pass-through connector
Use the factory 02 calibration or free-air calibrate using buttons on faceplate
Compatible with vehicle/system voltages up to 16V
Optional outputs for 0-5V & RS232 for data logging and feedback control (requires wiring)
Can display AFR values in hundredths of %

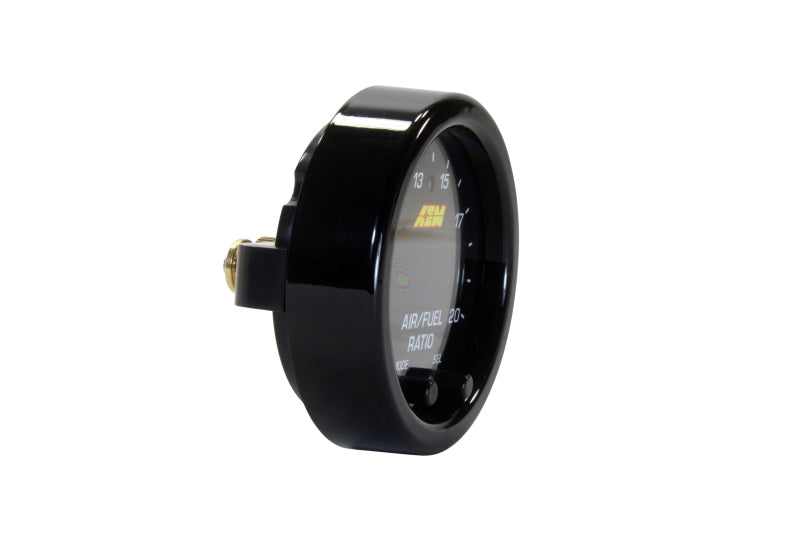

52mm gauge diameter and slim 0.825" gauge depth
Gauge cup depth only .200" deep!
Auto dimming feature

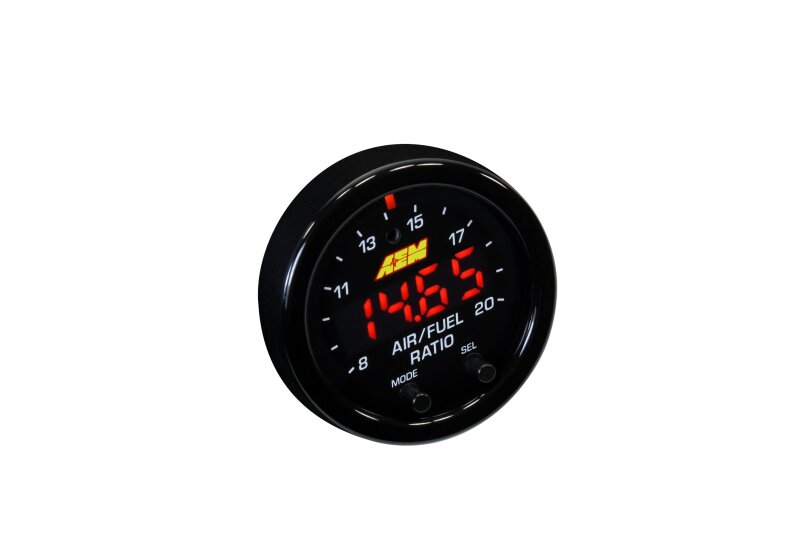

User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, 3- or 4-digit display and OBDII output settings (if necessary)
Black bezel and black dual faced faceplate included (silver bezel/white gauge option sold separately, PN 30-0300-ACC)

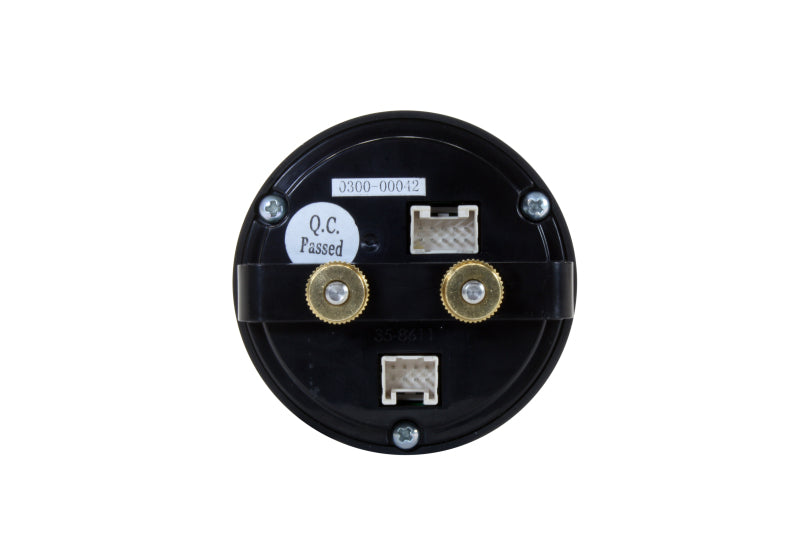

Locking connectors

AFR VALUE RANGE BY FUEL TYPES:

Display Gasoline values from 8.0:1 to 20.0:1 AFR
Display Lambda values from .55 to 2.00
OBDII Output Gasoline values from 8.0:1 to 20.0:1 AFR
OBDII Output Lambda values from .55 to 2.00
0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR (Requires Wiring)
0-5V Output Lambda values from .58 to 1.23 (Requires Wiring)
0-5V Output E85 values from 5.7:1 to 12.0:1 AFR (Requires Wiring)
0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR (Requires Wiring)
0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR (Requires Wiring)
