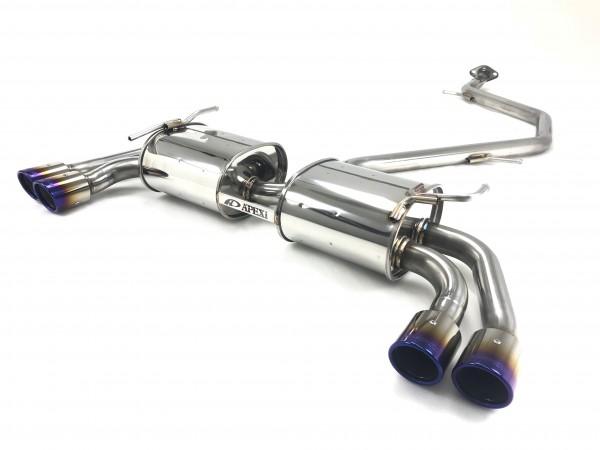

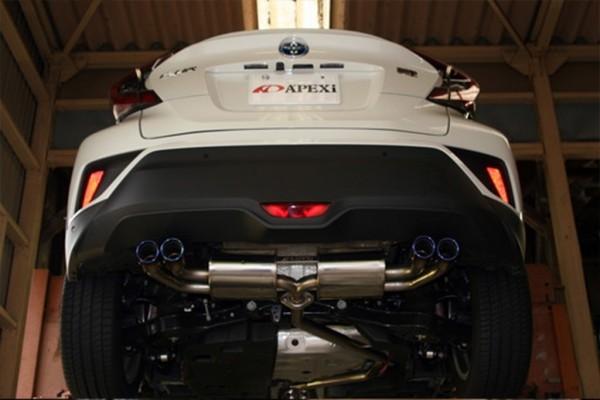

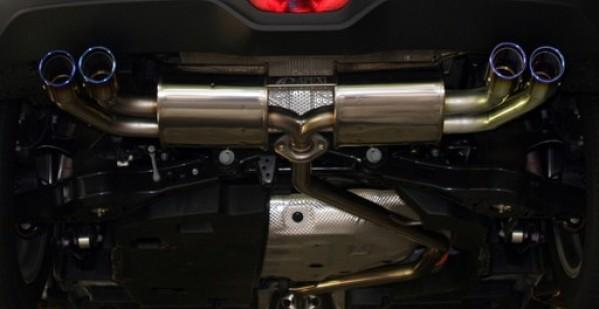

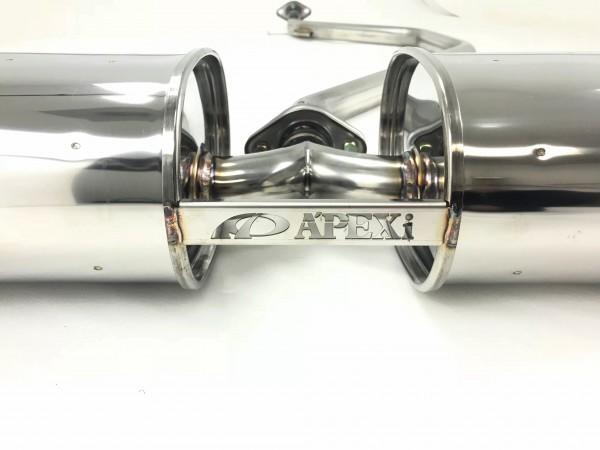

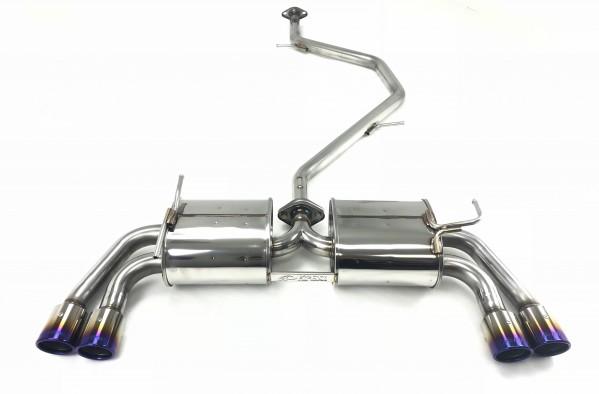

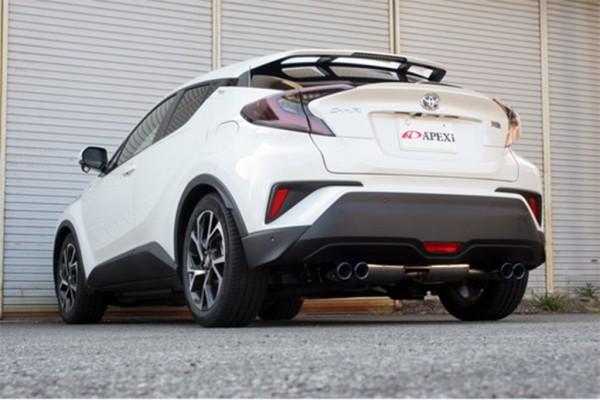

APEXi A'PEXi - N1 Evo Extreme (Catback) - 2018 Toyota C-HR

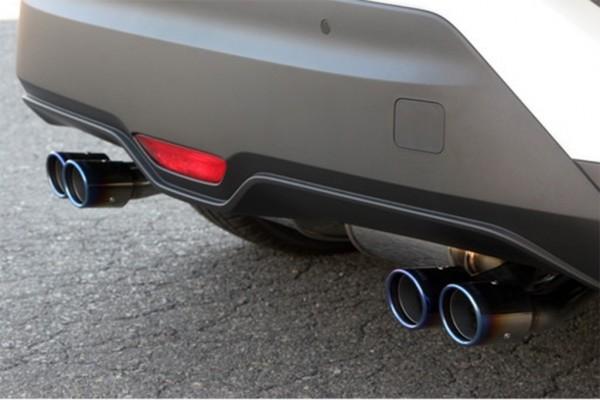

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.

PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results

Bolt-On	Yes
Part Number	164-T004J
Year	2018
Make	Toyota
Model	C-HR
Body Style	Subcompact Crossover SUV
Engine	3ZR-FAE
Chassis	ZYX10
Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	50mm. - 50mm. x 2 - 50mm. x 4
Tip Diameter	75mm. x 4
Pieces	2
Exhaust Tip Style	Titanium Round- Dual wall rolled, Angle cut (Riveted)
Piping Material	SUS304 Stainless Steel
Muffler Material	SUS304 Stainless Steel
Muffler Tip Material	Titanium
System Weight	31.75 lbs.
Special Notes	Package Dimension: 60" x 12" x 20", Package Weight: 45 lbs.
