SPECIFICATIONS
Angular accuracy: ±1°
Arm length: Other
Axle Spacing: As Request
Bag handle: Other
Battery life: ≥1500 recycle
Brand Name: NONE
Climbing capacity (full/empty): 5%/10%
Component Type: Laser, Camera, AGV Sensors, AGV controller
Condition: New
Conveyor Frame Type: Wheel
Headroom: Other
Hook Opening Size: Other
Included Wheels: Anti-slip spinner wheels
Lifting Mechanism: Electric
Machinery Test Report: Provided
Material: Carbon Steel, Industrial Plastic, High Quality Rubber
Max. Height: 250~300mm
Mobility Option: Other
Operating speed: 1.35 m/s
Origin: Mainland China
Overall Dimensions: 780*545*300(mm), 950*650*250, 1150*820*254, 1523*1150*327
Performance parameter navigation method: Laser SLAM has anti-fusion navigation
Place of Origin: Henan, China
Power: 48V/40Ah
Product Name: Knapsack AGV
Product Type: AGV Parcel Sorting Machine
Roller Width: As Request
Rotation diameter (no-load): 1060±20 mm
Secondary positioning accuracy: ±5 mm
Support Stand/table Type: Other
Table Size: Other
Tire Type: Pneumatic, Pu Foam, Solid
Voltage: AC 220 V
Walking accuracy: ±10 mm
Warranty: 1 Year
Weight (KG): 93~210
Wheel Type: As Request
Work Type: Piggyback
is_customized: Yes
PLEASE NOTE:
1.This is a custom-made item.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
4.please fell free contact us by email or whatsapp
email address : Mike012025@163.com
whatsapp:+8613838297783

|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
forward, backward, turning (rotation)
|
|
|
two-wheel differential type
|
|
|
6000~10000 parcels per hour
|
|
|
Synchronous friction drive/linear motor drive
|
|
|
|
|
|
Automatic/semi-automatic/manual direct entry
|
|
|
|
Performance parameter navigation method
|
Laser SLAM has anti-fusion navigation
|
|
|
|
|
|
|
|
|
|
Secondary positioning accuracy
|
|
Climbing capacity (full/empty)
|
|
Rotation diameter (no-load)
|
|
Operating space (no-load, single/dual channel): 900 mm/1650 mm
|
|
Battery performance Battery Type: Lithium Iron Phosphate
|
Laser SLAM has anti-fusion navigation
|
|
|
|
Charging method: Hand/automatic charging
|
|
Charging
direction: directly in front of the car body
|
|
|
|
|

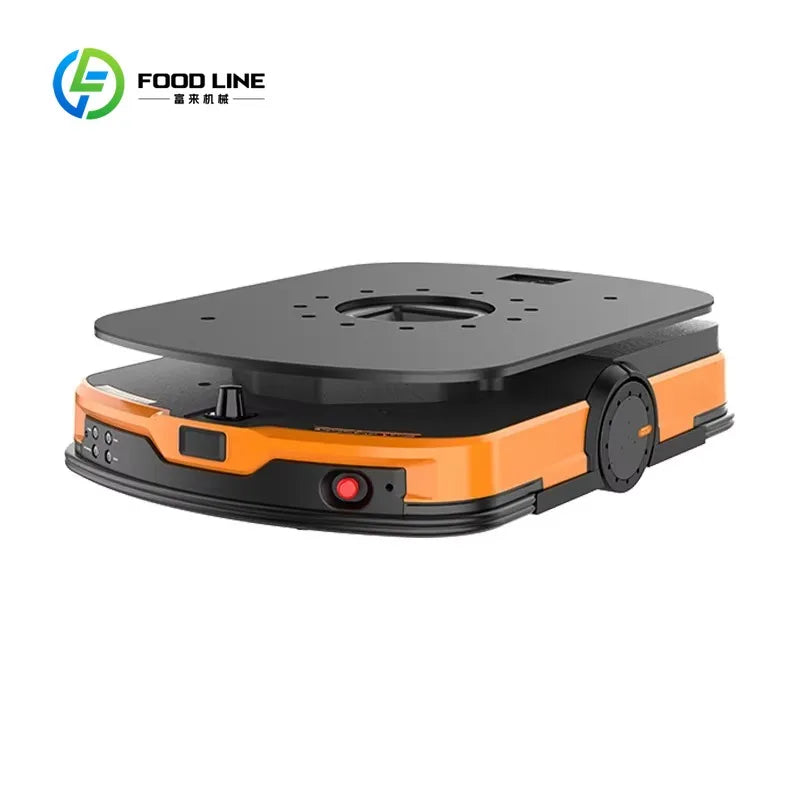

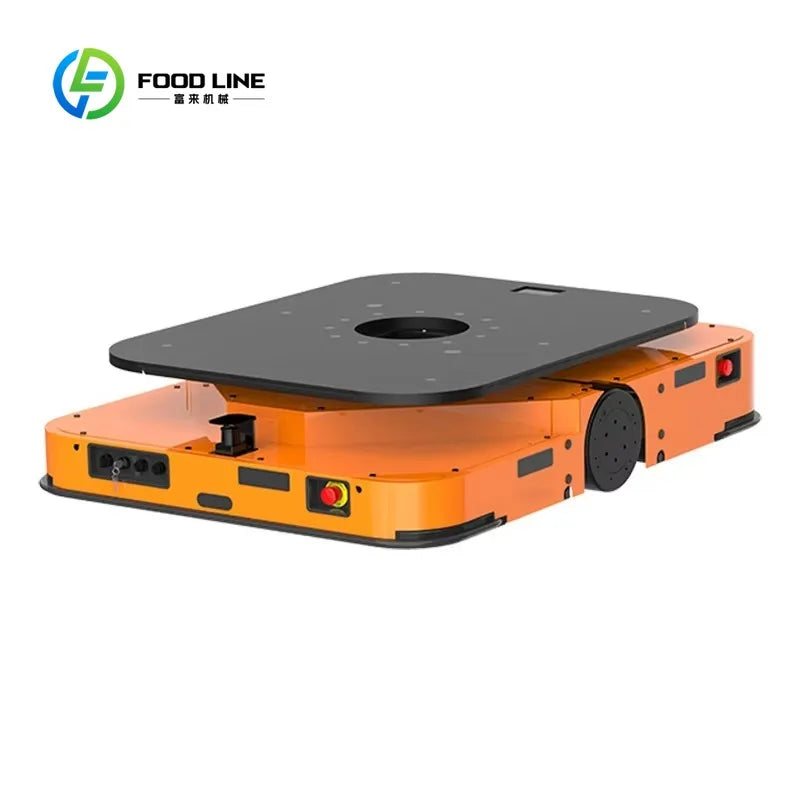

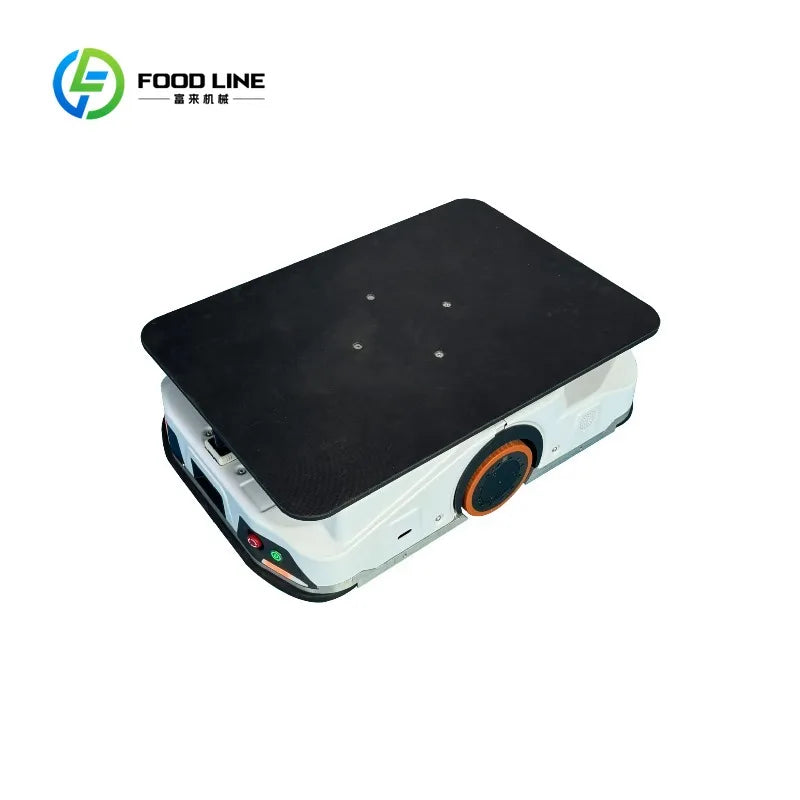

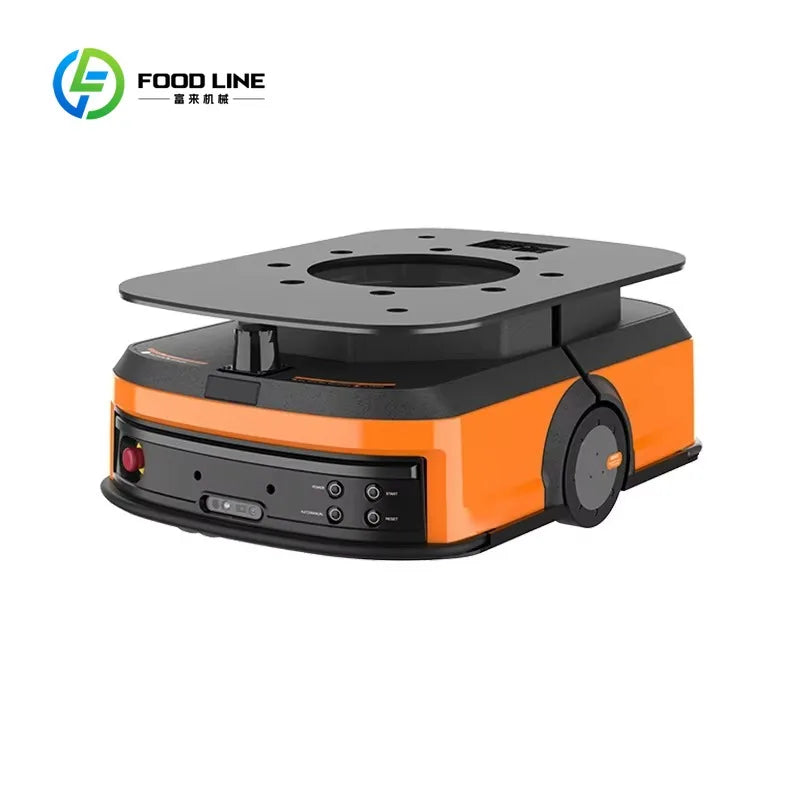

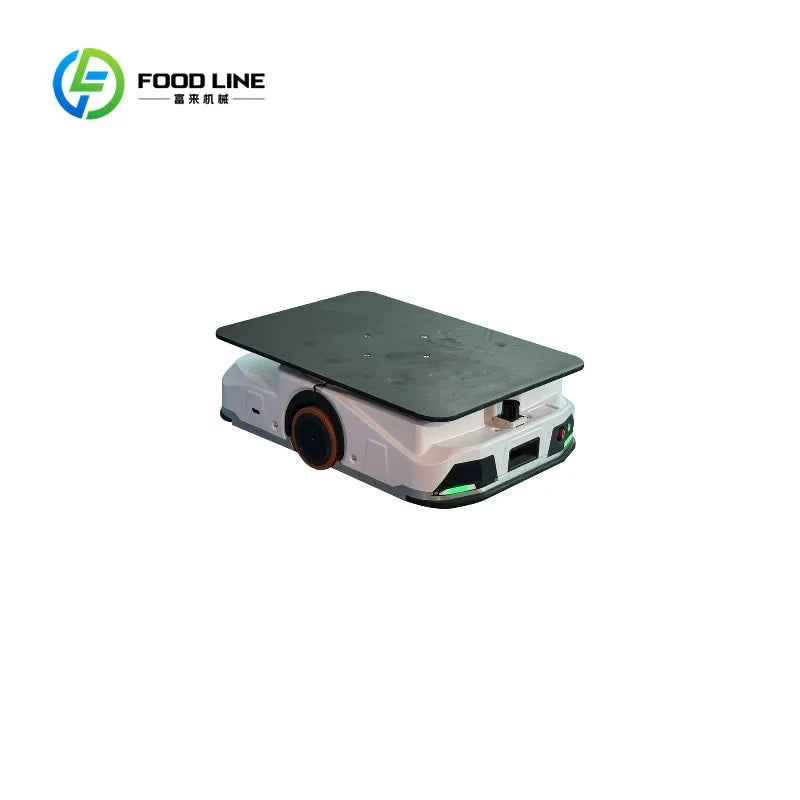

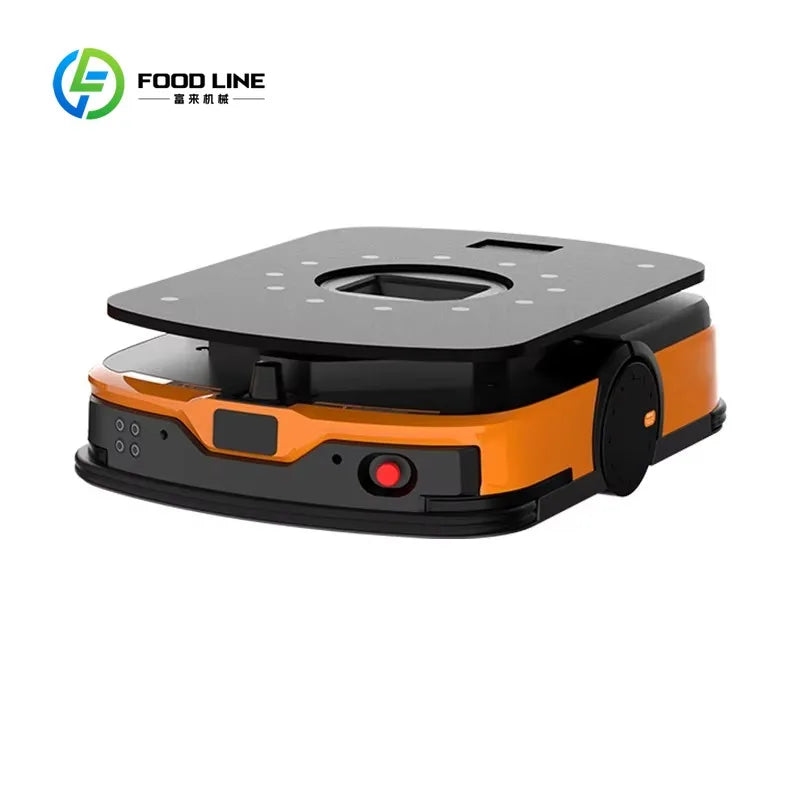

AGV (Automated Guided Vehicle) Sorting Robots
The AGV (Automated Guided Vehicle) sorting robots are cutting-edge automation solutions revolutionizing material handling and logistics operations worldwide. Equipped with advanced navigation technologies—including laser guidance, vision systems, and RFID positioning—these autonomous vehicles deliver precise, high-speed sorting of packages, parcels, and components with minimal human intervention.
Designed to optimize workflow efficiency, AGV sorting robots eliminate manual sorting errors and significantly boost throughput, handling hundreds of items per hour while maintaining consistent accuracy. Their flexible programming allows seamless integration with existing warehouse management systems (WMS), adapting to dynamic inventory demands, variable package sizes, and complex sorting rules effortlessly.
Featuring built-in safety mechanisms such as obstacle detection sensors, emergency stop functions, and collision avoidance technology, these robots ensure a secure working environment alongside human operators. Compact and maneuverable, they navigate narrow aisles and tight spaces with ease, maximizing storage utilization and operational flexibility in warehouses, distribution centers, e-commerce facilities, and manufacturing plants.
Energy-efficient and low-maintenance, AGV sorting robots reduce operational costs by minimizing labor expenses, lowering product damage rates, and optimizing energy consumption through smart power management. Real-time data tracking and remote monitoring capabilities enable managers to gain full visibility of sorting processes, streamline resource allocation, and make data-driven decisions for continuous improvement.
From e-commerce order fulfillment to industrial part sorting, AGV sorting robots redefine productivity standards, enabling businesses to meet growing customer demands with speed, reliability, and scalability. As a cornerstone of smart logistics, they empower organizations to stay competitive in the fast-paced global supply chain landscape.
Short implementation cycle
Standard modular design, plug and play, can be customized according to the demand for the number of compartments, the site can be used after rapid installation and commissioning.
Low maintenance difficulty
The simplification of the mechanical structure of the equipment greatly reduces the difficulty of maintenance and maintenance costs.
Strong expandability
A sorting system can be customized according to the number of chutes.
Low cost of use
Occupying small space, high efficiency, minimize the cost of rent and labor costs.
APPLICATION SCENARIOS
E-commerce: E-commerce orders have the characteristics of multi-variety, small batches, and high timeliness. Linear cross-belts can quickly sort a large number of commodity orders of different categories, efficiently handle the delivery process, and adapt to e-commerce warehousing and delivery scenarios.
Express: The express delivery industry has a large number of packages of different destinations and different weights and volumes every day. The cross-belt sorting system can sort accurately and quickly to improve transit efficiency. It is a common equipment in express distribution centers.
Warehouse Logistics: In comprehensive warehousing and logistics, facing the entry and exit sorting operations of diverse goods, the cross-belt can flexibly respond to achieve efficient classification of goods by order or storage area, and optimize storage and circulation.
ERP System: The ERP system covers enterprise logistics management, and cross-belt sorting can be used as an execution link. According to system instructions, production data, finished products, etc. are automatically sorted to ensure the internal logistics of the enterprise and the connection of the supply chain.
Books: There are many types of books but the weight is relatively uniform. The cross belt can gently and accurately sort orders for books from different publishing houses and different categories, and it can be used in the book storage and distribution center to help quickly distribute the goods to bookstores or readers.
