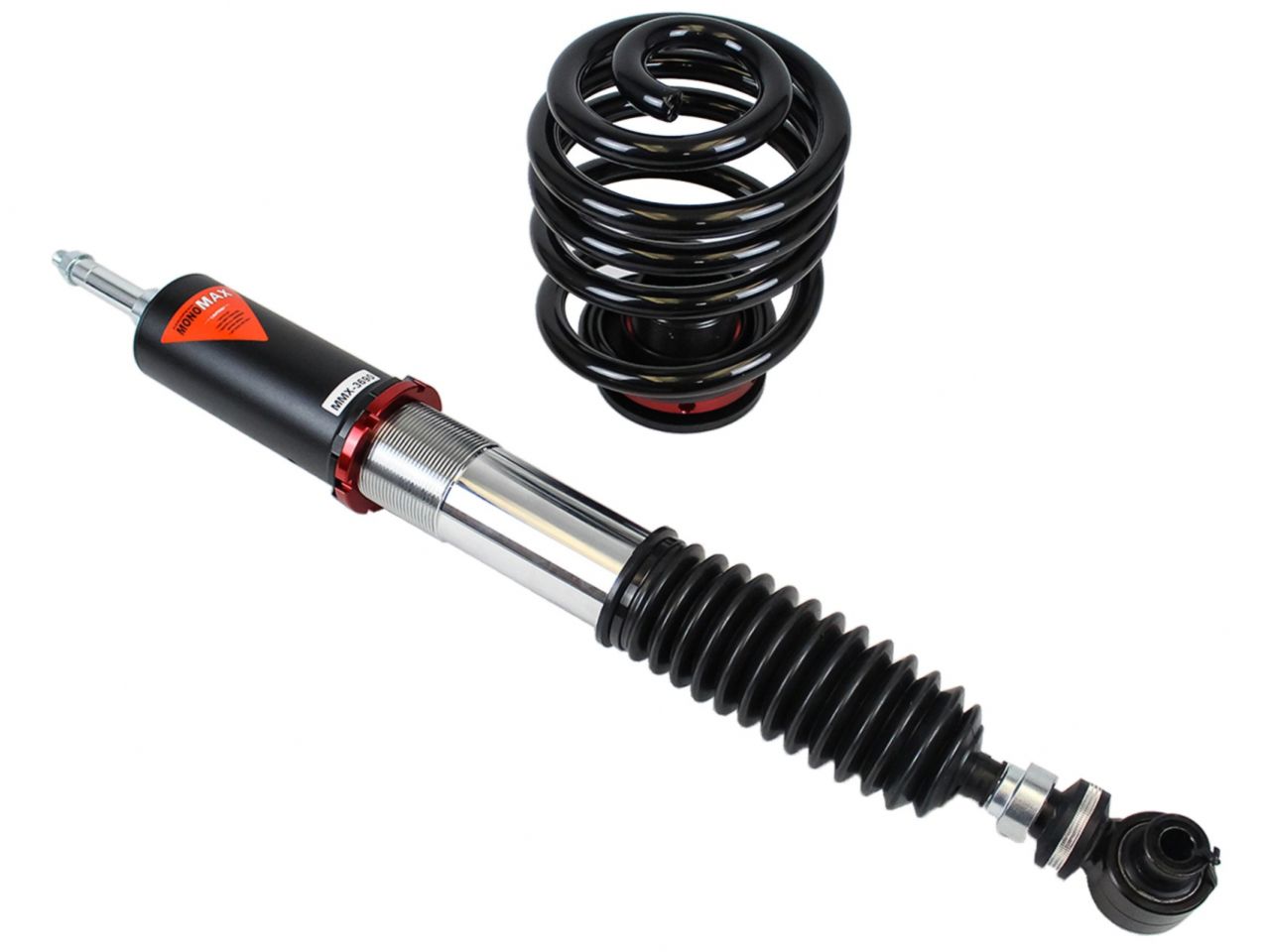

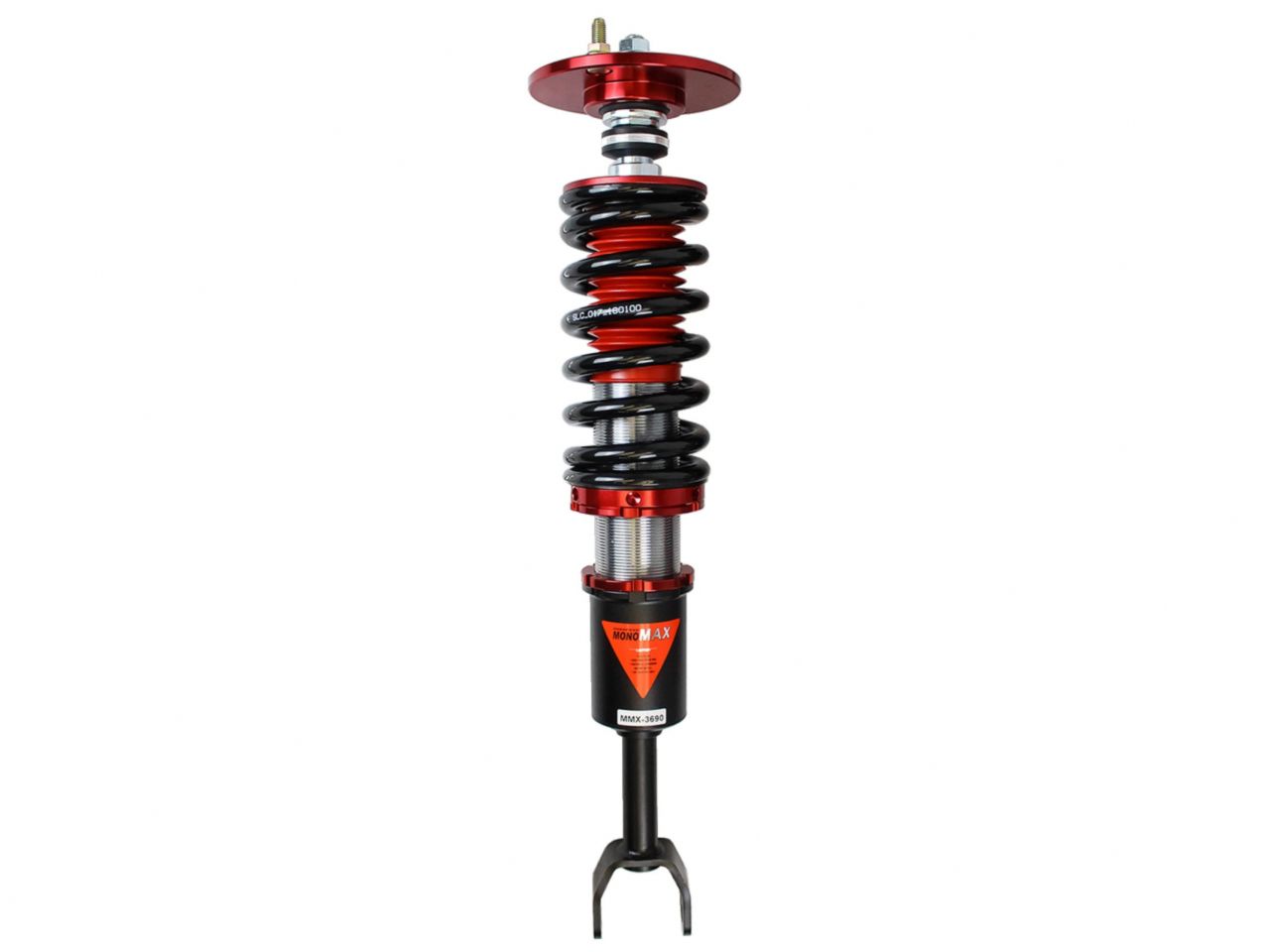

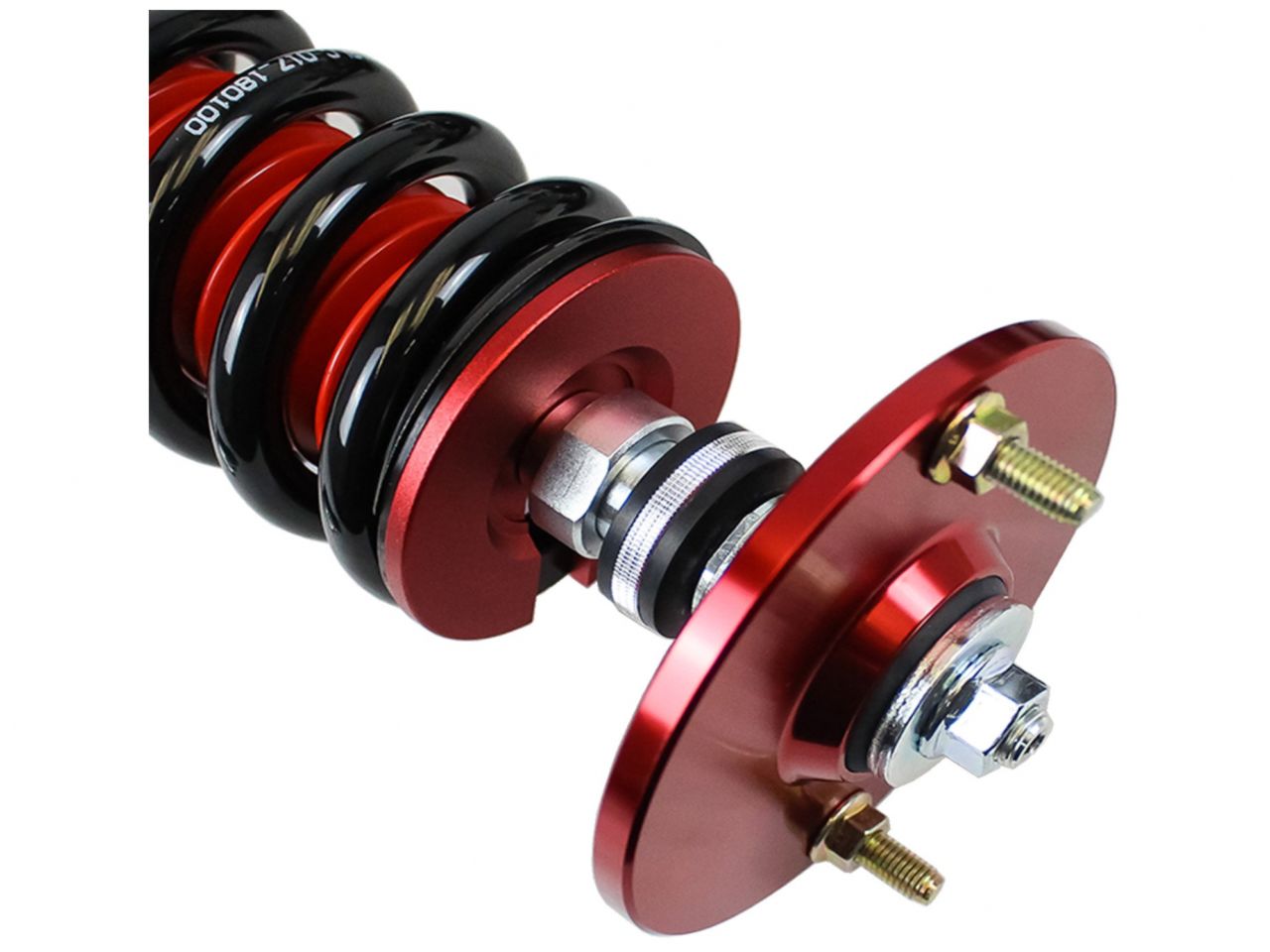

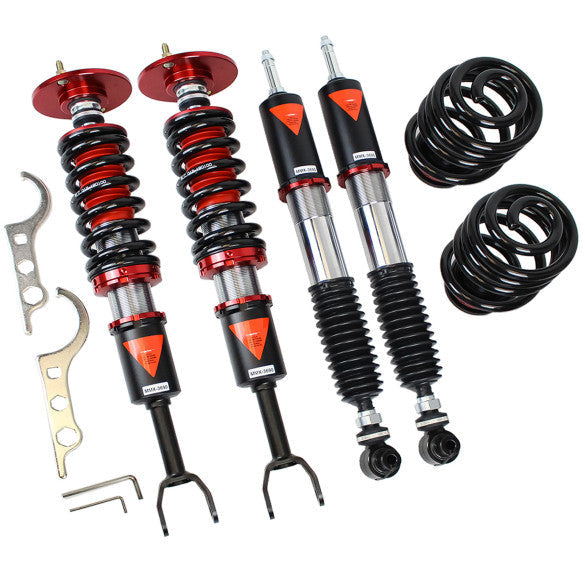

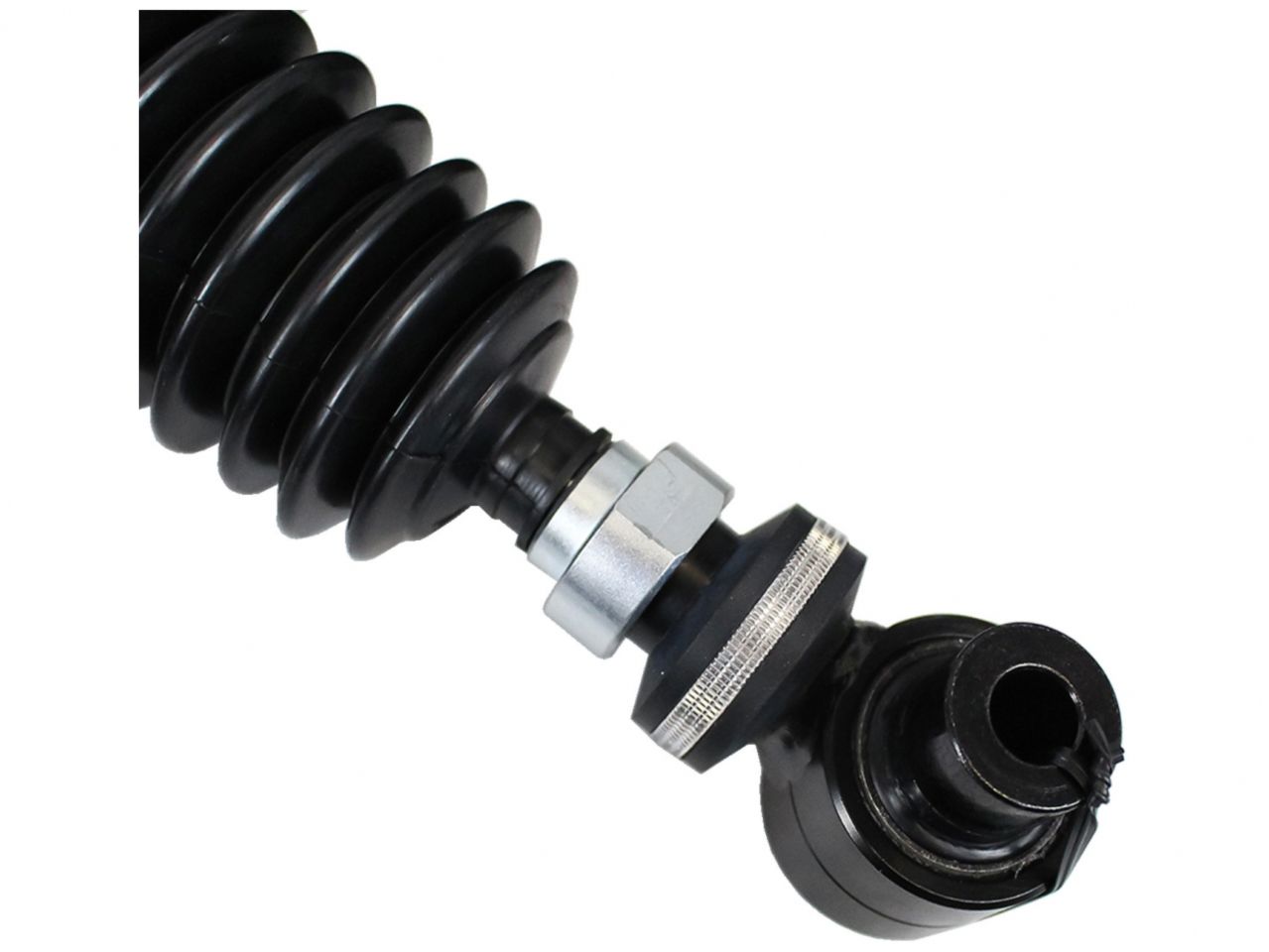

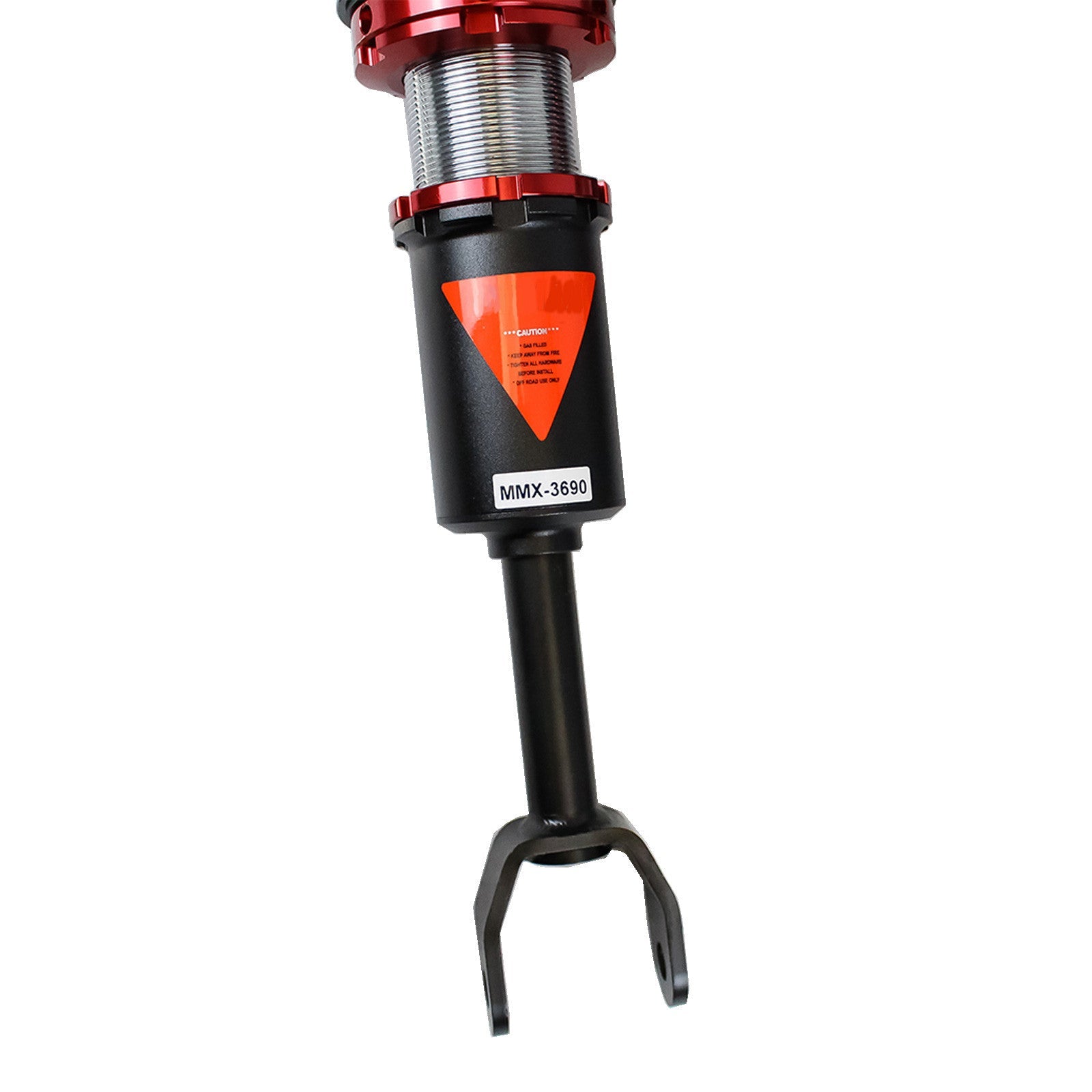

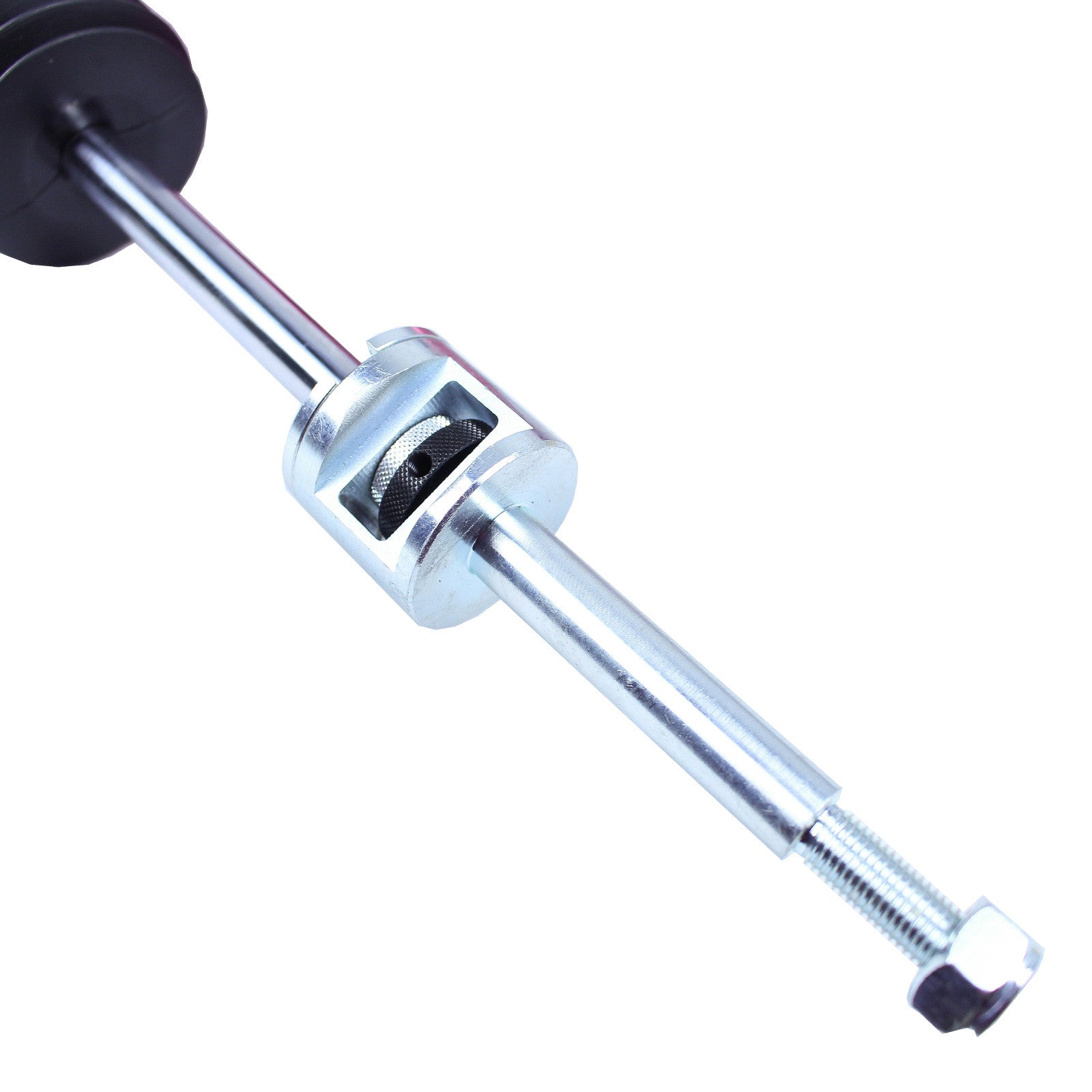

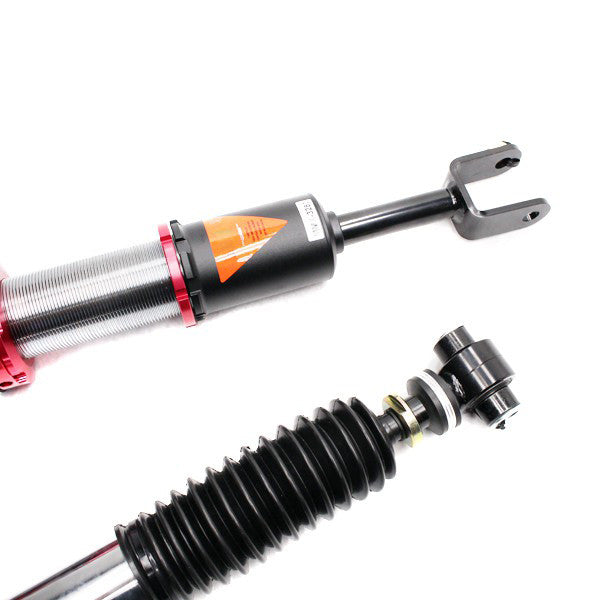

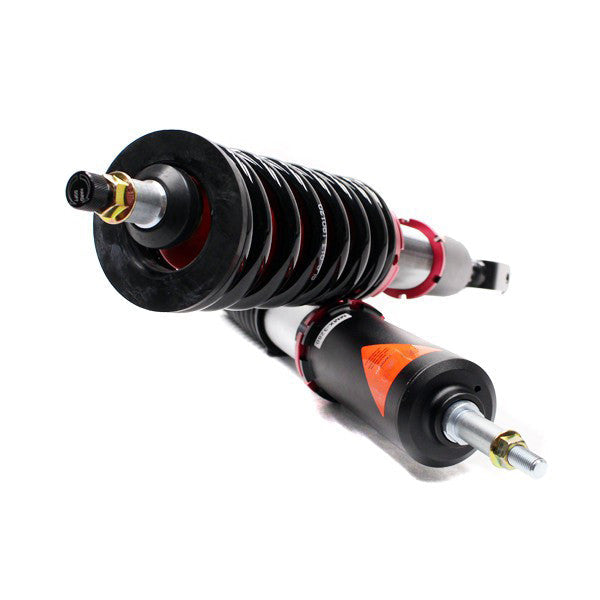

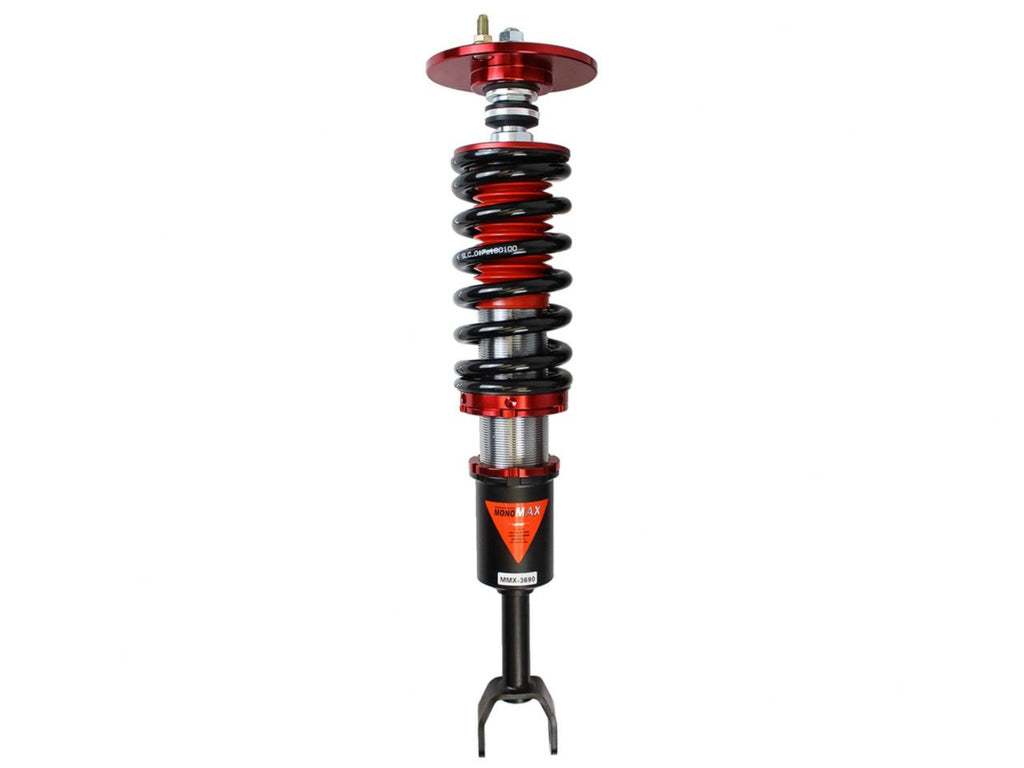

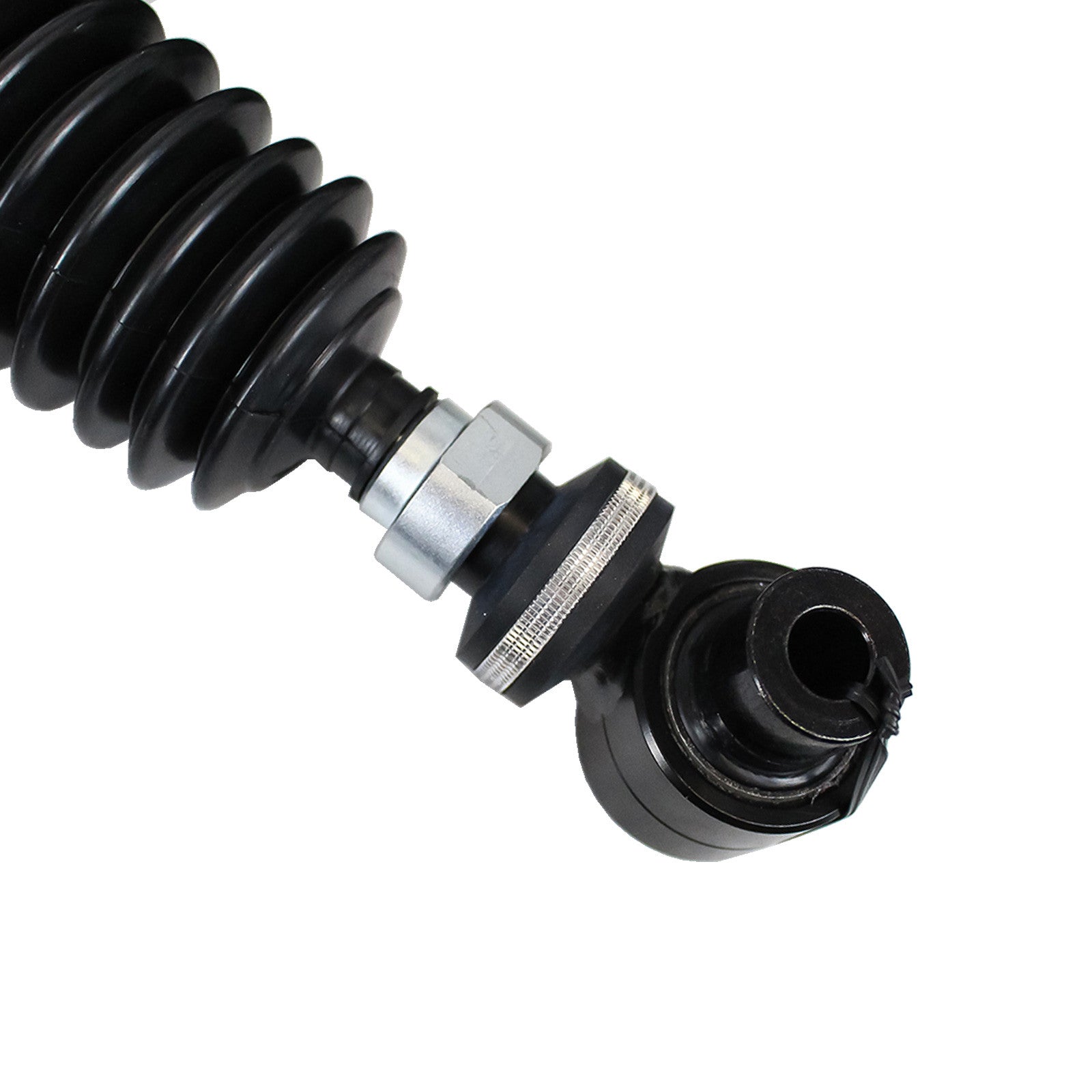

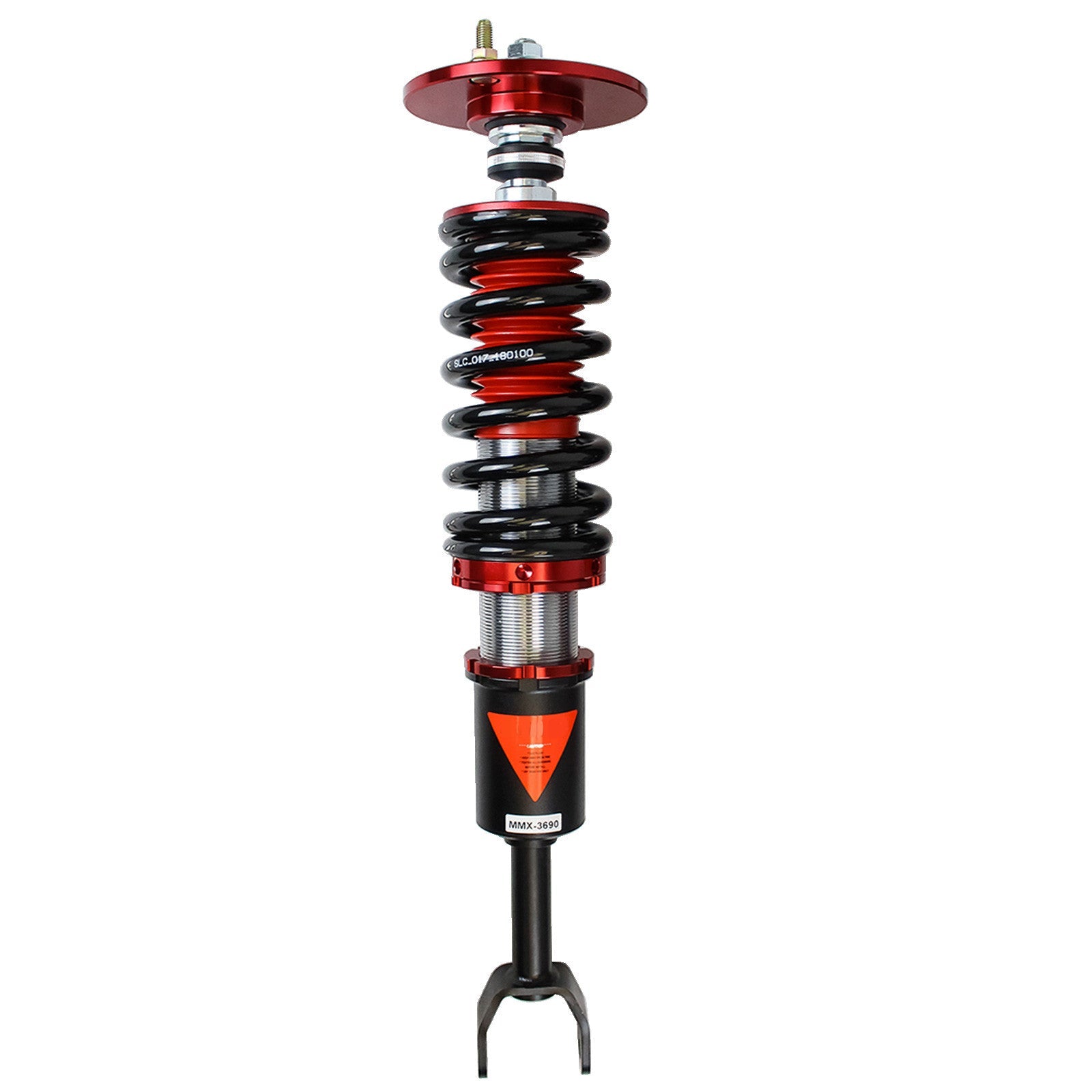

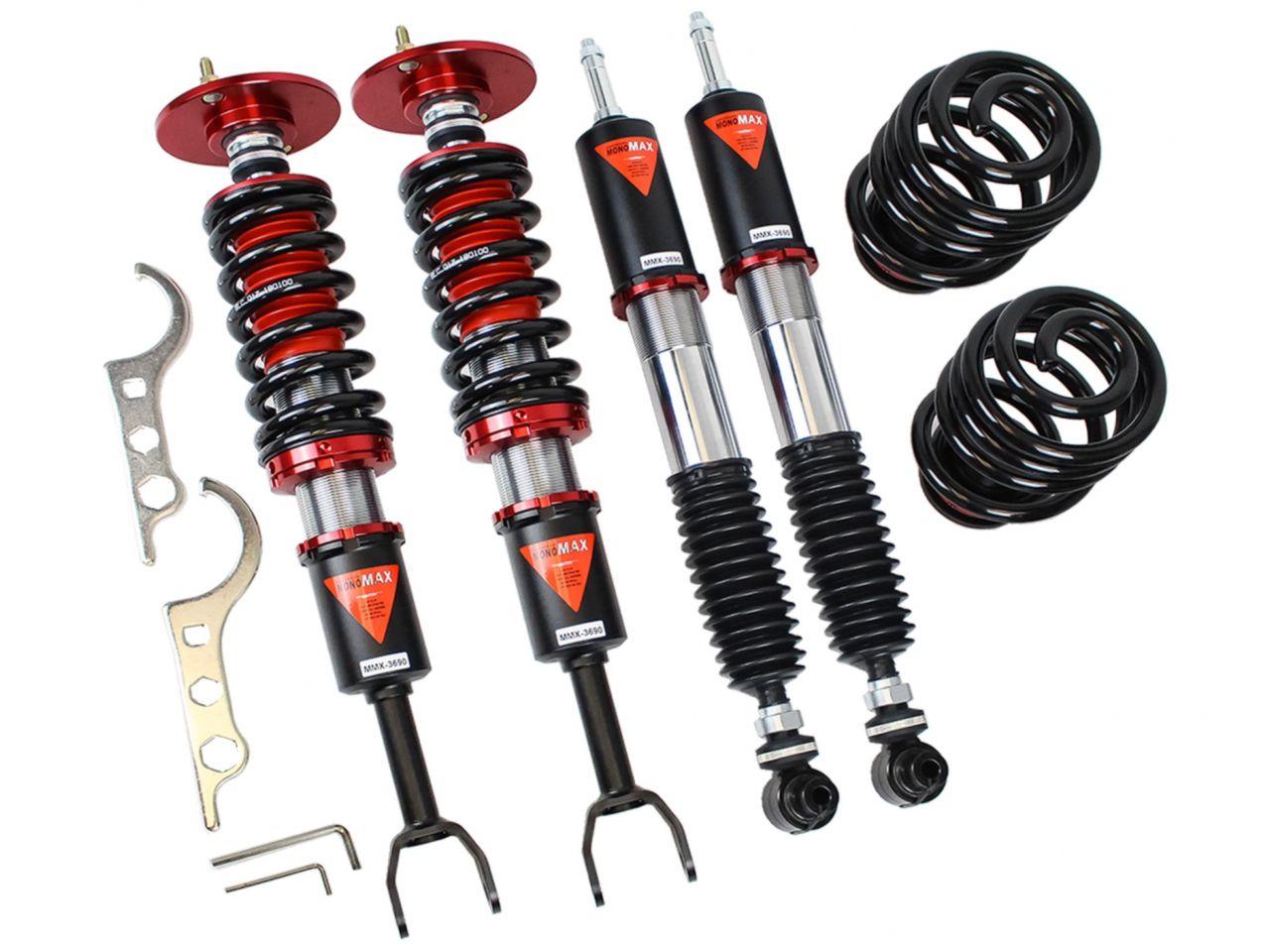

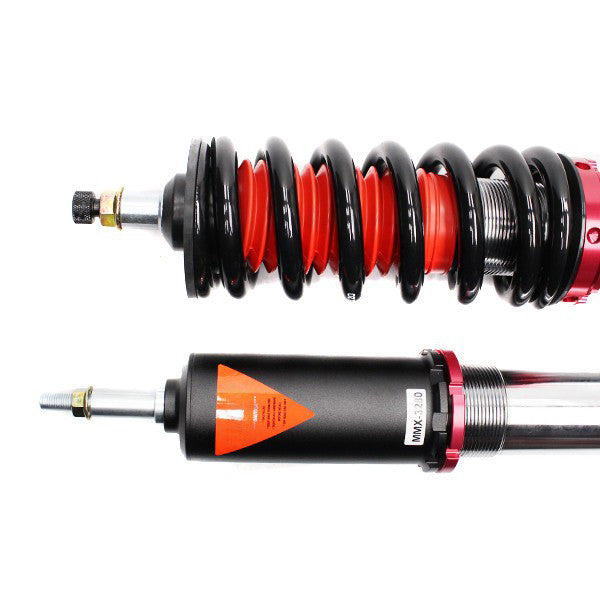

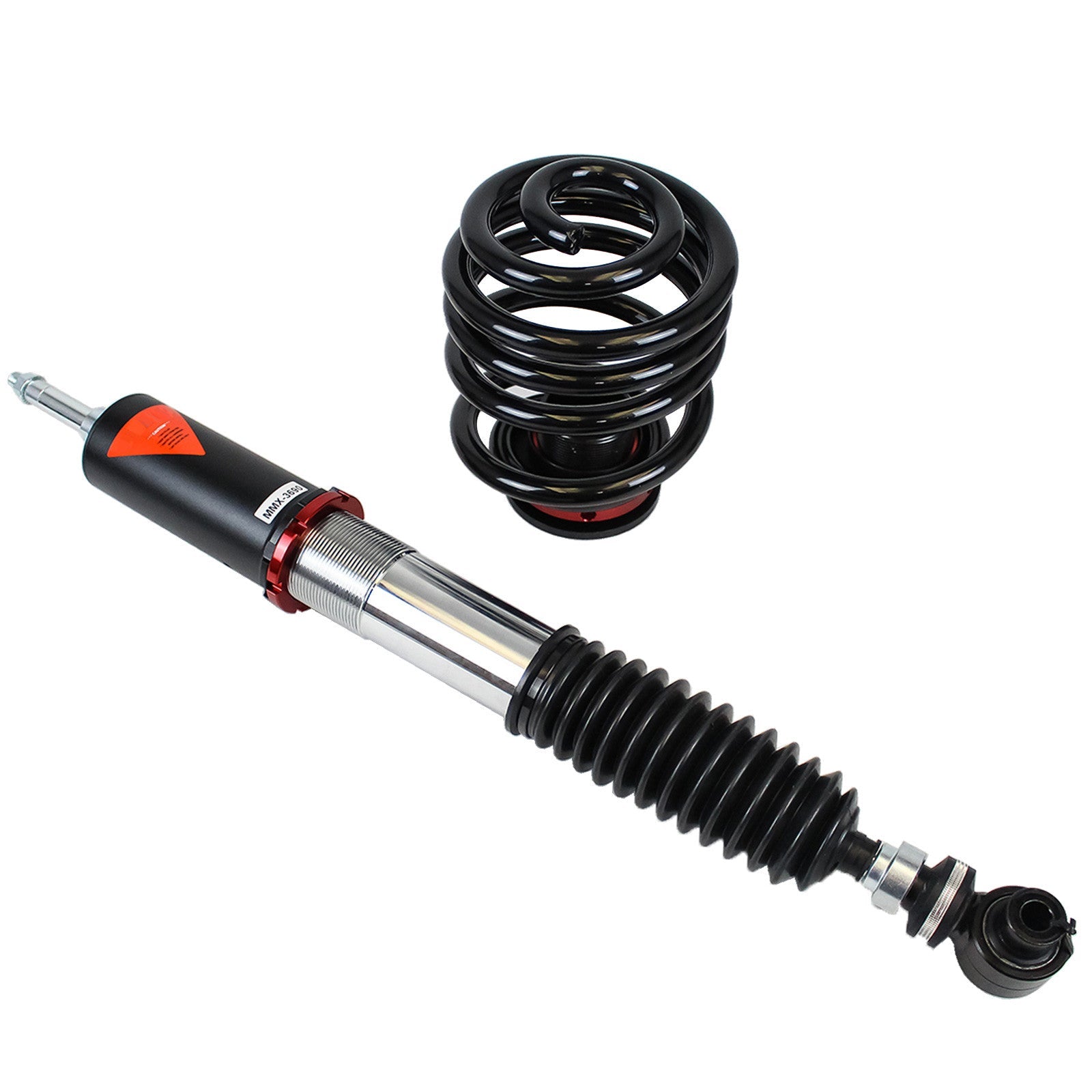

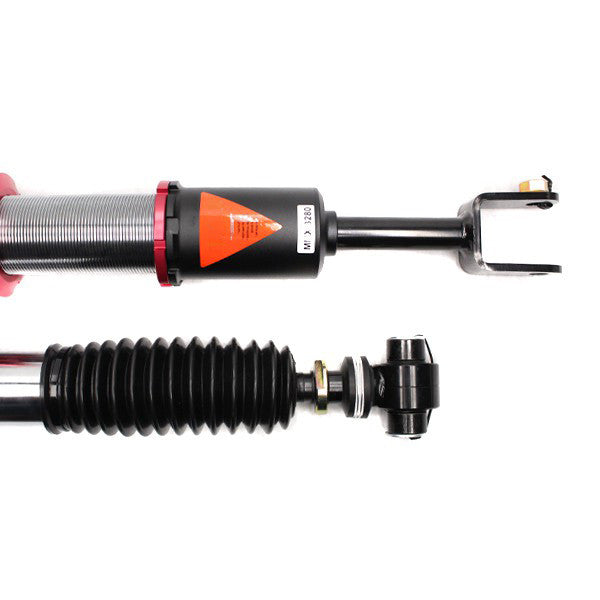

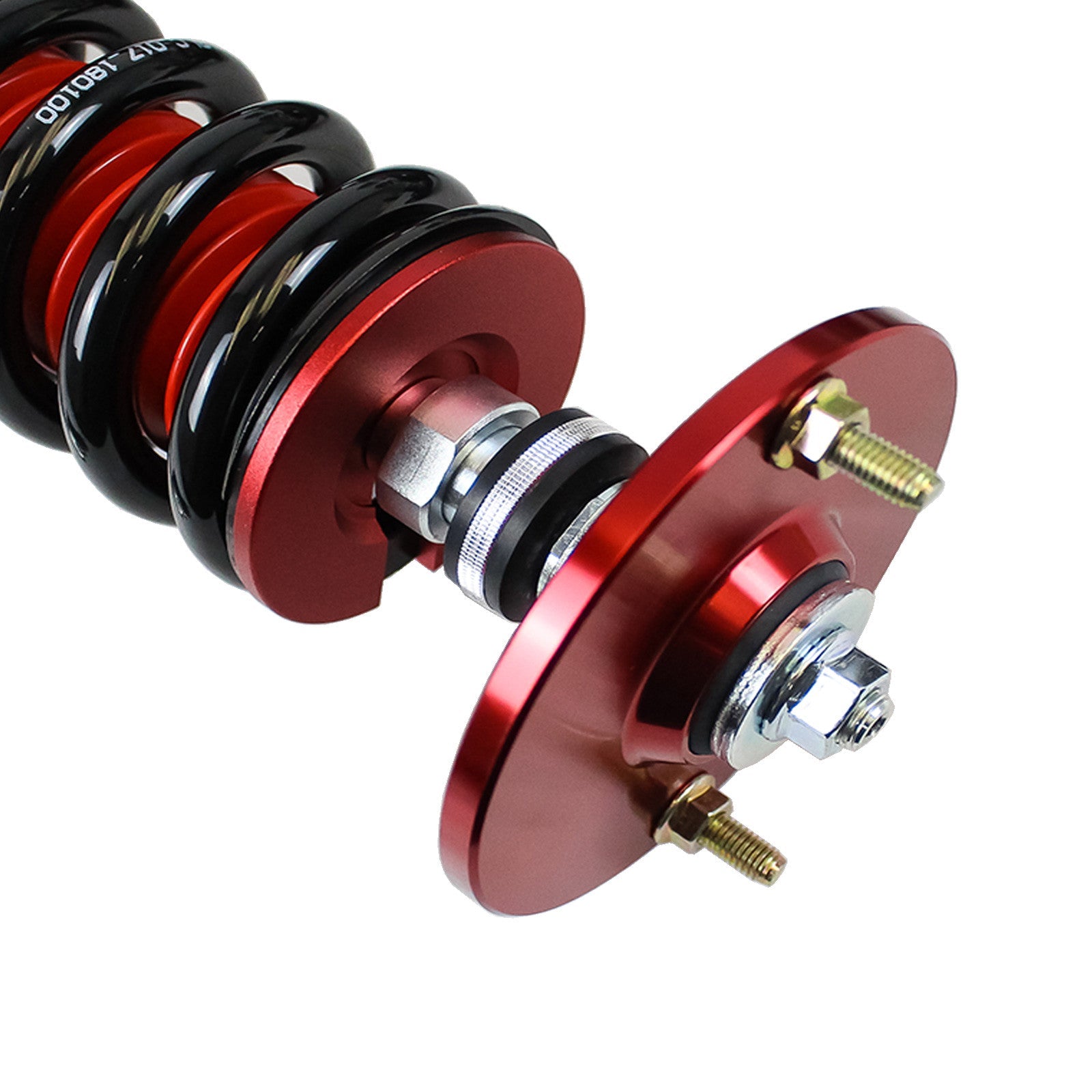

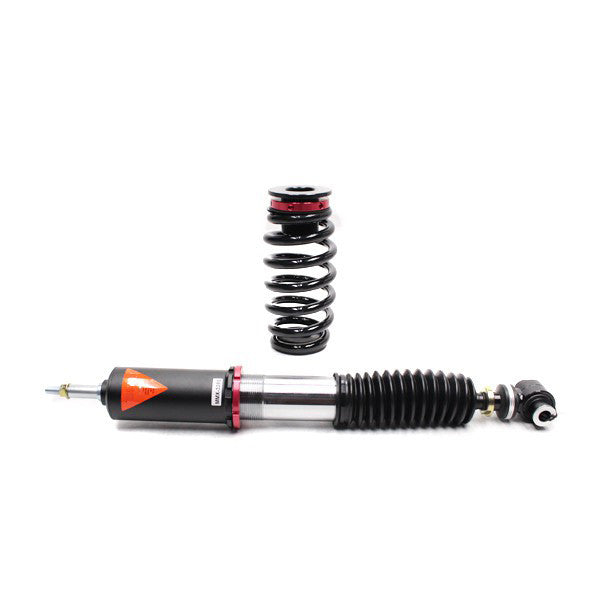

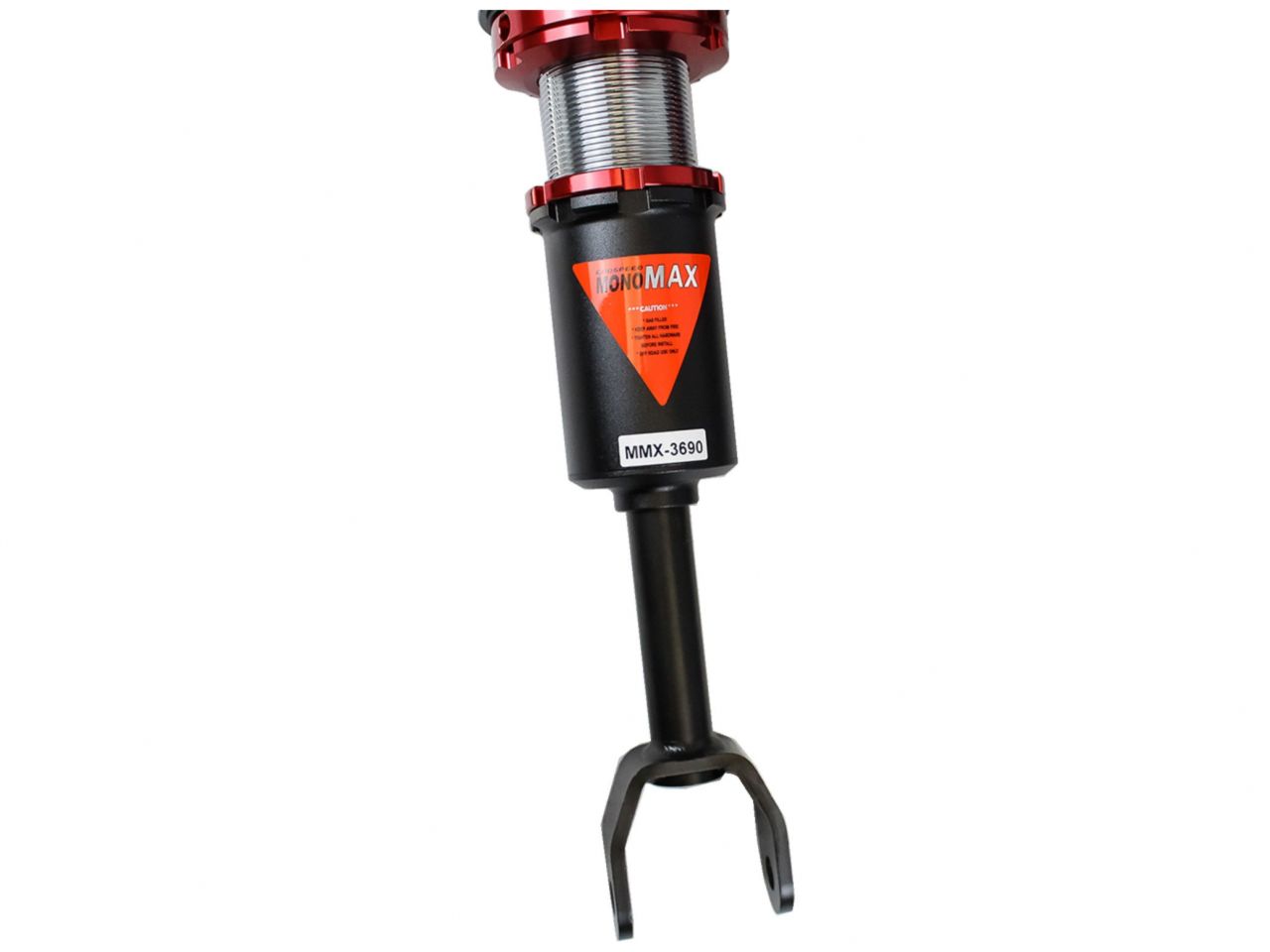

Godspeed Volkswagen Passat 4Motion/FWD (B5) Coilovers
FWD, 1998-2005, MAXX (Front: 10 kg/mm (560 lbs/inch) Rear: 10 kg/mm (560 lbs/inch))
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 10 kg/mm (560 lbs/inch) |
| Spring Rate(Rear) | 10 kg/mm (560 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 170 mm |

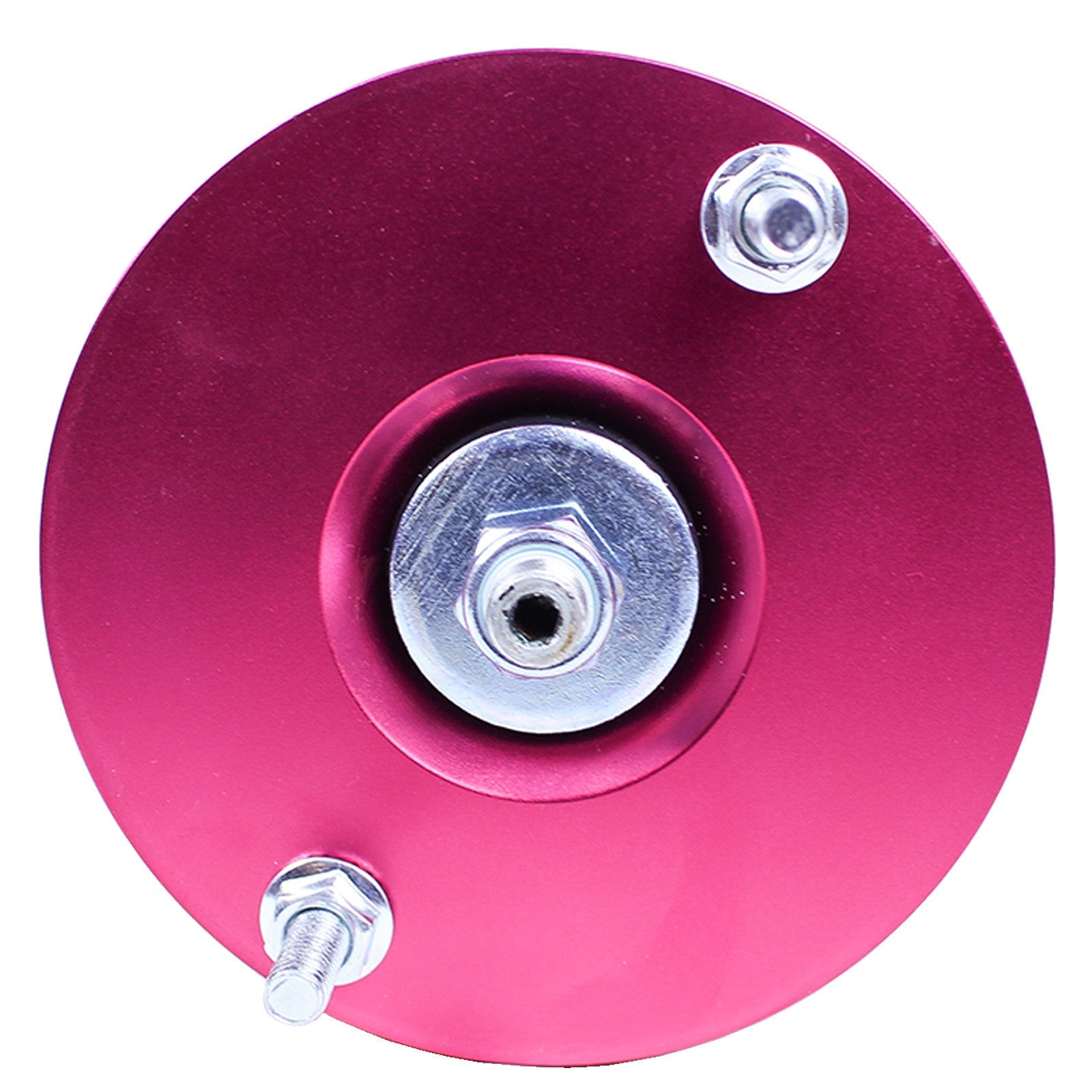

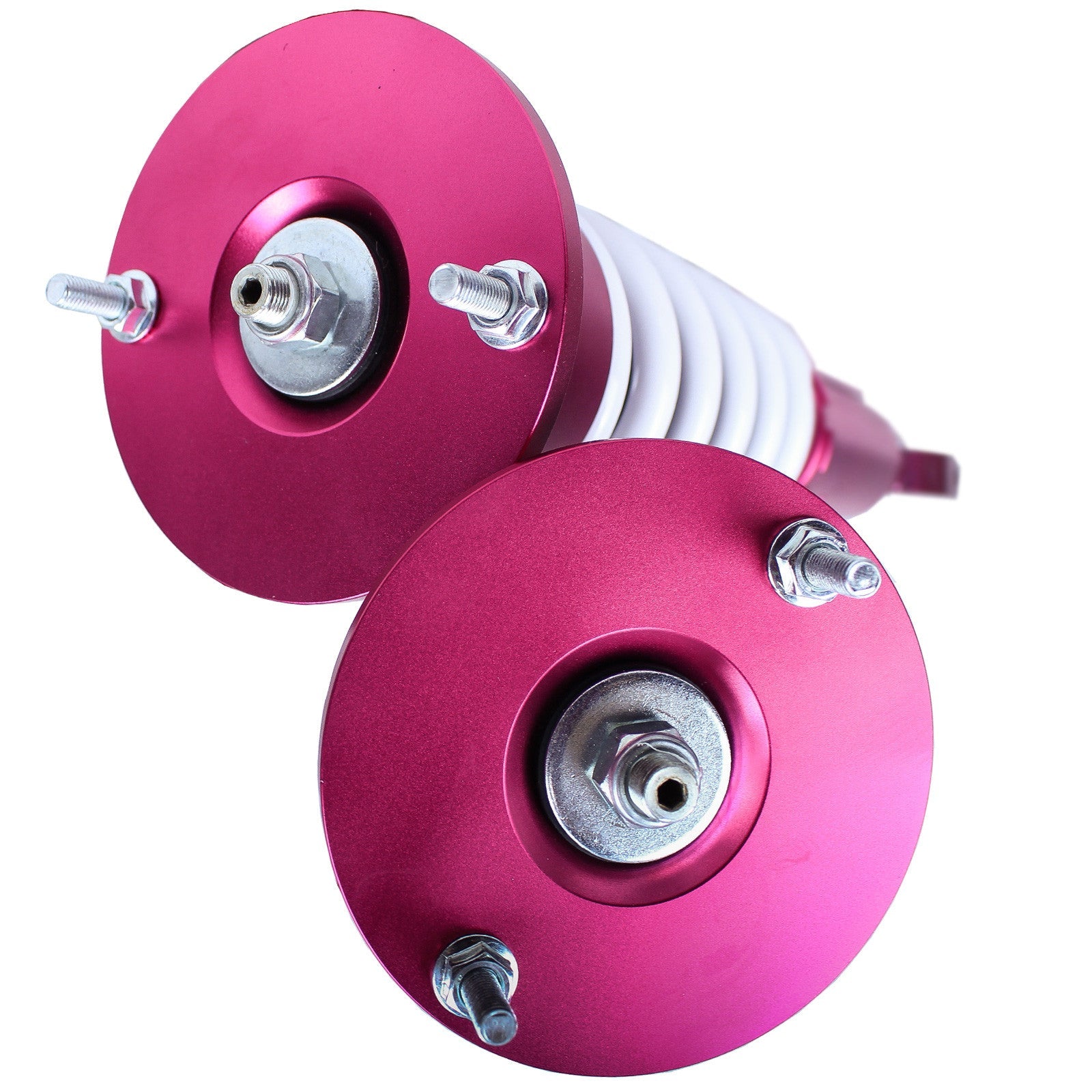

| Front Top Mount | Yes, Standard Type |

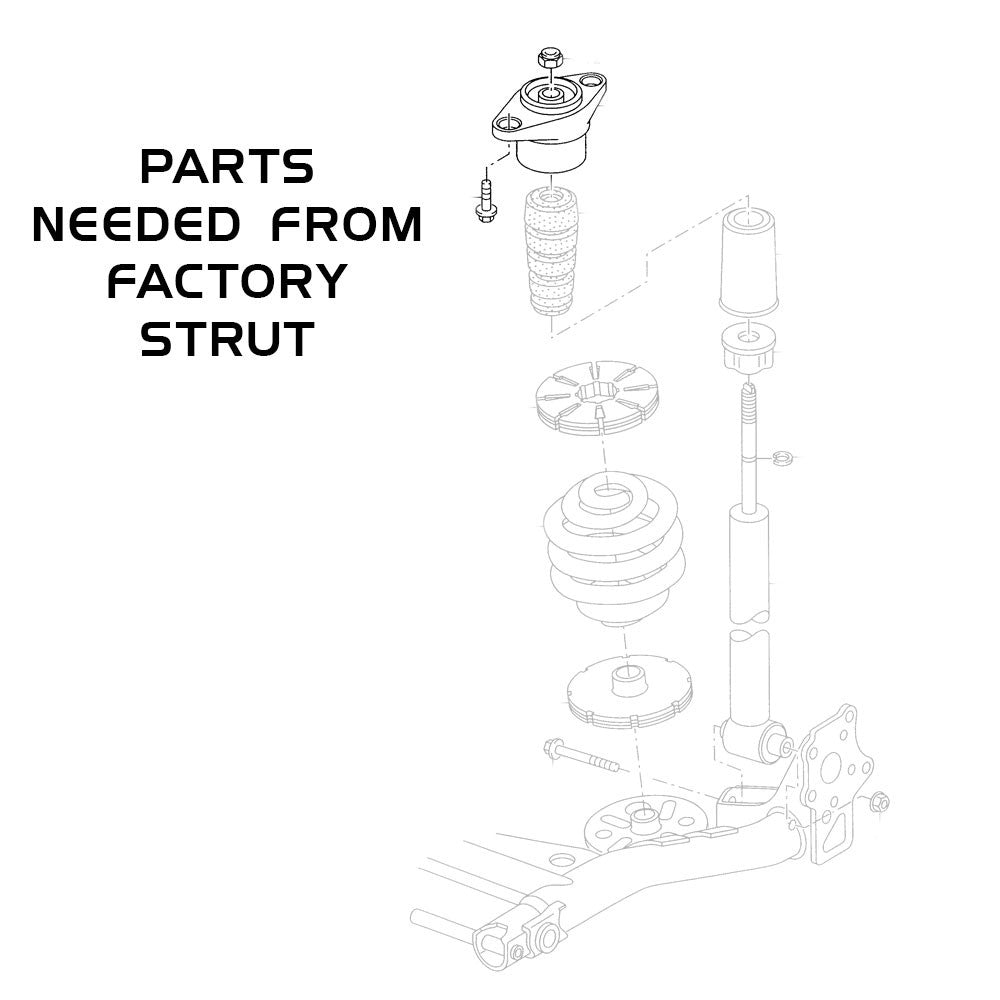

| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 43-62 mm (1.69-2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |

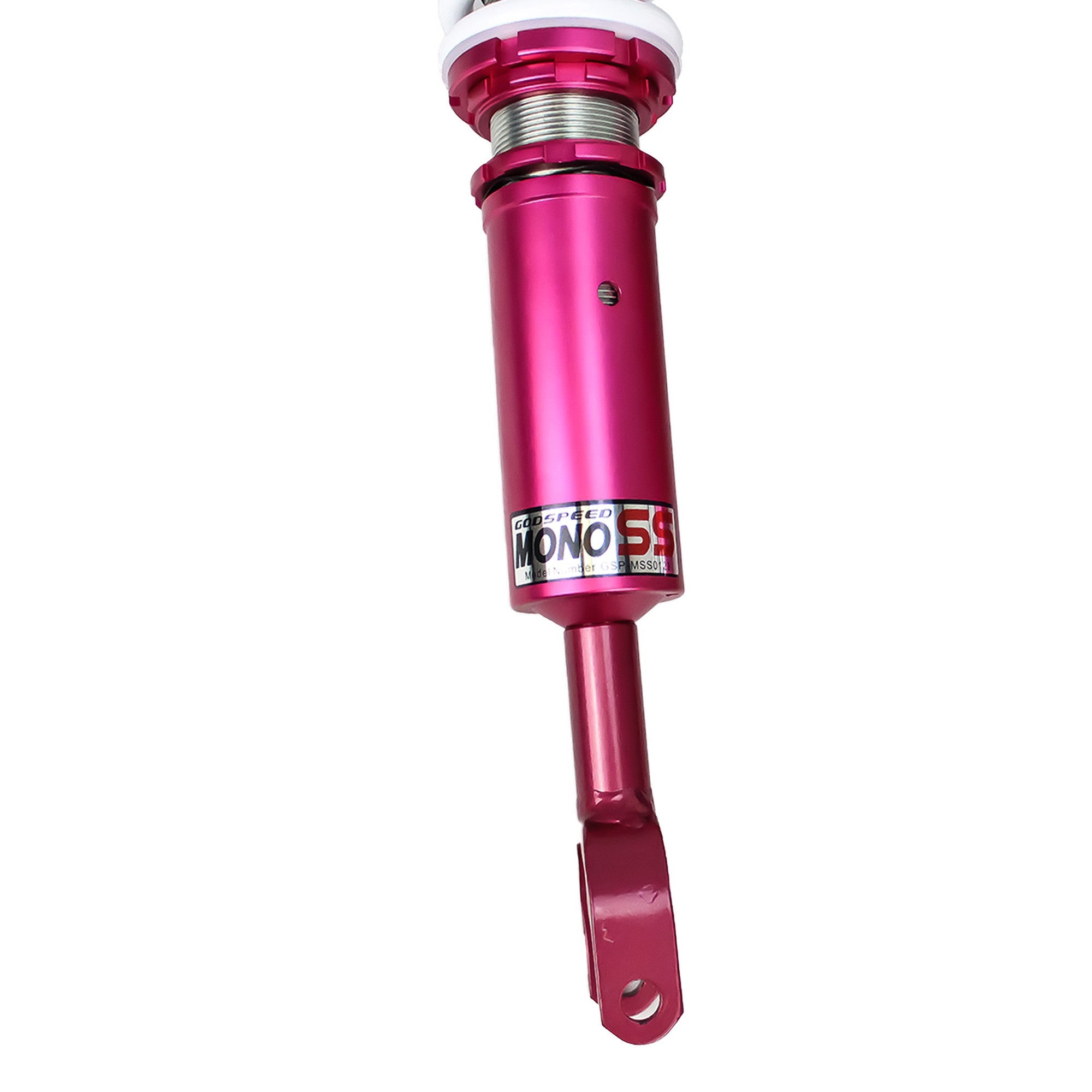

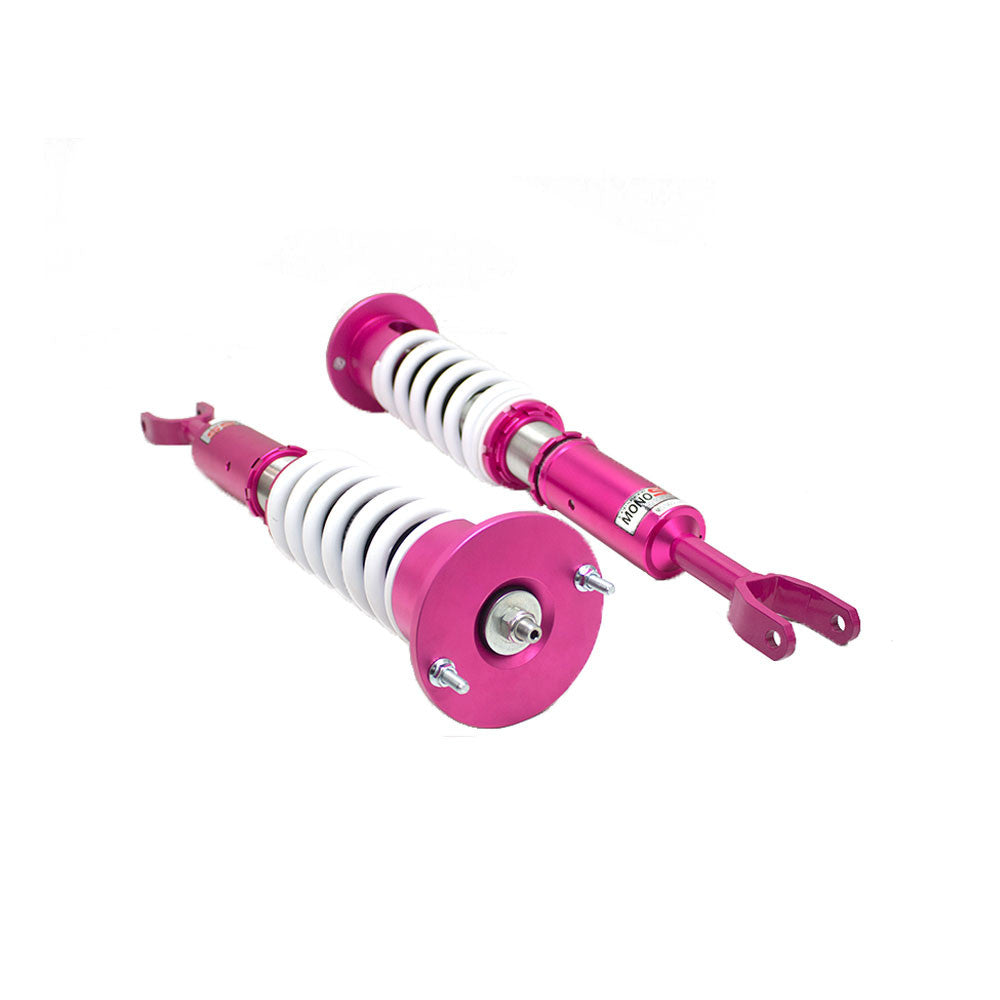

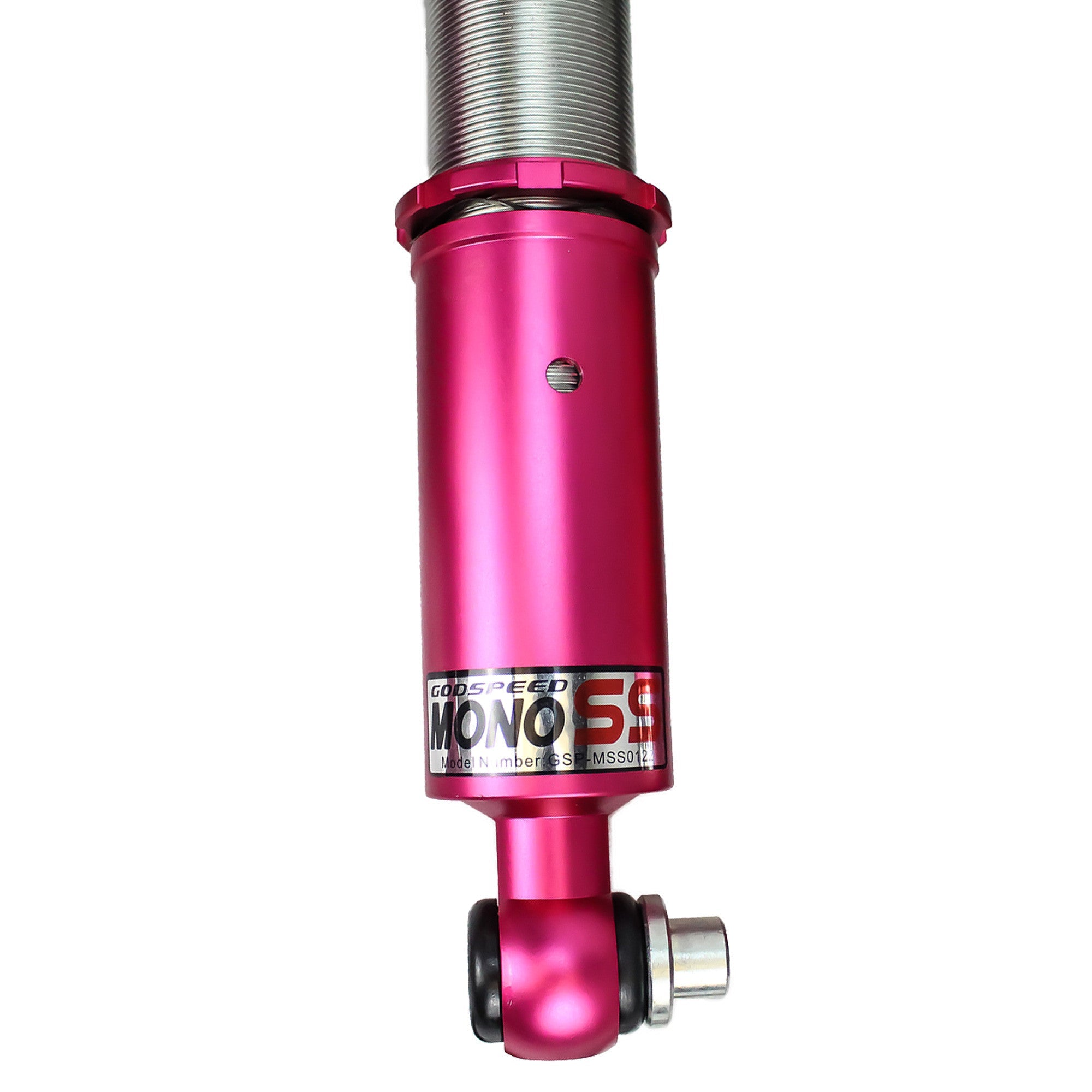

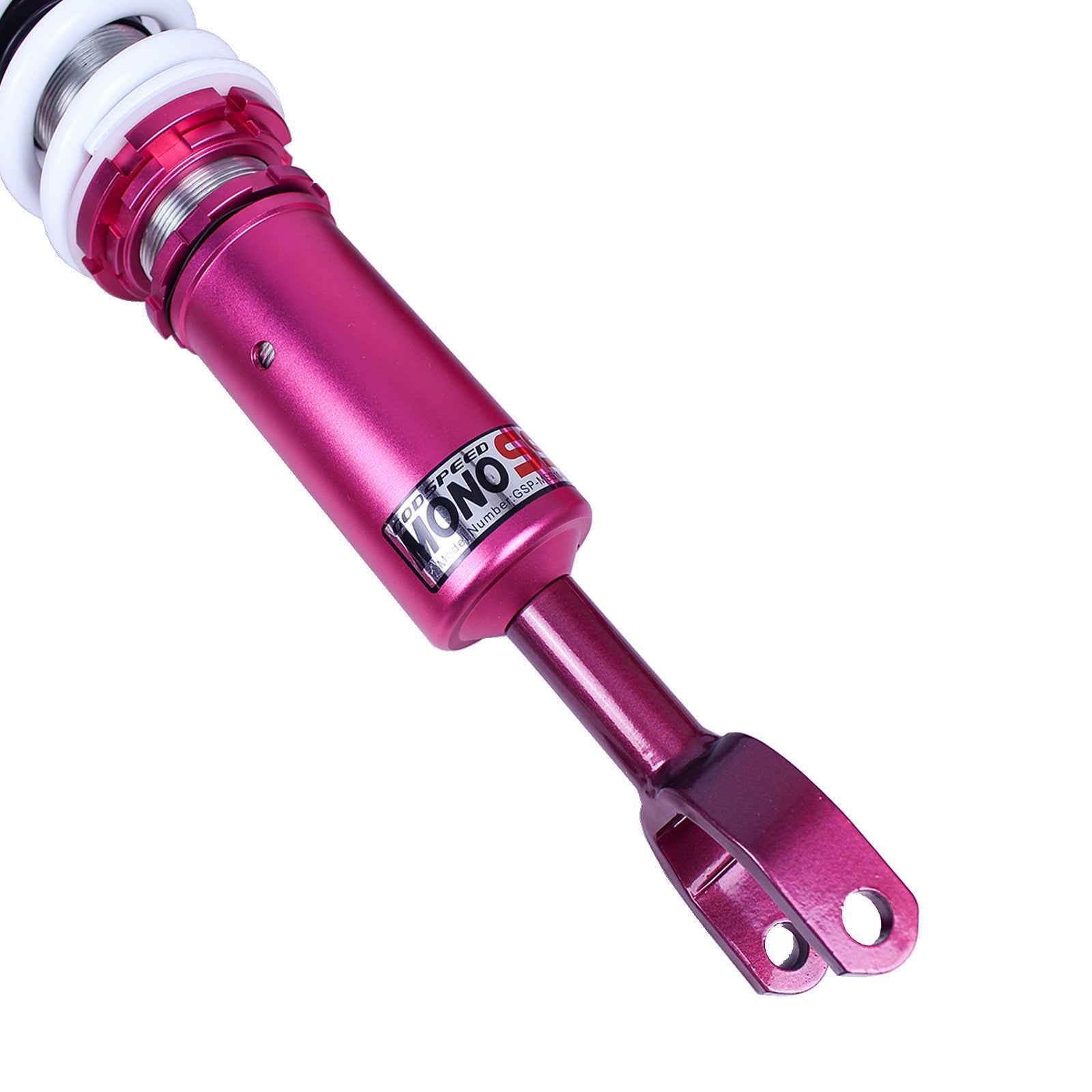

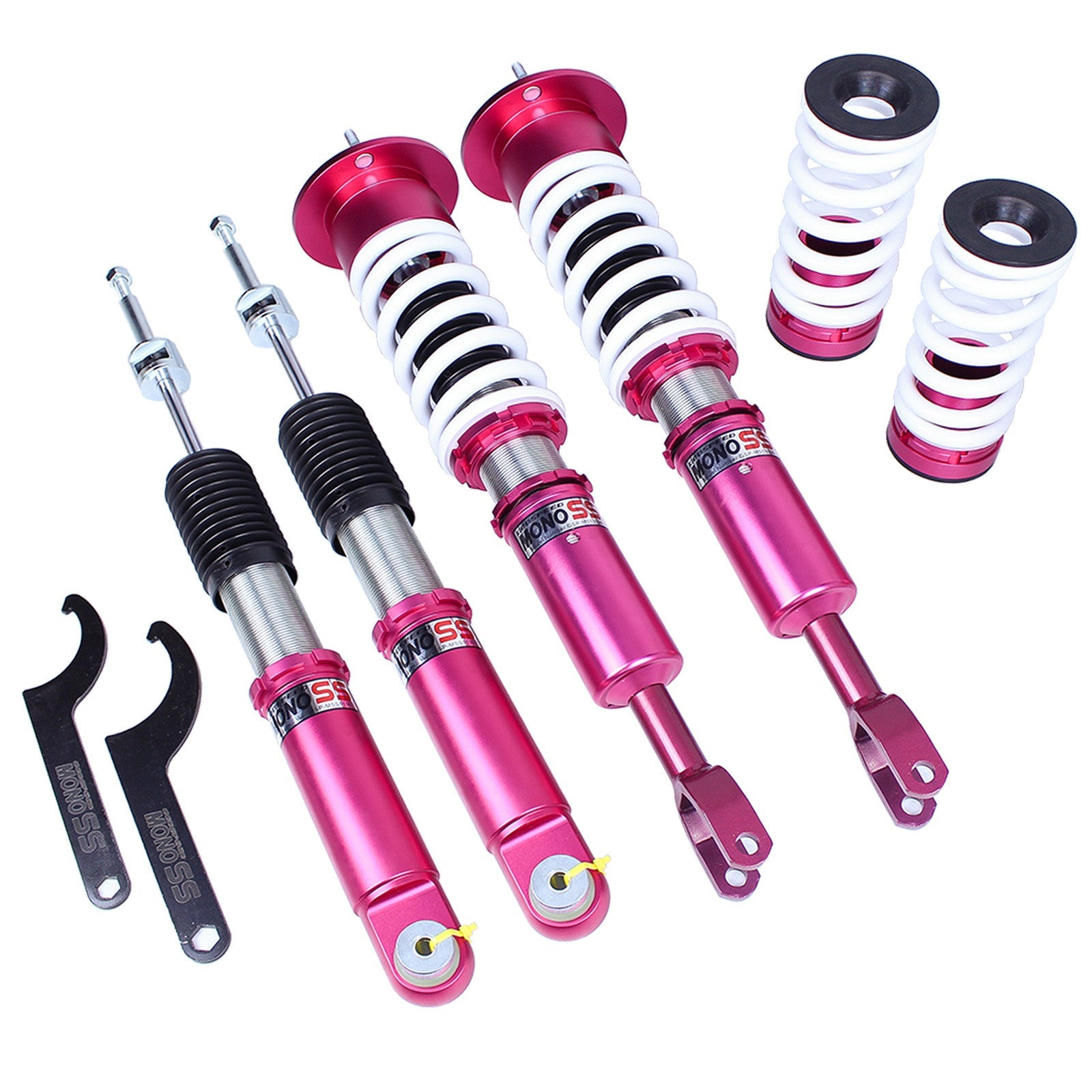

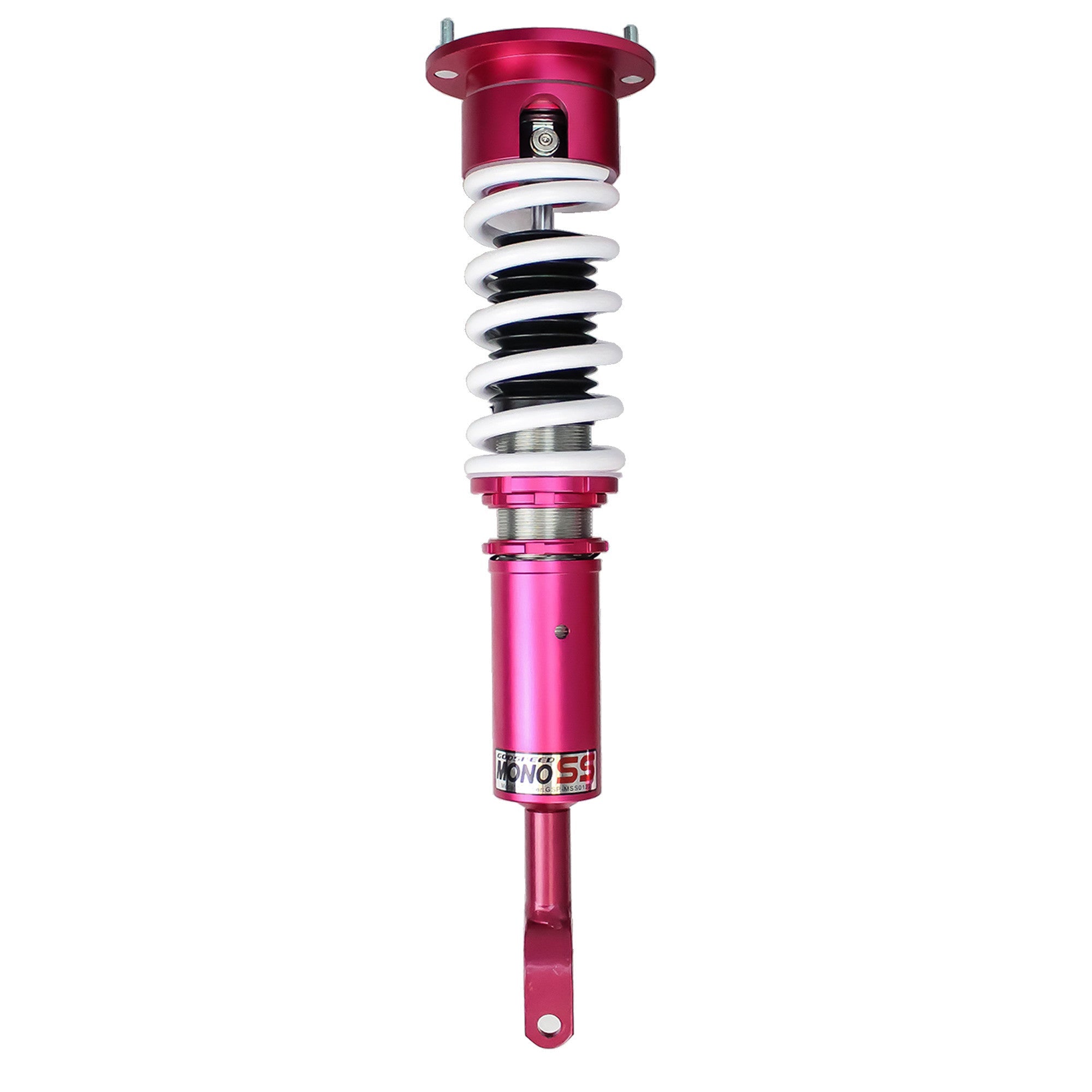

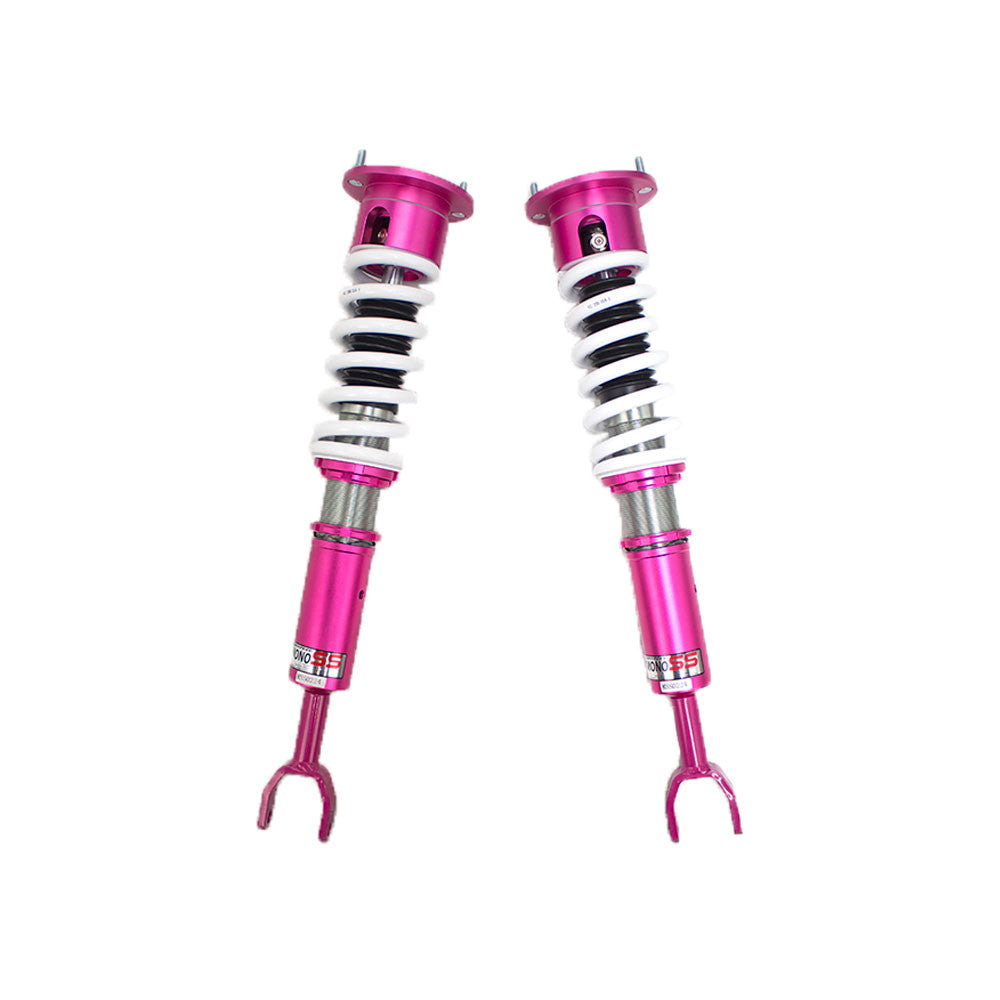

FWD, 1998-2005, MonoSS (Front: 10 kg/mm (560 lbs/inch) Rear: 6 kg/mm (336 lbs/inch))
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 16-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 10 kg/mm (560 lbs/inch) |
| Spring Rate(Rear) | 6 kg/mm (336 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 160 mm |

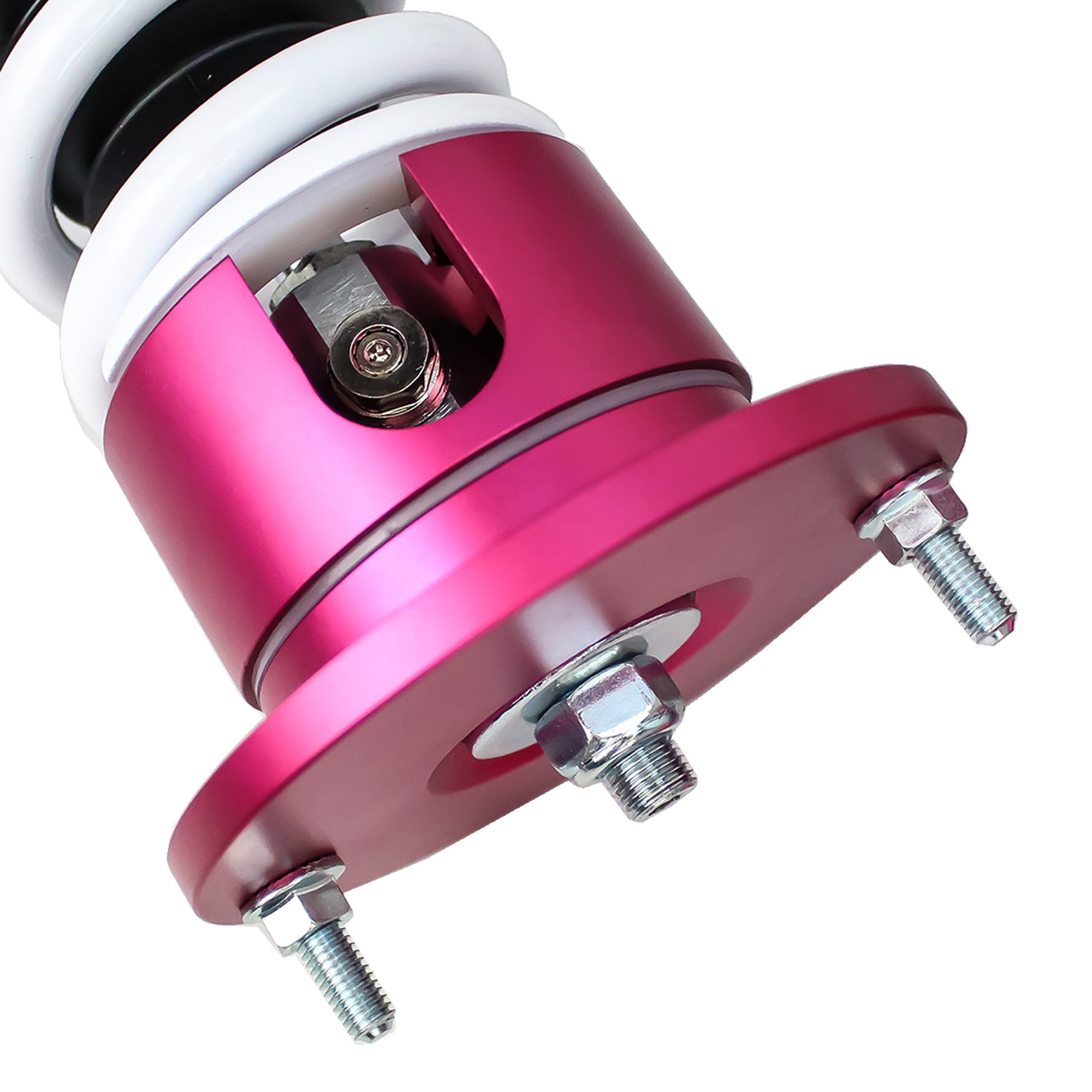

| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |

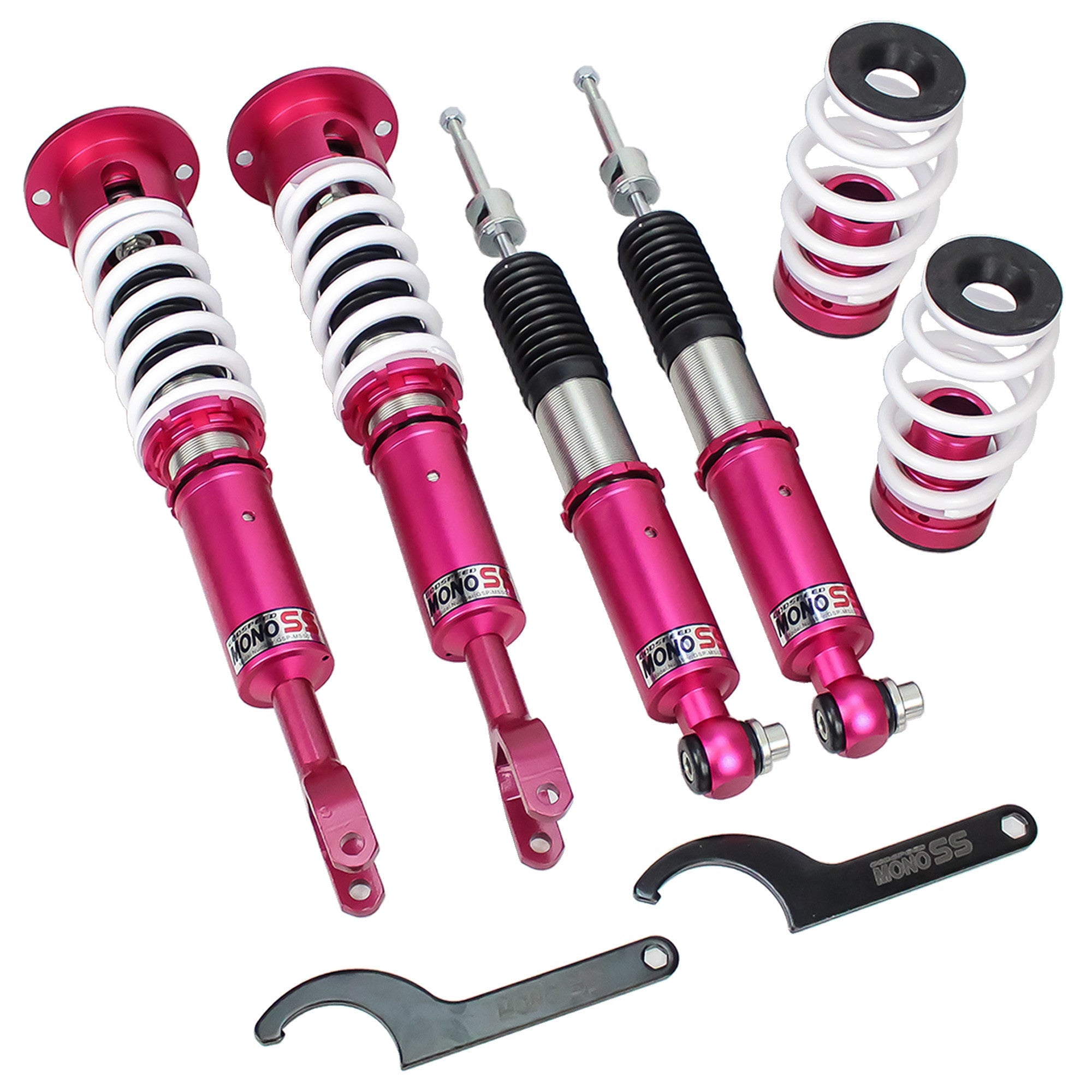

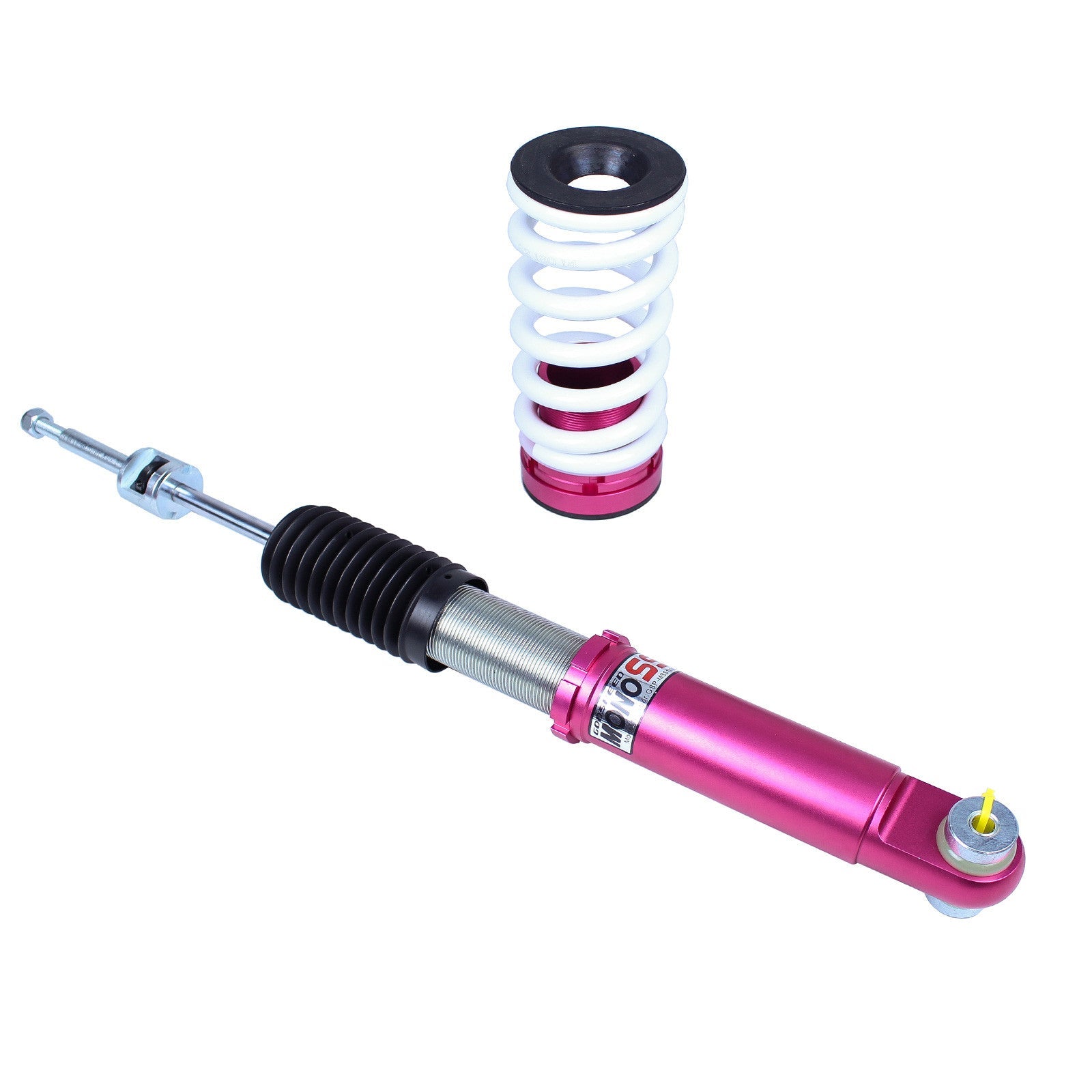

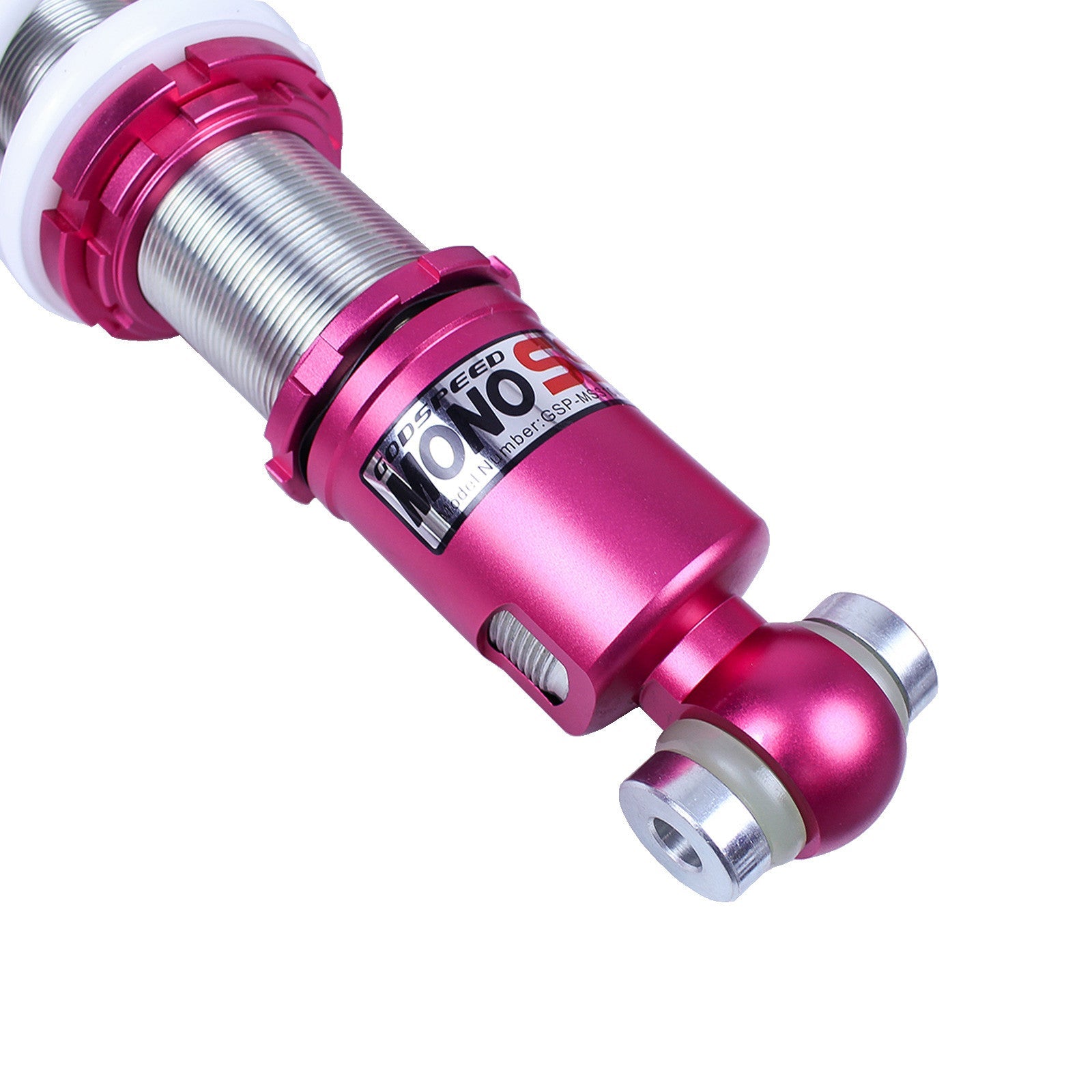

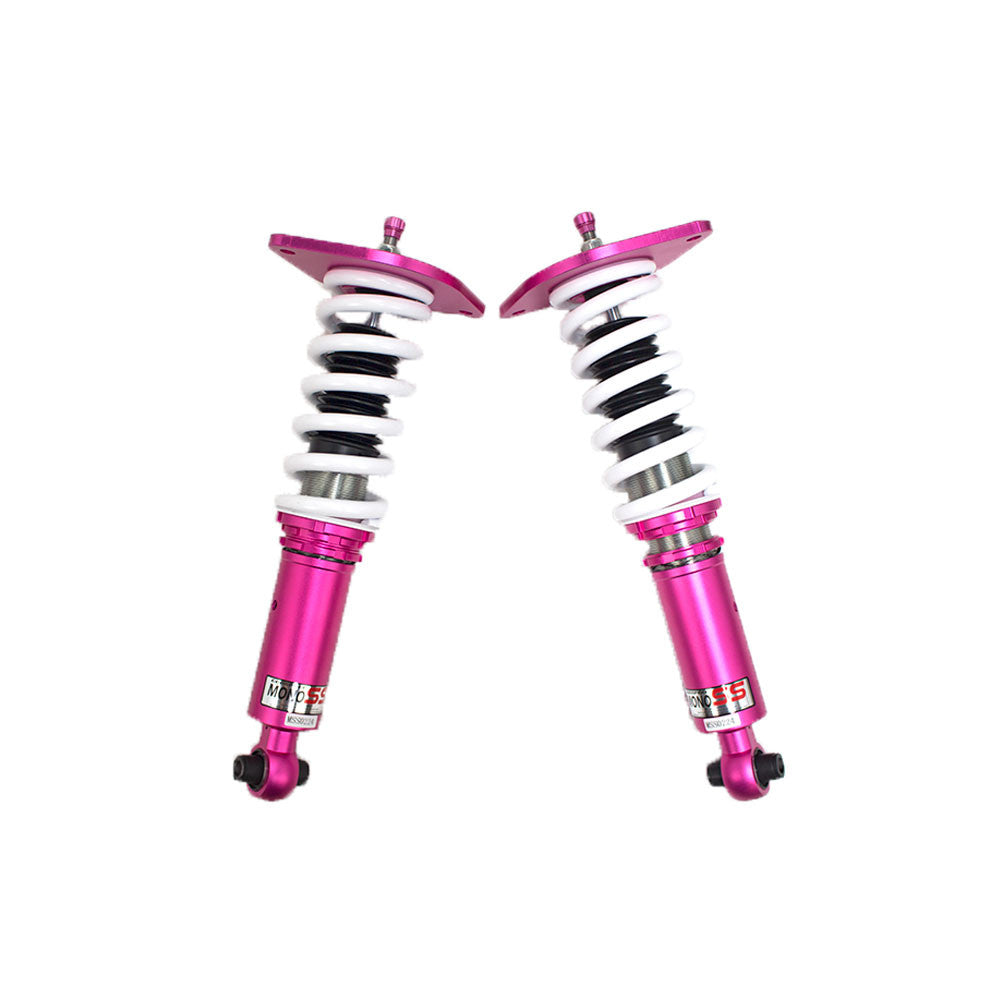

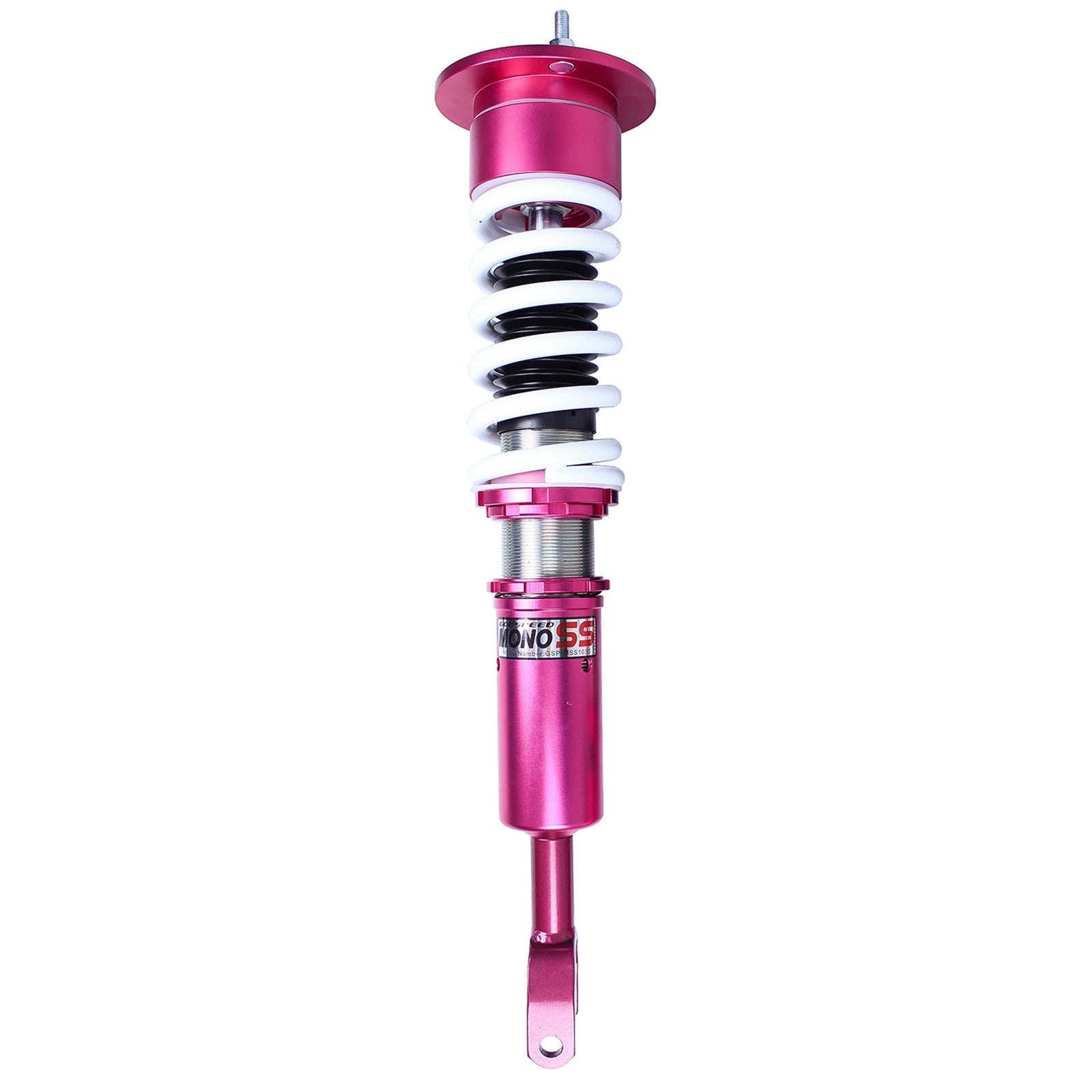

4Motion, 2000-2005, MonoSS
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 16-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 14 kg/mm (784 lbs/inch) |
| Spring Rate(Rear) | 14 kg/mm (784 lbs/inch) |
| Spring Length(Front) | 200 mm |
| Spring Length(Rear) | 200 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | Yes, Standard Type |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
FWD, 1998-2005, MAXX (Front: 10 kg/mm (560 lbs/inch) Rear: 8 kg/mm (448 lbs/inch))
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Not for vehicles with automatic self leveling control. |
|---|---|
| Damping Levels | 40-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 10 kg/mm (560 lbs/inch) |
| Spring Rate(Rear) | 8 kg/mm (448 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 200 mm |

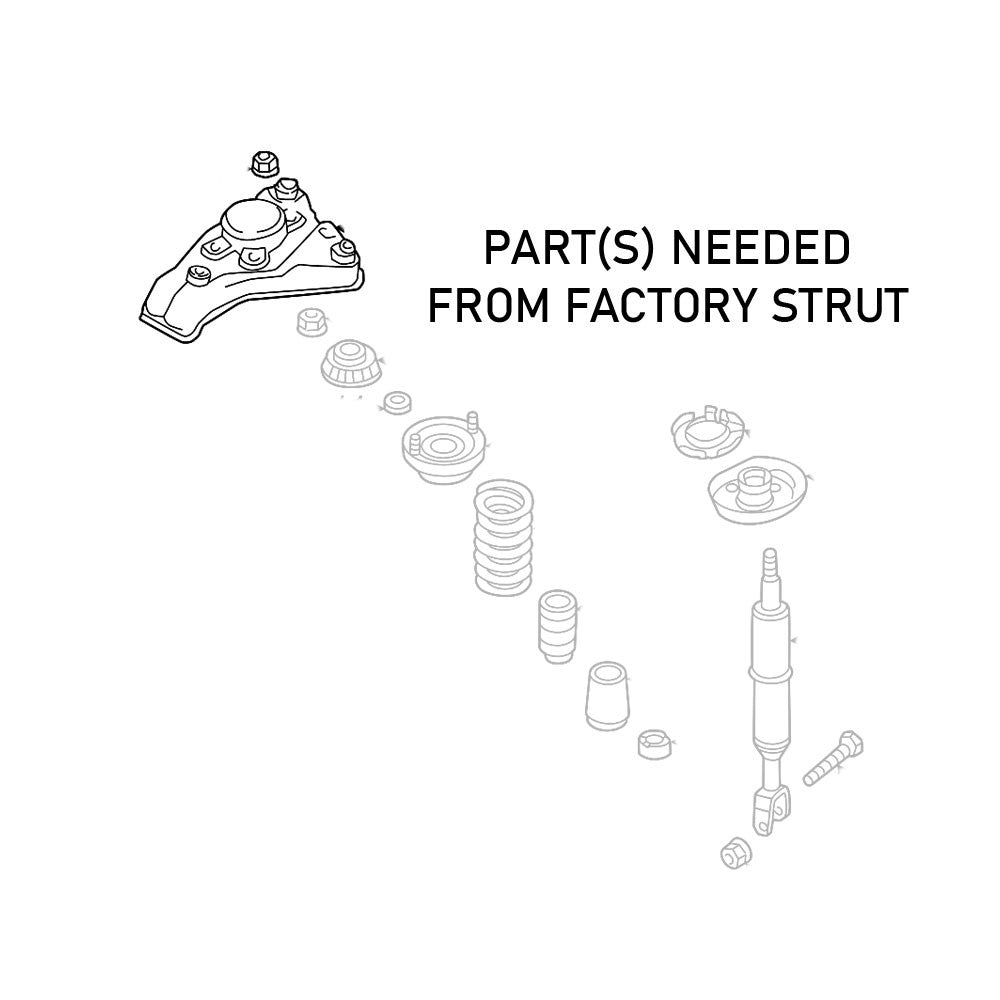

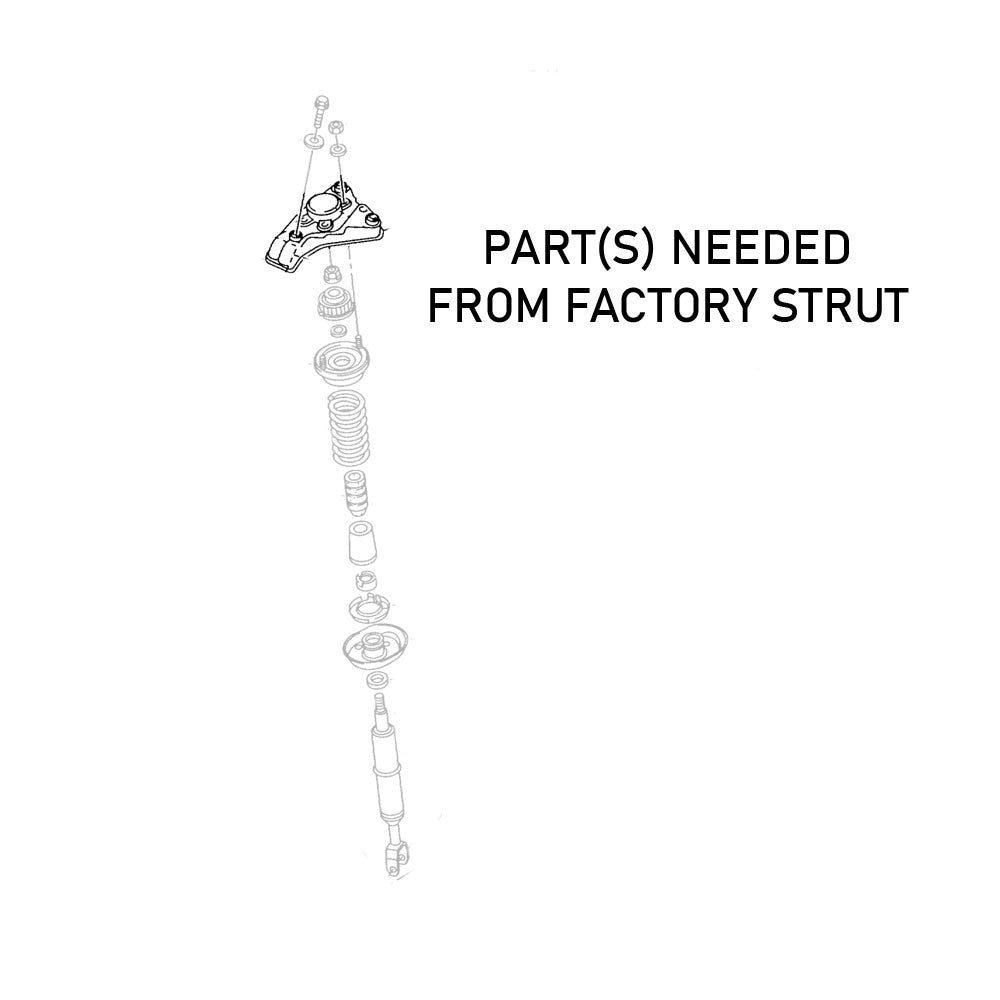

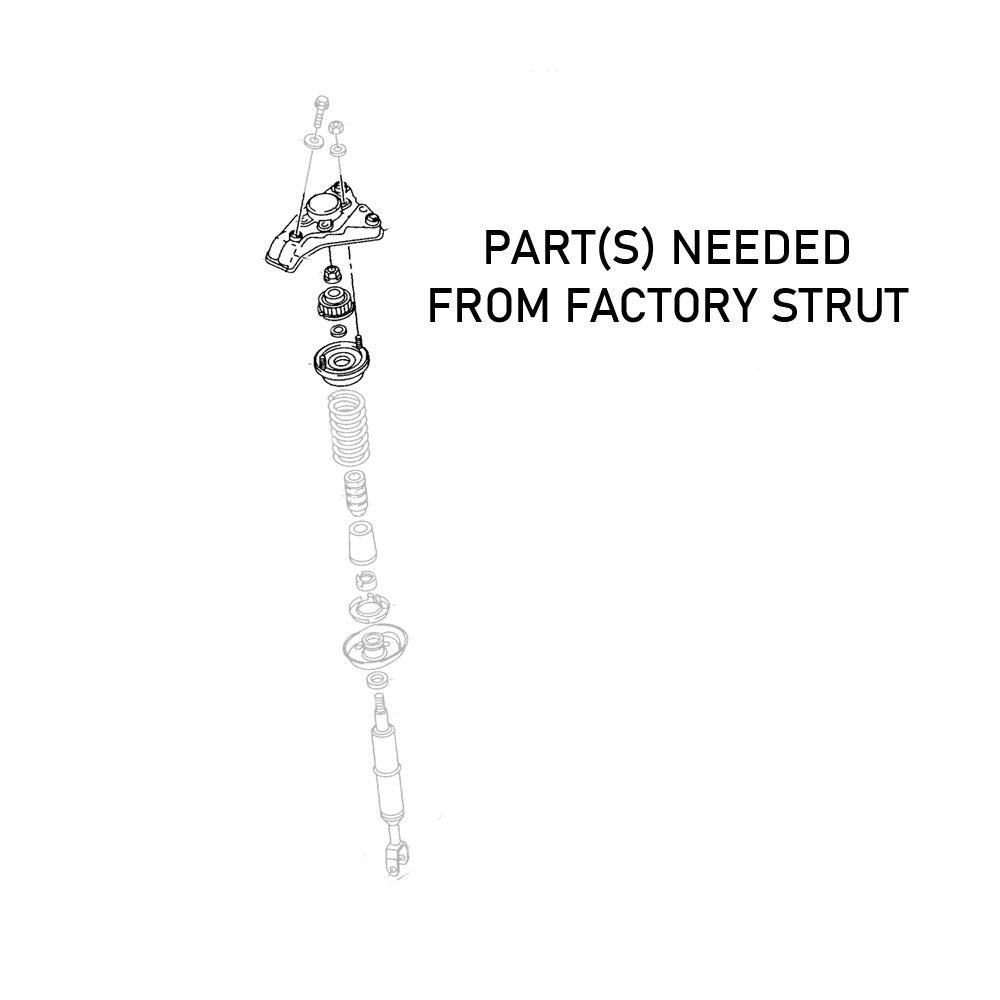

| Front Top Mount | No |
| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
FWD, 1998-2005, MonoSS (Front: 12 kg/mm (672 lbs/inch) Rear: 14 kg/mm (784 lbs/inch))
| Special Notes | Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions. |
|---|---|
| Damping Levels | 16-Level |
| Height Adjustment | Yes |
| Spring Rate(Front) | 12 kg/mm (672 lbs/inch) |
| Spring Rate(Rear) | 14 kg/mm (784 lbs/inch) |
| Spring Length(Front) | 180 mm |
| Spring Length(Rear) | 180 mm |
| Front Top Mount | Yes, Standard Type |
| Rear Top Mount | No, Reuse Factory |
| Spring Inner Diameter(Front) | 62 mm (2.44 inch) |
| Spring Inner Diameter(Rear) | 62 mm (2.44 inch) |
| Warranty Note | No |
| User Guide | Coilover User Guide |
