High Viscosity liquid Gear Micro Pump Meter Food Grade Oil Honey Milk Juice Pump Cream Transfer Gear Pump With 750W Servo Motor
Application: Metering
Boday: 316L stainless steel
Brand Name: NONE
Certification: CE
Does it include batteries: Not included
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Flow: 100L/min
Fuel: Electric
Gear: Peek
Gear shaft: 316L stainless steel
High-concerned chemical: none
Model Number: MPB1000-750W Servo Motor
Origin: China Mainland
Power (W): Electric
Power Source: Electric
Pressure: High Pressure
Seal: PTFE/FKM O-ring
Standard or Nonstandard: Standard
Structure: Gear Pump
Use: Oil
Warm reminder:
Please note or contact us if the liquid temperature is more than 70 degrees Celsius before placing an order. Thank you in advance!
High Viscosity 12000 Psi liquid Pump Meter Food Grade Oil Honey Milk Juice Pump Cream Transfer Gear Pump With 750W Servo Motor

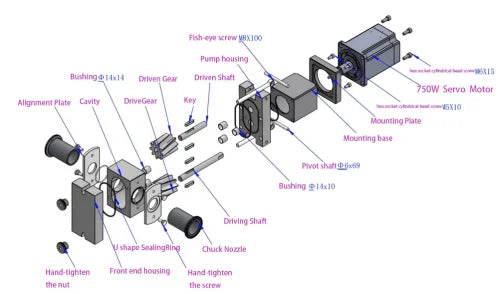

The magnet drive principle of the MPB1000 micro magnetic drive gear pump provides a completely sealed pump chamber. No pulsation, no leakage, low noise,high performance,compact size,long lifespan.To solve the working condition of 45-100L/min flow rate, 0.5-5bar differential pressure.

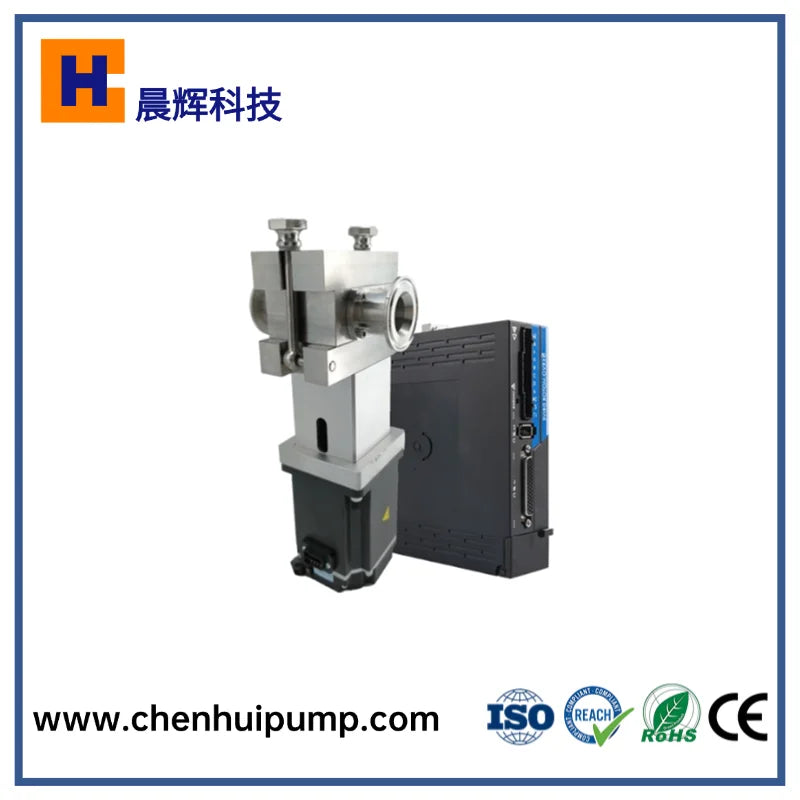

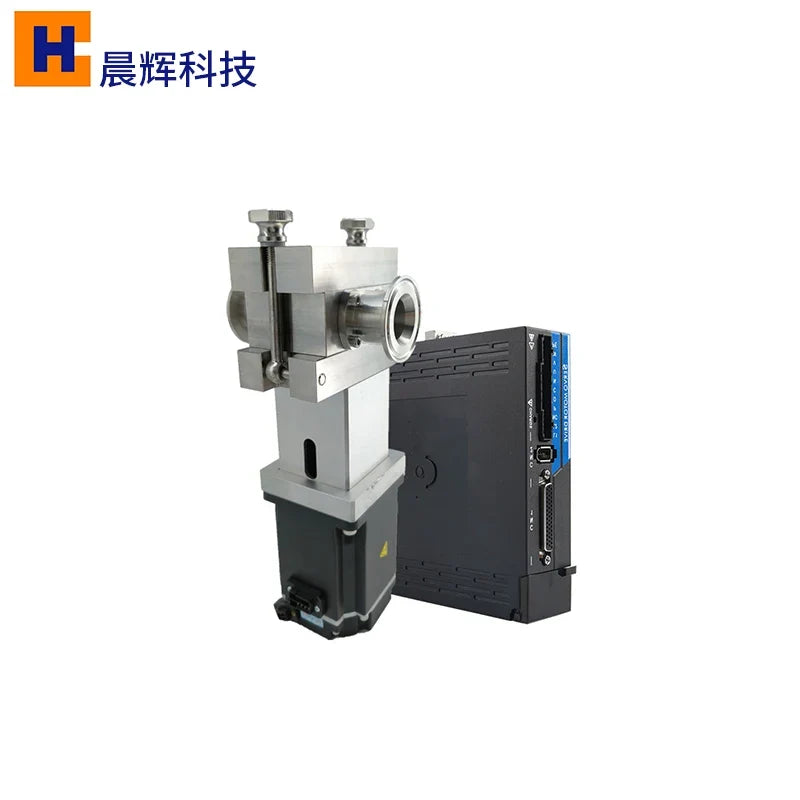

MPB1000 magnetic drive gear pump adopts AC brushless servo motor, the motor shaft end is connected with REPM outer ring magnetic circuit, i.e., the magnetic coupling principle work. With an independent controller can achieve precise control, stable operation and long lifespan. The speed and steering of the motor is controlled by an external driver, providing finer control of current, speed and position. Closed-loop feedback system provides excellent dynamic response, high torque density, and precise position control, adapting to the demands of high-speed motion with frequent starts and stops.
