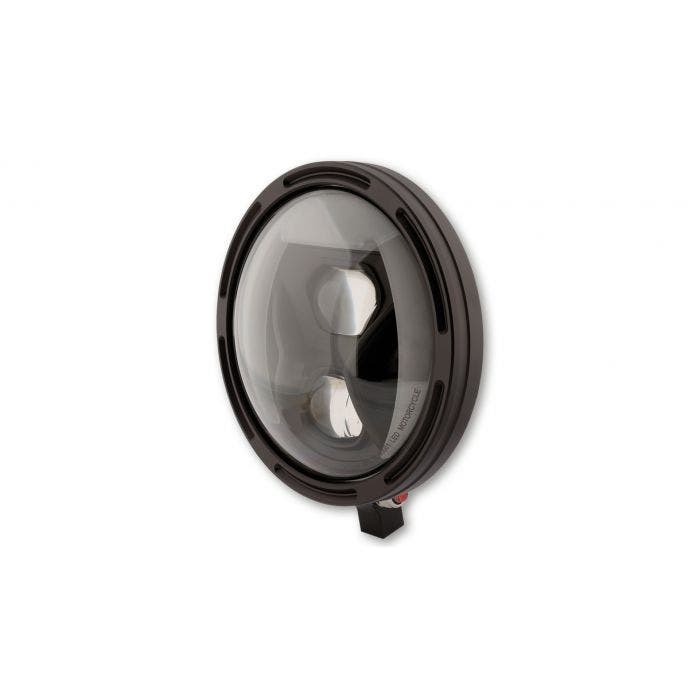

Highsider Black 7" LED Adaptive Headlight Tilt Tech R-1 Bottom Mount 223-257

The Highsider 7" LED Adaptive Headlight with cornering light, offers clear advantages over a conventional headlight.

The static cornering light activates an additional light when the motorcycle is tilted in a bend.

Due to the improved illumination you can see more of the curve and what is behind it.

The driver can better adapt to the conditions and situations and is safer on the road.

Two ellipsoidal lenses in combination with powerful LEDs turn night into day and thus combine a strong plus in safety with a polarizing unique look.

The Highsider 7″ Type 8 LED headlight makes mounting easy with the included Frame R1 headlight bucket. Available in bottom or side mounting options, this provides builders with a simple and all-in-one solution. Whether you are looking to replace for better visibility day or night or to give your bike a nicer look if you’re looking for a stylish and innovative power headlight. Thanks to modern LED lighting technology, huge advances have been made in the spotlight area. Tilt-activated adaptive cornering lights offer clear advantages over a conventional headlight. The static cornering light activates an additional light when the motorcycle is tilted in corners to better improve road illumination. Two ellipsoidal lenses in combination with powerful LEDs turn night into day and thus combine a strong plus in safety with a polarizing unique look. E-approved & DOT compliant.

Dimensions:
A diameter = 7.87″ (200) mm
GA diameter = 6.65″ (169 mm) I diameter = 6.53″ (166.5 mm) T = 2.32″ (59 mm) R = 10 mm
Total depth from glass to cooling fins: 3.89″ (99.10 mm)
