HKS R35 GT-R GT1000 Full Turbine Kit

HKS R35 GT-R GT1000 Full Turbine Kit

$10,000.00
Skip to product information
HKS R35 GT-R GT1000 Full Turbine Kit
  • HKS R35 GT-R GT1000 Full Turbine Kit
  • HKS R35 GT-R GT1000 Full Turbine Kit
HKS R35 GT-R GT1000 Full Turbine Kit

HKS R35 GT-R GT1000 Full Turbine Kit

$10,000.00

HKS is challenging for the high performance concept of HKS R35 GT series. And we have set the goal of 1000 horse power with GT1000! For the extream power and performance, the GT800 design of "symmetrical layout" has succeeded to the new GT1000.

Features:

  • GT1000 has succeeded ideal design of "symmetrical layout" of GT800. And HKS has tuned-up and newly designed in all little detail for precision, strength and heat-persistence. The new GT1000 provides effective boost control and prevents from exhaust loss.
  • For effective intake and exhaust stream, HKS has newly redesigned original suction pipe and chamber pipe for the new GT1000.
  • Our proven technology "heat-resistence cast" was employed in exhaust manifold which provides high resistance in the heat and vibration.
  • GT II is employed for wastegate of GT1000 which is very small and light and still has secure boost control.

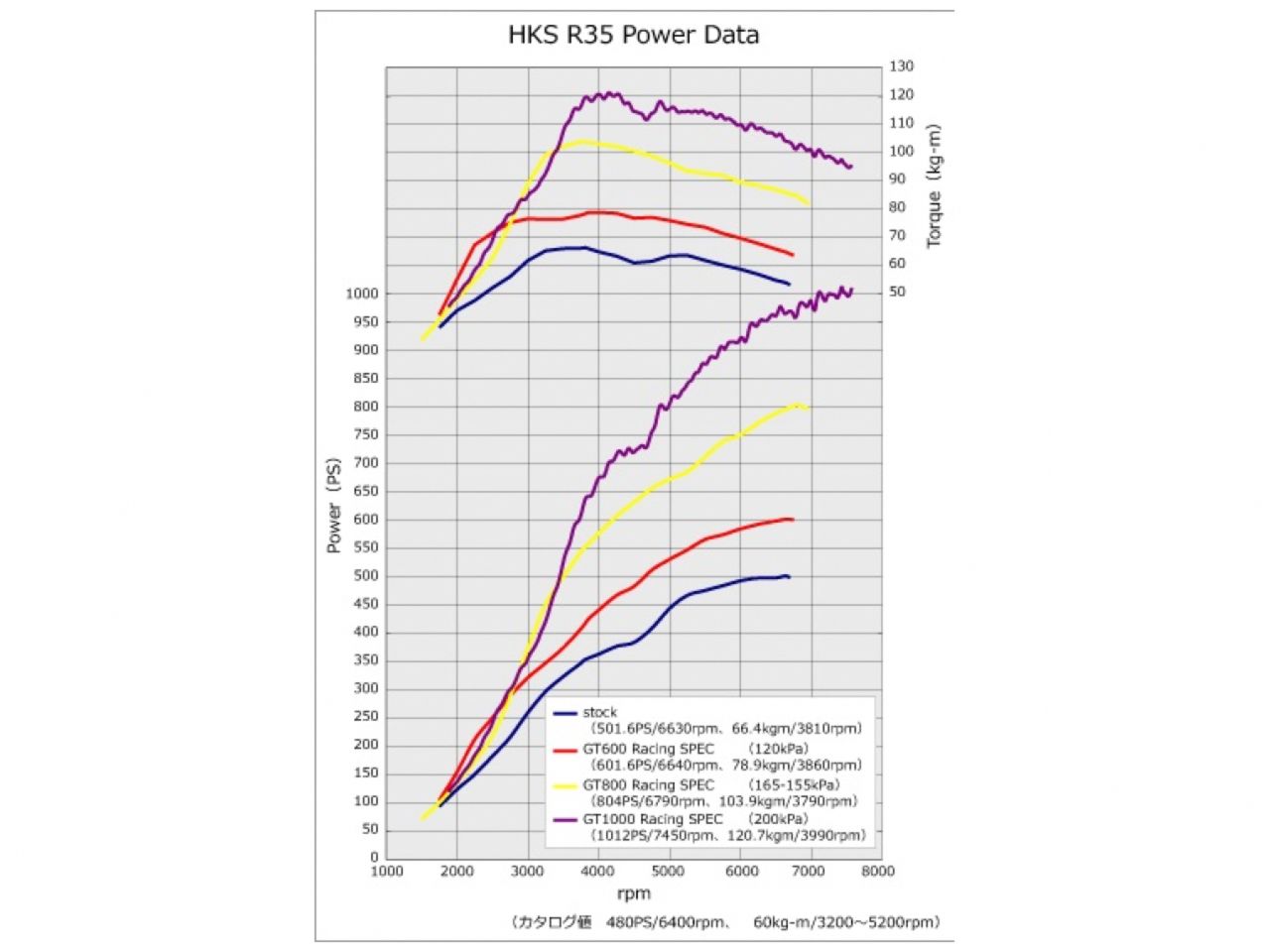

Performance:

Power Torque Boost
GT1000 Racing SPEC 1012ps/7450rpm 120.7kg-m/3990rpm 200kPa
GT800+ Racing SPEC 859ps/6820rpm 103.9kg-m/3950rpm 165-155kPa
GT800 Racing SPEC 804ps/6790rpm 98.7kg-m/3850rpm 165-155kPa

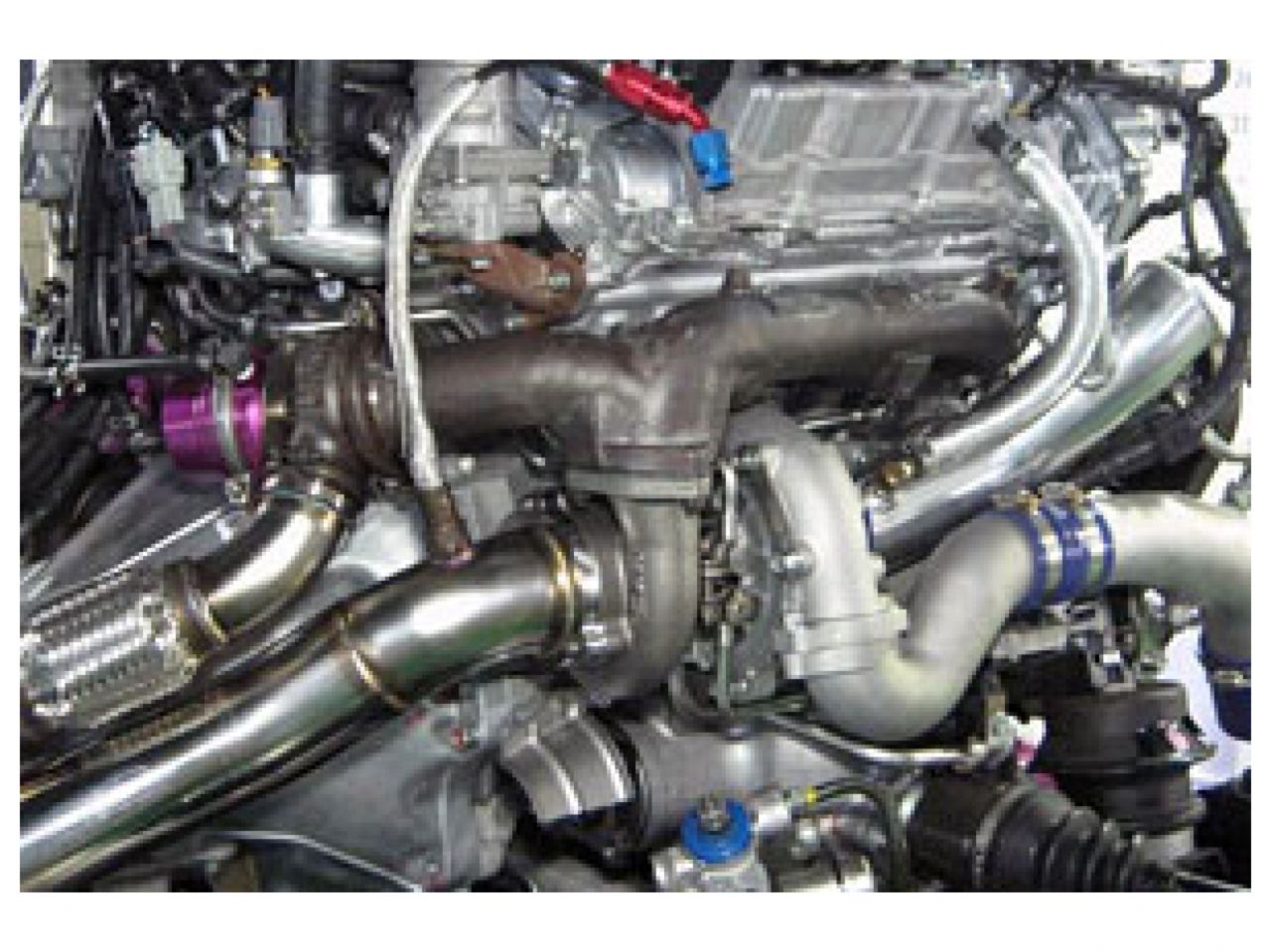

Components:

?Parts for GT1000
Exhaust Manifold Heat resistance cast about ?52 pipe
Turbine GT II 7867 Heat resistance cast (T/HSG)
Wastegate HKS GT II ?50
Front Pipe SUS304 ?70??75
Suction Pipe AL buff ?70
Other short parts
MODEL Control
device		 Power
per
turbine		 Compressor wheel Compressor housing Turbine wheel Exhaust housing
Trim Inlet
(mm)		 Outlet
(mm)		 Inlet
(mm)		 Outlet
(mm)		 A/R Trim Inlet
(mm)		 Outlet
(mm)		 Inlet
flange		 Outlet
flange		 A/R
GT II 7867/
GT II 7867R		 Wastegate 550 63 62.0 78.0 70.0 R35
only		 0.74 77 67.5 59.3 R35
only		 R35
only

0.66
Vehicle Model Engine Model Year Type Turbo Kit Turbine Size Boost Pressure
GT-R R35 VR38DETT 07/12- GT1000 FULL TURBINE KIT GT-FTK GTII 7867 & GTII 7867R  88.3kPa (0.9kgf/cm2)
