SPECIFICATIONS

Assembly Required: Yes

Brand Name: Trianglelab

Choice: yes

High-concerned chemical: None

Item Type: Extruder

Model Number: Matrix Extruder

Origin: Mainland China

semi_Choice: yes

The trianglelab has always been concerned about product quality. We are developing products and working hard to improve the quality. We will not abandon our reputation because of many cheap products on the market. It is believed that only high quality products can ensure the quality of your work and bring safety to your work.

Some of our products may be more expensive than others, but please believe in our quality and believe that you will not regret when you receive the goods.

If you want to know more. Please wait a few days. We will add more details soon.

▉About logistics description:

Because the package contains strong magnets, ordinary logistics cannot be transported. So no matter which kind of logistics you choose. We will modify the logistics you choose. The package will be transported by air transportation of special dangerous goods, or other logistics. We will ensure that your package arrives as soon as possible. Thanks for your trust.

▉Name:

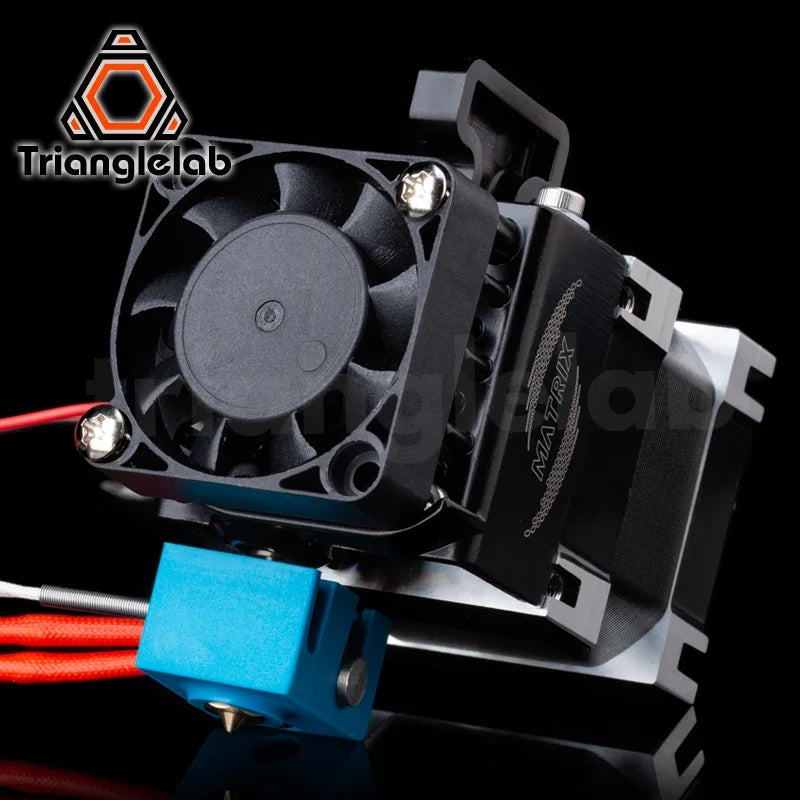

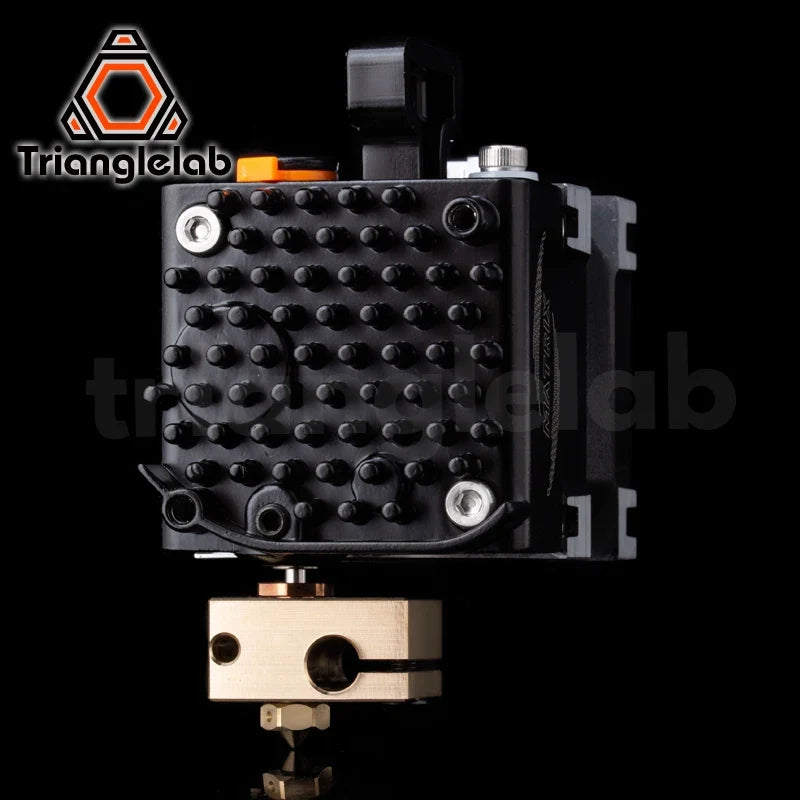

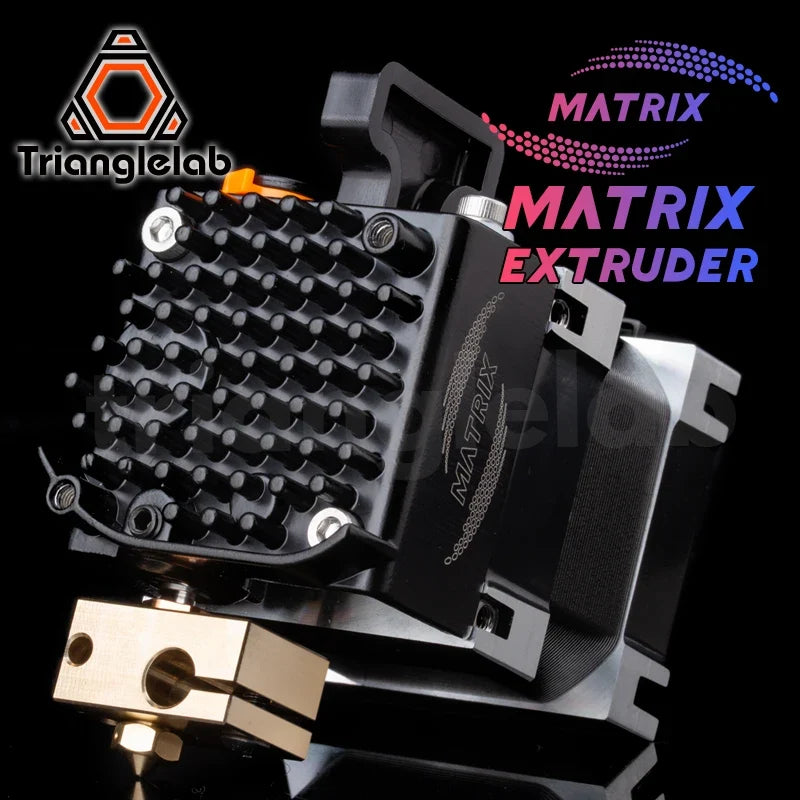

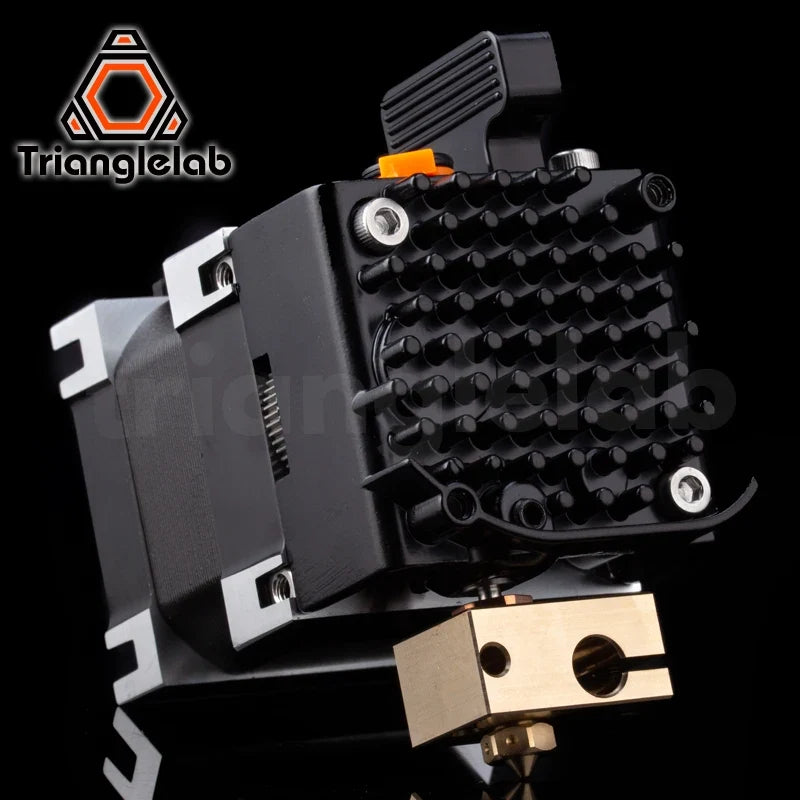

Triangle Lab - Matrix Extruder

▉Installation guide:

https://drive.google.com/drive/folders/1K_Jj4JfczDlKiNnwk-SYakOIQqm4zllD?usp=sharing

▉Highlight:

·dual drive with adjustable tension idler

·very short filament path

·thin-walled bi-metal heat breaker

·compact extrusion system

▉Compatible:

Compatible with Prusa

Compatible with Ender 3 /3 PRO/ 5

Compatible with CR-10/CR-10S

Other models can find brackets here. Search for the term HE?ER?(Sorry I have to cover this term. You should know how to search.)

https://www.thingiverse.com/

Netizens submit:

1: for Lulzbot Taz printer

https://www.thingiverse.com/thing:4686413

♥Matrix Extruder-3D printing time-lapse:

https://youtu.be/GREhHw2ynsc

◆Summary

Drive type: Dual drive with adjustable tension idler

Max printing temperature: 285°C(upgradable to 450°C)

Mass: 357g(including hotside)

Nominal steps per mm(16x): 335.4 steps per mm(further calibration required)

Motor current: 1.2A

Filament diameter and tolerances: 1.75±0.05mm

Max pushing force: 8.6kg Generic PLA 10mm/min @24V Driver

◆XYZ Dimensions

66.7x44x78.7mm

◆Hotside Compatibility

V6       Volcano      Super Volcano

Electrical

Heater power 40W                         12/24V optional

Fan 40x40x10mm DC Ball Bearing    12/24V optional

Thermistor Semitec 104NT-4-R025H42G

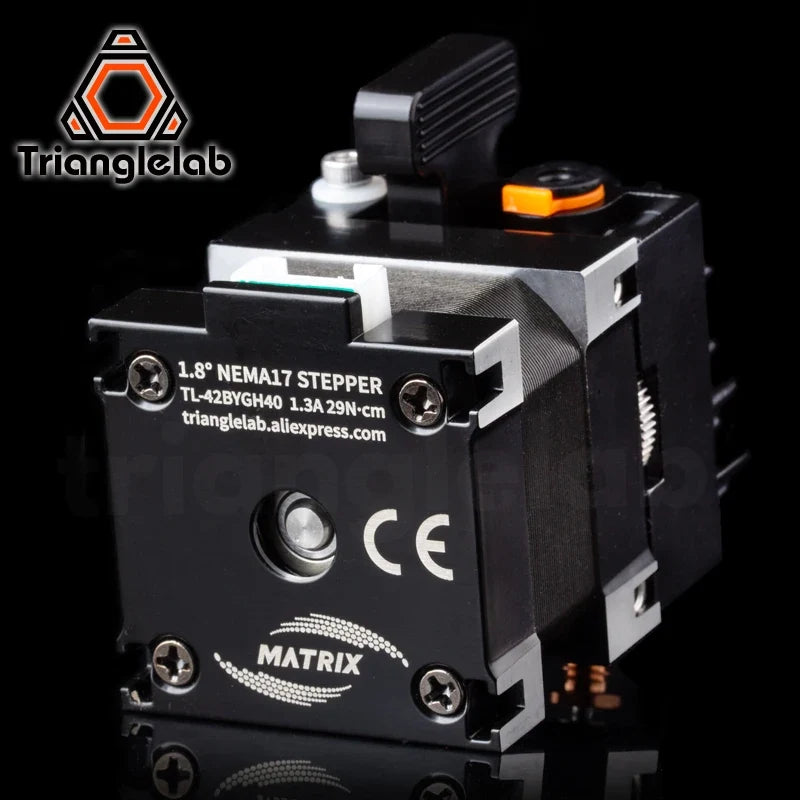

Motor

▉What's in the box:

Trianglelab -Matrix ExtruderX 1

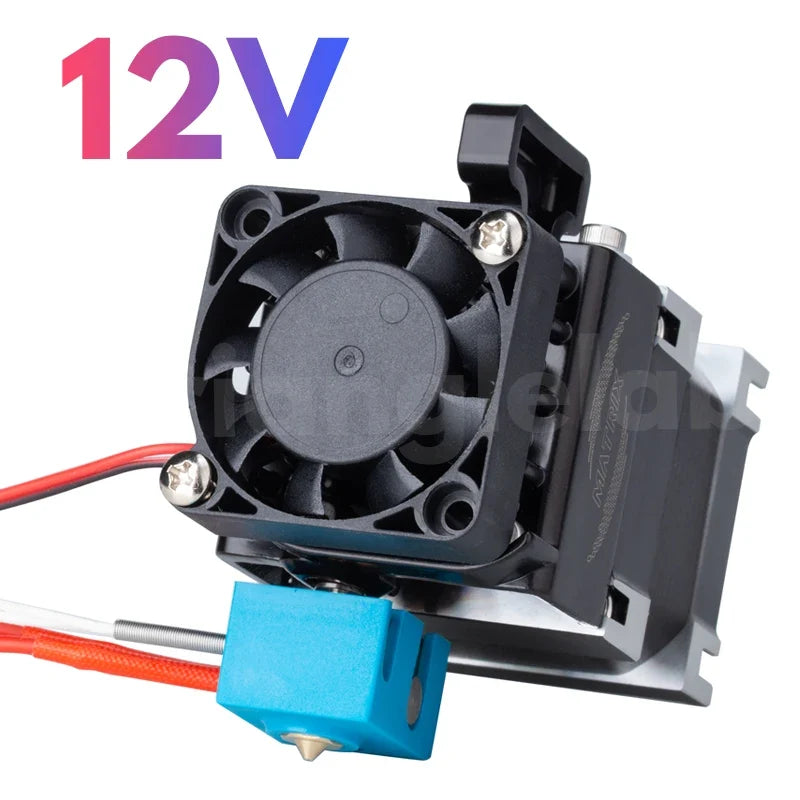

*Friendly reminder. Choose the right voltage*

▉Photo display:

▉Test machine printing effect display:

*The machine models participating in the test are:

A:Ender 3

B: CR-10S

C:X1
