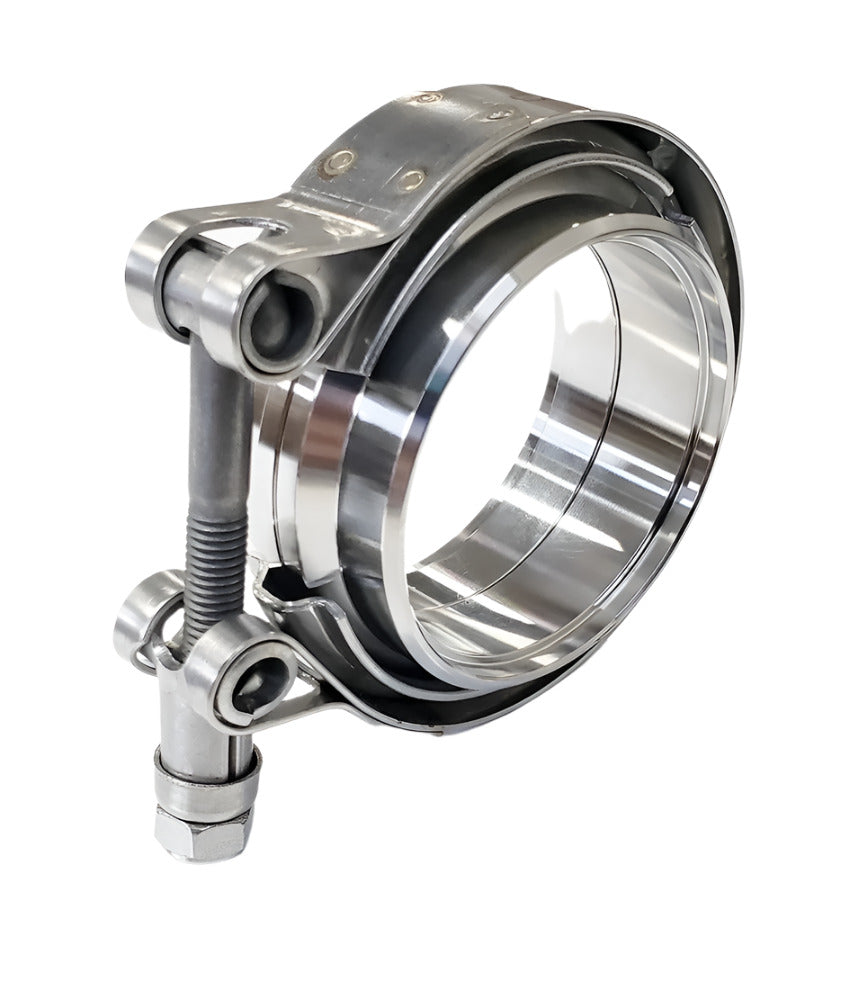

SPDZ1 3.0" V-BAND ASSEMBLY "MALE/FEMALE" 304 STAINLESS - STANDARD CLAMP
SPDZ1 V-Band Assemblies are precision CNC machined in an ISO 9001 certified facility and feature a 304 Stainless Steel Standard style V-Band Clamp and a set of "Male/Female" interlocking style V-Band Flanges. Stainless Steel V-Band Clamps and Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.
Our "Male/Female" interlocking style V-Band Flanges utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet within the clamp, makes fitment and installation a breeze even when in the tightest of areas.
The weld side of our 304 Stainless V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place with the proper alignment. The V-Band Flange's counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16ga wall thickness tubing to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.
Each V-Band Clamp Assembly includes one (1) Standard T-Bolt style V-Band Clamp, one (1) "Male" style interlocking V-Band Flange, and one (1) "Female" style interlocking V-Band Flange.
DETAILED SPECIFICATIONS:
| Flange ID | 3.000" |
| Flange OD | 3.580" |
| Individual Flange Thickness (Single Flange) | 0.750" |
| Clamp Bandwidth | 0.750" |
| Clamp Type | V-Band, Standard T-Bolt |
| Material Type | 304 Stainless |
| Provided Fasteners |
Metal Lock Nut (QTY: 1) Non-Locking Nut (QTY: 1) |
| Fastener Size (Material) | 8mm-1.5 (304 Stainless) |
