SPECIFICATIONS

Brand Name: TNCE

Certification: RoHS,FCC,CE,ce,FCC,ROHS

Choice: yes

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Origin: Mainland China

Smart home platform: Tuya

Switch Type: Touch On/Off Switch

The wiring method without neutral wire: If you only have the fire wire and no neutral wire, you need to connect the capacitor at both ends of the light bulb. For the specific method, please refer to the wiring picture in the iQ

Warranty: 1 Years

Wiring diagram Without Neutral line: 1 Gang connects L2, with the capacitor connected to both ends of the L2 bulb.2 Gang connects L1 and L3, with the capacitor connected to both ends of the L1 bulb.3 Gang connects L1, L2, and L3, with the capacitor connected to both ends of the L1 bulb.

bulb flashing: If bulb flashing, You need to connect capacitors at both ends of the bulb.

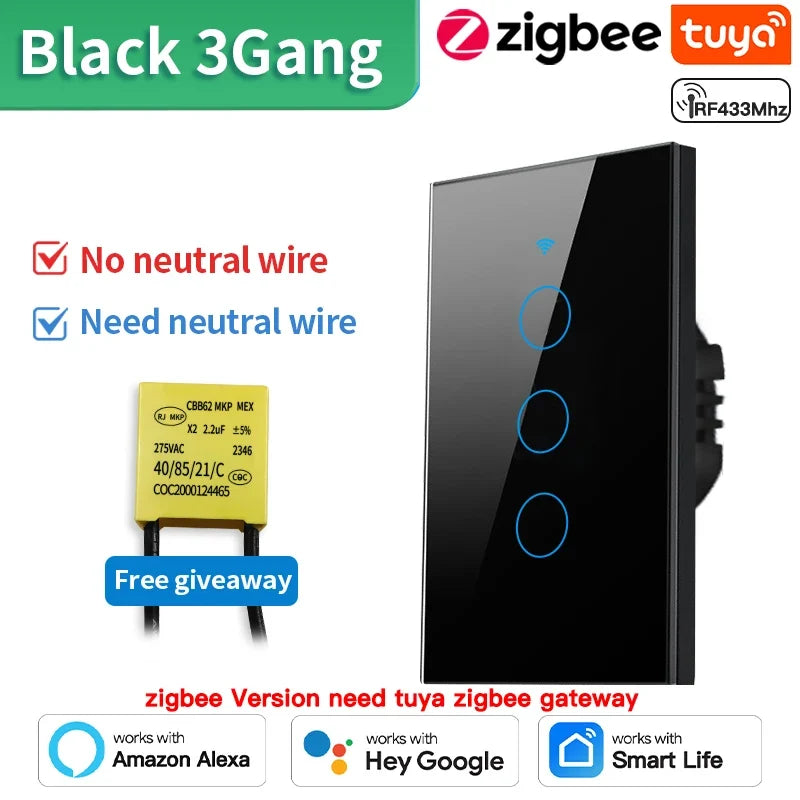

zigbee version tips: If you choose zigbee version switch, you need a tuya zigbee gateway to use it normal.

Note:

1 Gang connects L2, with the capacitor connected to both ends of the L2 bulb.

2 Gang connects L1 and L3, with the capacitor connected to both ends of the L1 bulb.

3 Gang connects L1, L2, and L3, with the capacitor connected to both ends of the L1 bulb.

Q&A:

1. Q: If the switch wiring is complete but the switch fails to function properly, or the light bulb keeps flickering, what could be the cause?

A: If you have wired the switch without connecting a neutral line *and* have not installed a capacitor across the terminals of the light bulb, both the switch and the bulb may malfunction. You simply need to connect a capacitor across the light bulb terminals to ensure the device operates normally.

2. Q: Does this panel support both wiring configurations—with a neutral line and without a neutral line?

A: Both methods are supported. If a neutral line is available, you may wire it in the standard configuration; if no neutral line is present, you must connect a capacitor across the light bulb terminals. Please refer to the wiring diagram below for specific connection schemes.

3. Q: If the touch switch on the panel fails to turn on, yet the light can still be controlled normally via the mobile app, how should I resolve this?

A: Please remove the glass panel and check whether the back housing has become deformed during installation and mounting. If the back housing is indeed deformed, please slightly loosen the mounting screws.

Once the screws are loosened, the back housing should automatically spring back to its original position. After the back housing has returned to its normal state, reattach the glass panel; the switch should then resume normal operation.

4. Q: Is it possible for two separate switches to control a single light bulb simultaneously?

A: Yes, it is possible. You can configure a "multi-control association" within the app to allow multiple switches to control a single light bulb in tandem. Specific wiring and configuration instructions are provided in the images below.

5.Q:What should I pay attention to when buying the Zigbee version of the switch?

A: First, when purchasing, you need to look for the option with the word “zigbee” or the second option with the word “zigbee Version”. If there is no “zigbee” or the second option with the word “zigbee version”, the default is the WIFI version.Second,If you buy the zigbee version of the switch, you need a tuya zigbee gateway to make the switch work properly. This gateway needs to be purchased extra.

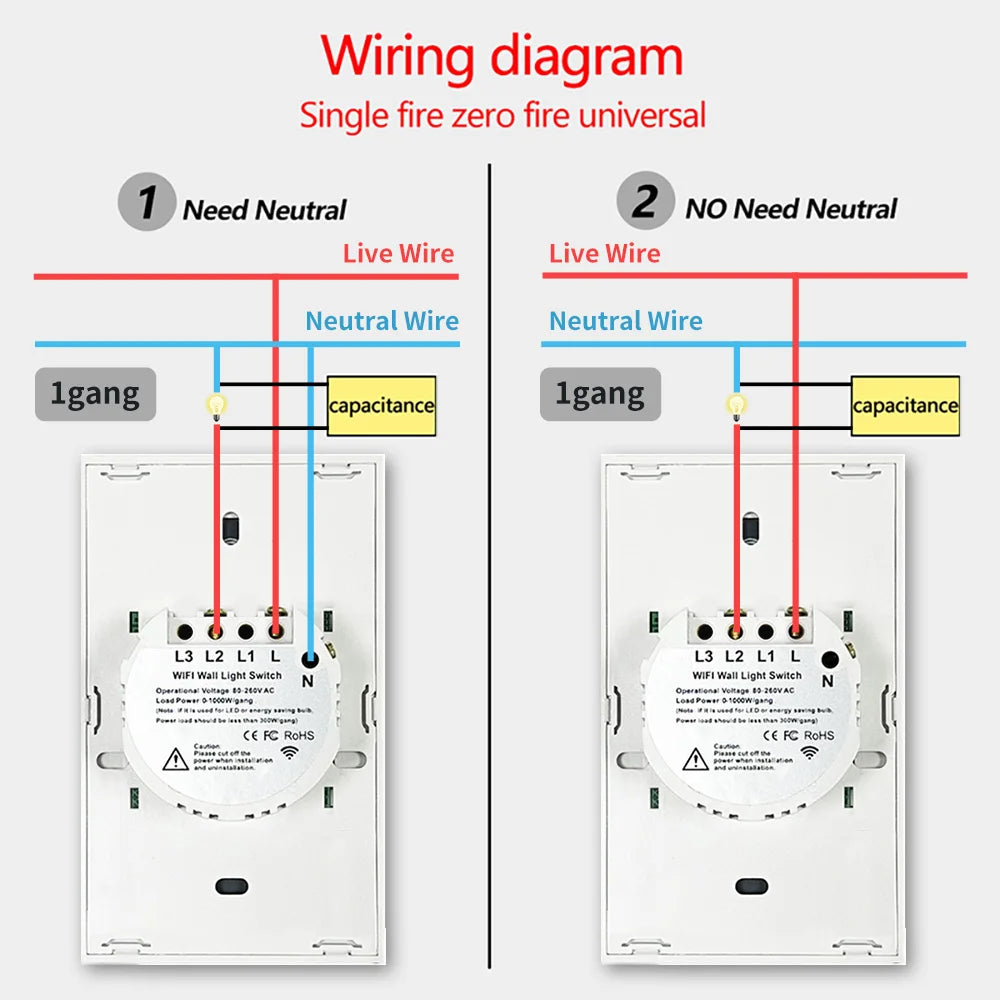

Two wiring methods (with neutral wire, without neutral wire)

First, you need to connect the bulb included in the package to both ends.

If there is a neutral wire, you need to connect the live wire (L), the neutral wire (N), and the bulb wire.

If there is no neutral wire, you need to connect the live wire (L) and the bulb wire.

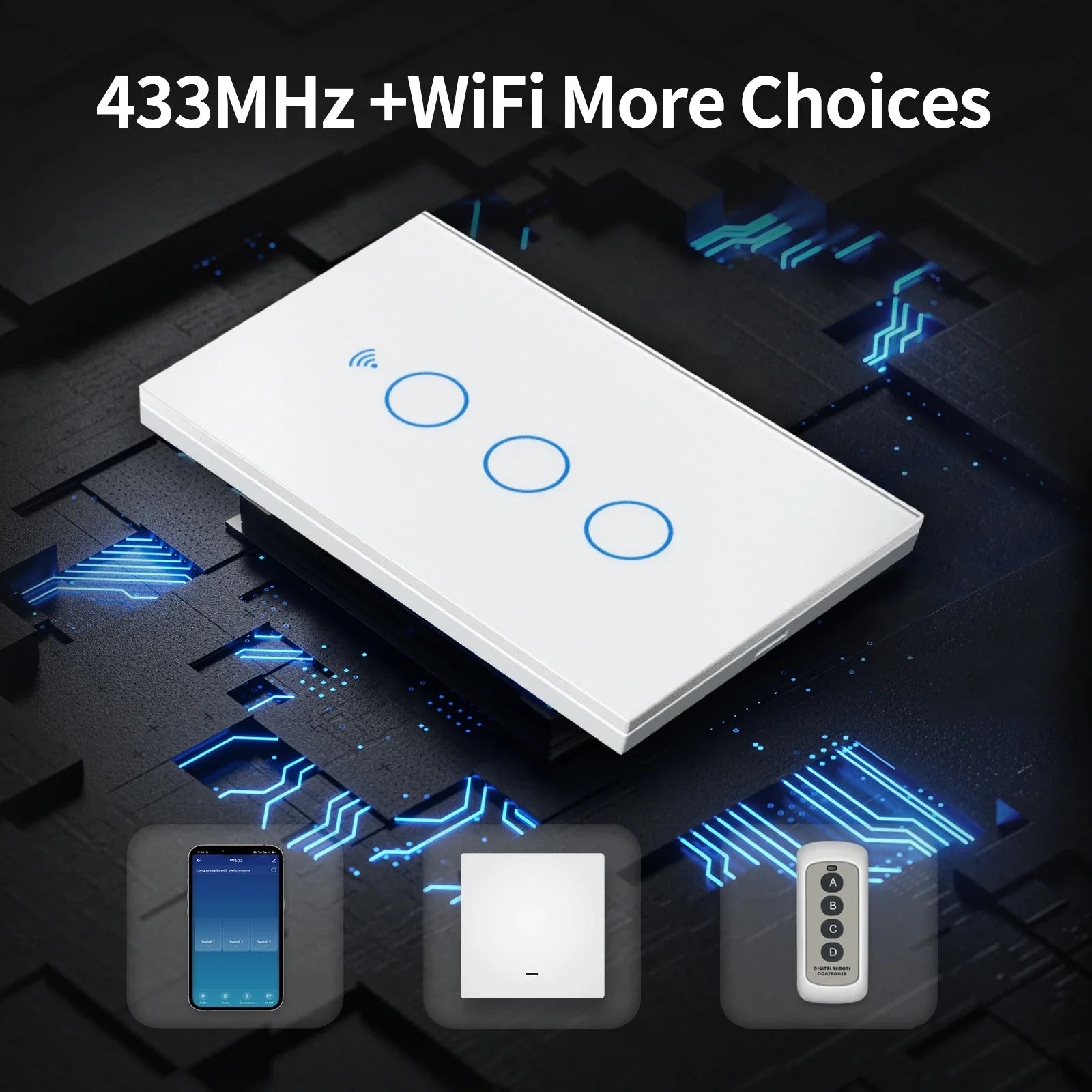

WiFi+Bluetooth +RF433 More Choices
Bluetooth can connect your phone faster.You can control the switch using a 433-enabled product or a wireless network.

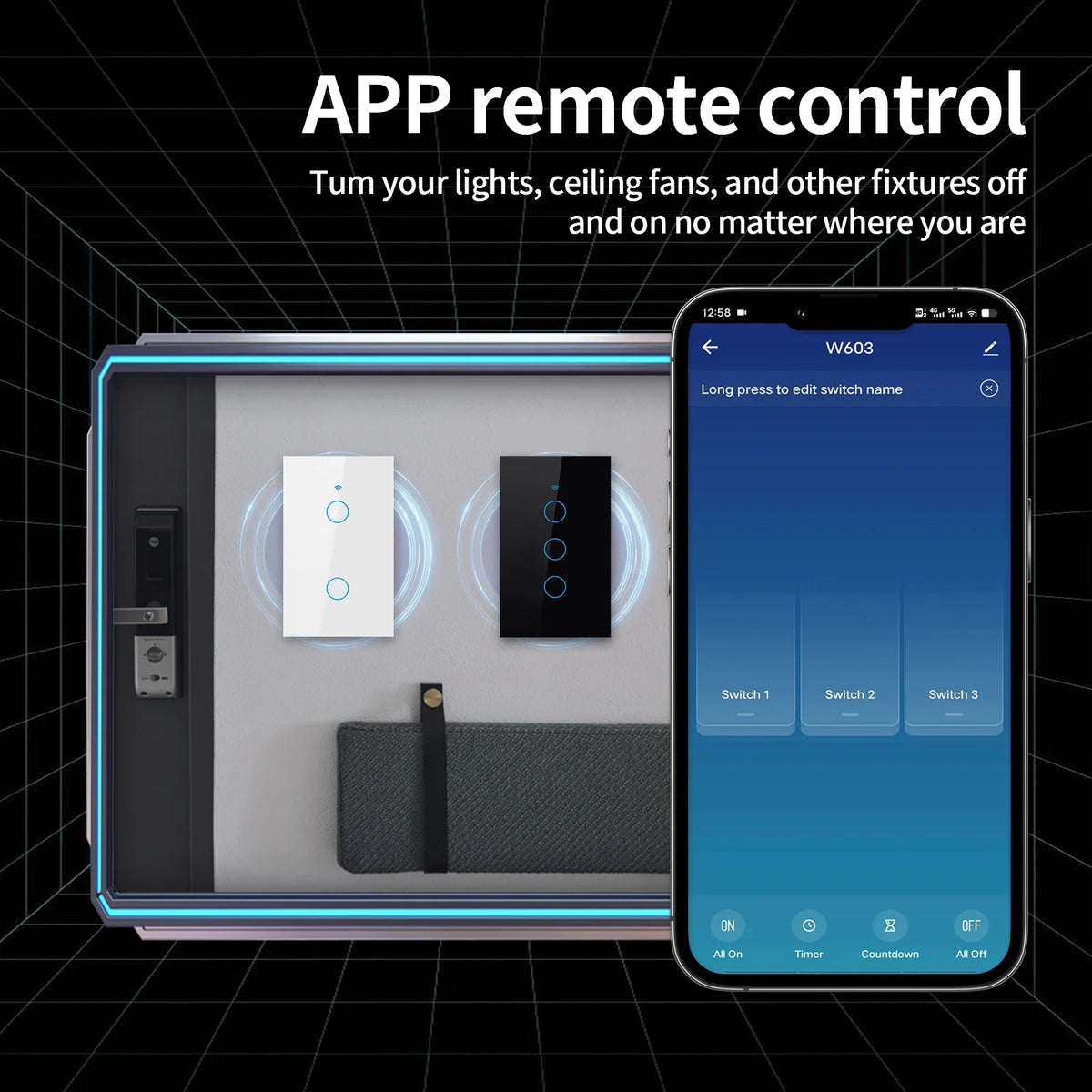

APP remote control
The user can use a smartphone to remotely control the home electronics remotely anytime, anywhere as long as the phone has 2G / 3G / WIFI
network compatible with iOS and Android operating system with SmartLife and Tuya
Alexa and Google Home Control
Compatible with Alexa (Echo / Dot / Dot / Tap), Google Assistant,. Flight ticket counter with Alexa or Google Home
to turn your lights on or off with your voice, No hub required

Timing
The smart switch is automatically turned on and off at a given time through the timer function. Choose the time you want to wake up,
automatically open the light, so you can easily enter the day; choose the time you want to close the light.

Share
The control switch can be shared with family members.

Group control

After you make simple settings in the app, you can realize multi-control association or group control.
