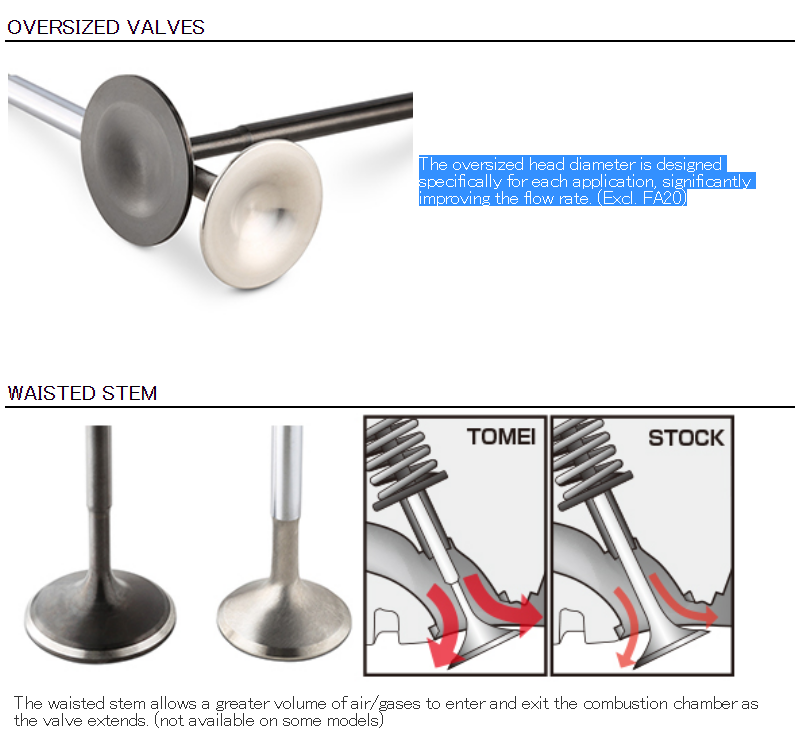

OVERSIZED VALVES

  • The oversized head diameter is designed specifically for each application, significantly improving the flow rate.

WAISTED STEM

  • The waisted stem allows a greater volume of air/gases to enter and exit the combustion chamber as the valve extends.

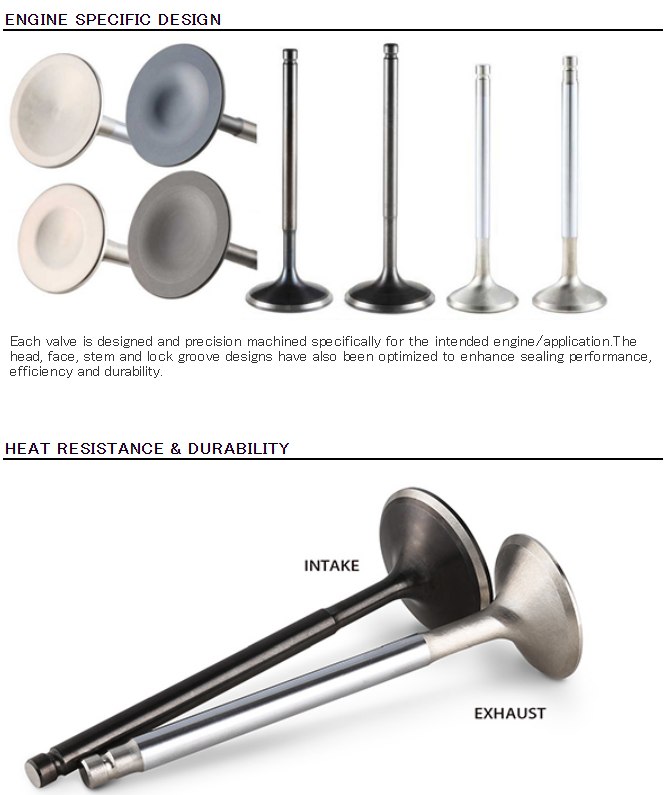

ENGINE SPECIFIC DESIGN

  • Each valve is designed and precision machined specifically for the intended engine/application.The head, face, stem and lock groove designs have also been optimized to enhance sealing performance, efficiency and durability.

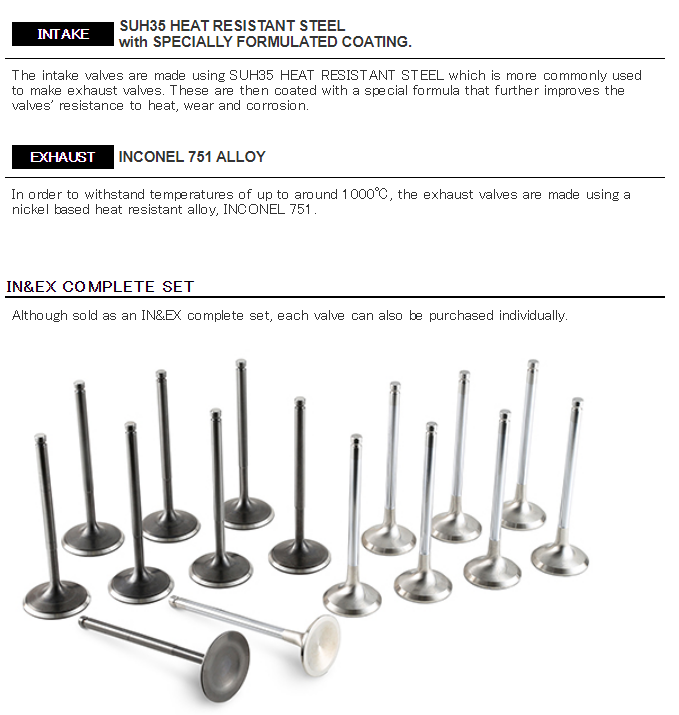

HEAT RESISTANCE & DURABILITY

" INTAKE - SUH35 HEAT RESISTANT STEEL with SPECIALLY FORMULATED COATING.

- The intake valves are made using SUH35 HEAT RESISTANT STEEL which is more commonly used to make exhaust valves. These are then coated with a special formula that further improves the valves' resistance to heat, wear and corrosion.

" EXHAUST - INCONEL 751 ALLOY

- In order to withstand temperatures of up to around 1000?, the exhaust valves are made using a nickel based heat resistant alloy, INCONEL 751.

IN&EX COMPLETE SET

Although sold as an IN&EX complete set, each valve can also be purchased individually.

APPLICATION IN/EX ` a b SET
PART NO.		 EACH
PART NO.
HEAD STEM LENGTH
DIA. DIA. (mm)
(mm) (mm)
VR38DETT IN 38.15 [+1.0] 5.96 95 TA303A-NS01A TA303D-NS01A
EX 33.15 [+1.0] 5.95 92 TA303E-NS01A
VQ35DE IN 38.15 [+1.0] 5.96 96.6 TA303A-NS04A TA303D-NS04A
EX 32.35 [+1.0] 5.97 94 TA303E-NS04A

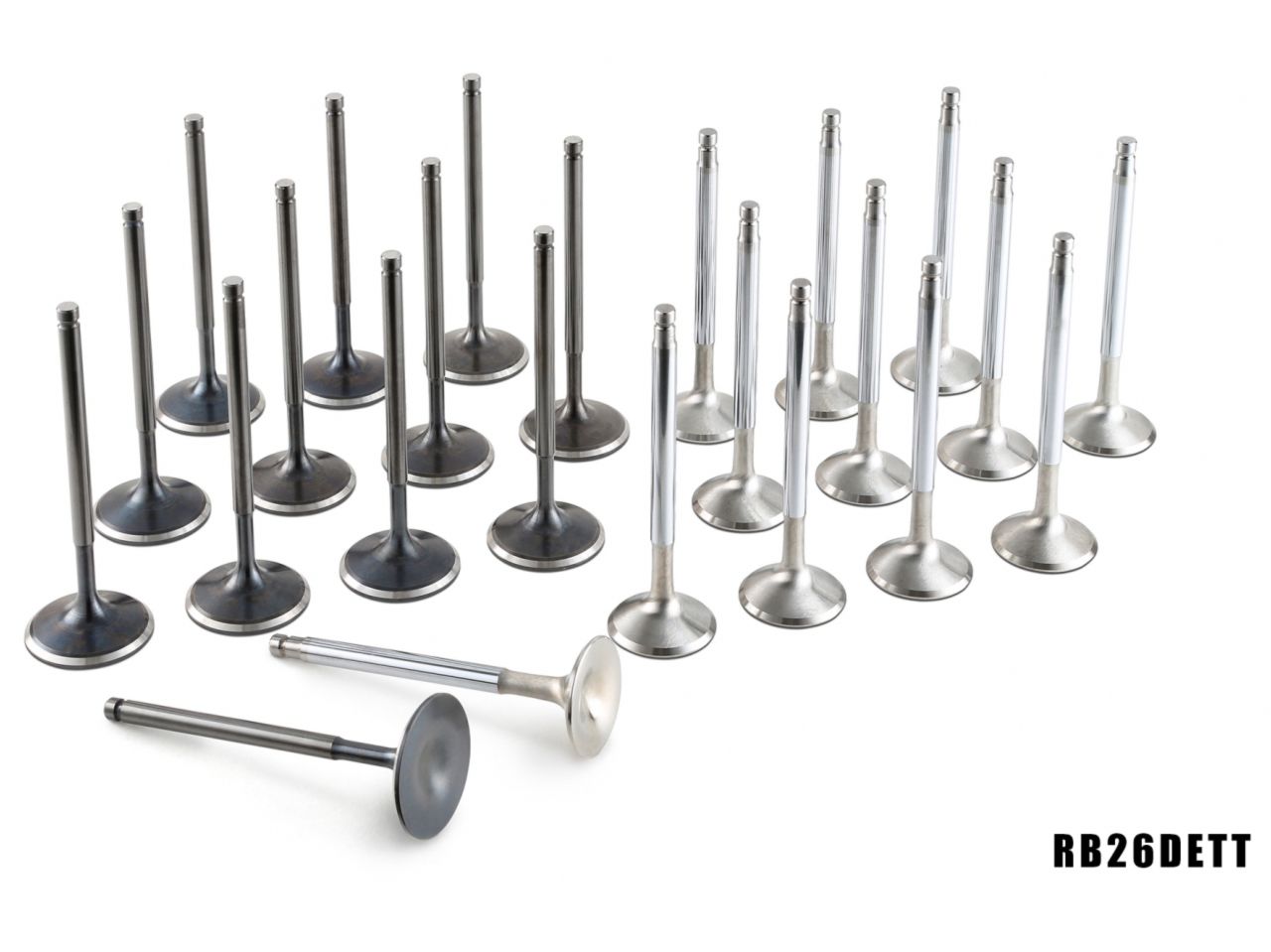

RB26DETT IN 35.65 [+1.0] 5.97 102.3 TA303A-NS05A TA303D-NS05A
EX 31.15 [+1.0] 6.94 101.2 TA303E-NS05A
SR20DET (Excl. RNN14) IN 35.15 [+1.0] 5.97 101.4 TA303A-NS08A TA303D-NS08A
EX 31.15 [+1.0] 6.94 102.4 TA303E-NS08A
VG30DETT IN 34.50 [+0.5] 5.97 103.15 TA303A-NS10A TA303D-NS10A
EX 30.00 [+0.5] 5.97 103.7 TA303E-NS10A
KA24DE
Discontinued		 IN 37.10 [+0.5] 6.97 101.32 TA303A-NS16A TA303D-NS16A
EX 32.00 [+0.7] 6.94 99 TA303E-NS16A
2JZ-G(T)E IN 34.50 [+1.0] 5.98 98.55 TA303A-TY03A TA303D-TY03A
EX 30.00 [+1.0] 5.97 99.1 TA303E-TY03A
4B11 IN 36.00 [+1.0] 5.47 113.25 TA303A-MT02A TA303D-MT02A
EX 30.00 [+1.0] 5.46 105.9 TA303E-MT02A
4G63 IN 35.00 [+1.0] 6.57 109.6 TA303A-MT01A TA303D-MT01A
EX 31.50 [+1.0] 6.54 109.6 TA303E-MT01A
EJ20/25 TURBO IN 37.00 [+1.0] 5.96 104.35 TA303A-SB01A TA303D-SB01A
EX 33.00 [+1.0] 5.96 104.7 TA303E-SB01A
FA20 (~2013) IN 35.00 [STD] 5.46 103.3 TA303A-SB03A TA303D-SB03A
EX 29.00 [STD] 5.45 95.15 TA303E-SB03A
B16A/B17A/ B18C IN 34.00 [+1.0] 5.48 102.5 TA303A-HN03A TA303D-HN03A
EX 28.50 [+0.5] 5.45 102.5 TA303E-HN03A
K20/K24 IN 36.00 [+1.0] 5.48 108.85 TA303A-HN01A TA303D-HN01A
EX 30.50 [+0.5] 5.45 108.65 TA303E-HN01A


Vehicle Fitments:

Year Make Model Submodel
1991 - 1998 Nissan 240SX LE
1989 - 1998 Nissan 240SX SE, Base
1989 - 1990 Nissan 240SX XE
